To return the pattern position to the center of the
screen
In the <Position> group, press [Center].
To move the pattern from its current position (set
by Positioner) to the center of the screen during
the course of a transition
In the <Position> group, press [Auto Center], turning it on.

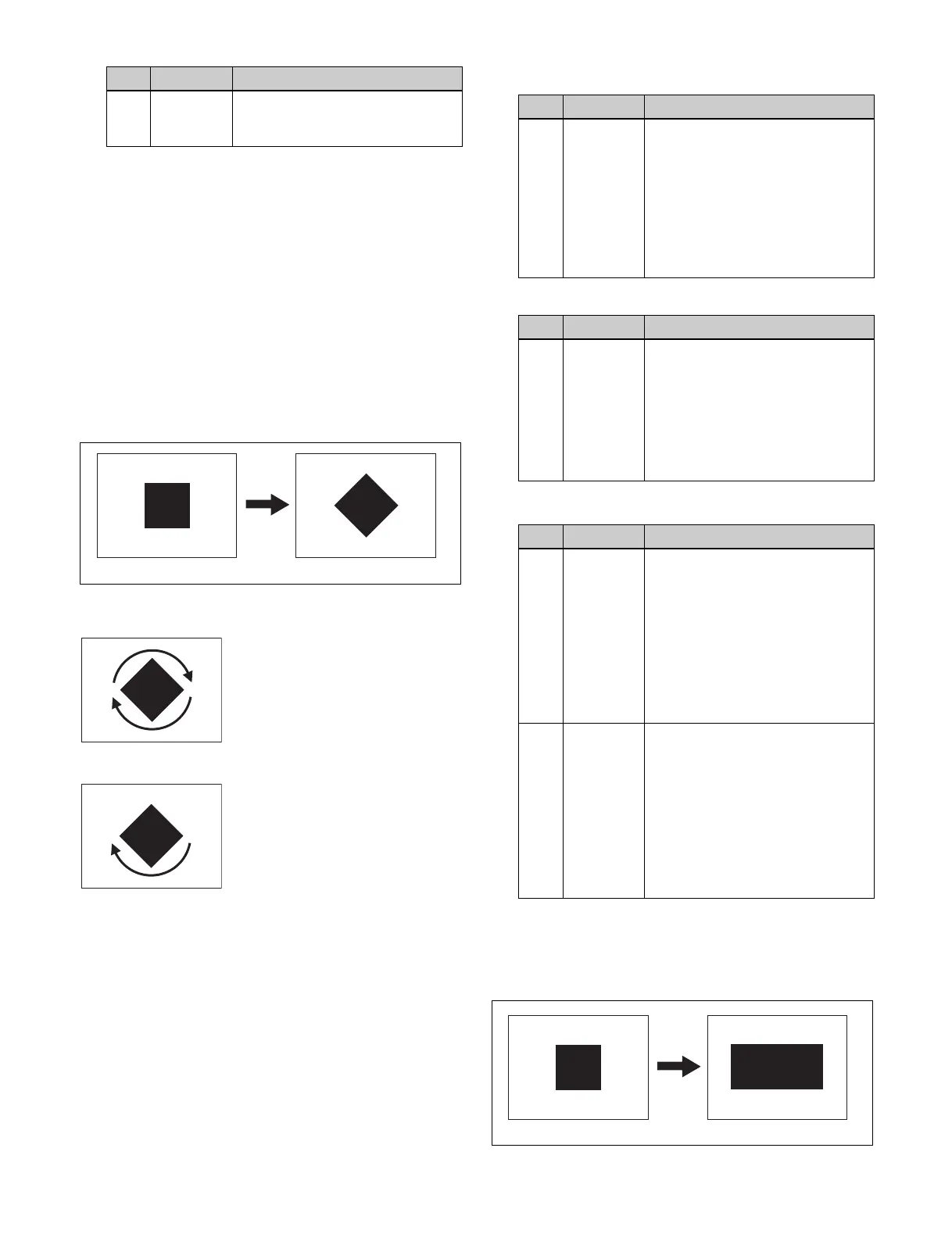

Rotating the wipe pattern (Rotation)
You can rotate a pattern.
Angle
This executes a wipe with the pattern at a fixed angle.
1 Open the M/E-1 >Wipe >Main Modify menu (1155).
2 In the <Rotation> group, select the rotation type.
3 Depending on the selection in step 2, set the following
parameters.
When [Angle] is selected
When [Speed] is selected
When [Magnitude] is selected
Setting the aspect ratio of a wipe pattern
(Aspect)
You can freely change the aspect ratio of the pattern.
2 Position V Vertical position
• Negative values move down.
• Positive values move up.
Speed
This rotates a wipe pattern at a
fixed specified speed during a
transition.
Magnitude
This rotates a wipe pattern rotates
through the specified angle in a
single transition.
No. Parameter Adjustment
Angle disabled
Angle enabled
No. Parameter Adjustment
1 Angle Rotation angle of pattern
• A value of –100.00 corresponds
to a rotation of one turn
counterclockwise.
• A value of +100.00 corresponds
to a rotation of one turn
clockwise.
• A value of 0.00 corresponds to
no rotation.
No. Parameter Adjustment
1 Speed Rotation speed of pattern
• A value of –100.00 corresponds
to 1 rpm counterclockwise
rotation.
• A value of +100.00 corresponds
to 1 rpm clockwise rotation.
• A value of 0.00 corresponds to
pause.
No. Parameter Adjustment
1 Angle Angle of pattern at start of
transition
• A value of –100.00 corresponds
to a rotation of one turn
counterclockwise.
• A value of +100.00 corresponds
to a rotation of one turn
clockwise.
• A value of 0.00 corresponds to
no rotation.
2 Magnitude Angle of rotation through course of
transition
• A value of –200.00 corresponds
to a rotation of two turns
counterclockwise.
• A value of +200.00 corresponds
to a rotation of two turns
clockwise.
• A value of 0.00 corresponds to
no rotation.
Aspect disabled Aspect enabled
