Sony NSX-40GT1 Service Manual

NSX-24GT1/32GT1/40GT1/46GT1 8
Components not identied by a part number or
description are not stocked because they are seldom
required for routine service.
The component parts of an assembly are indicated by the
reference numbers in the far right column of the parts list
and within the dotted lines of the diagram.
*
Items marked with an asterisk are not stocked since
they are seldom required for routine service. Expect
some delay when ordering these components.
NOTE: The components identied by shading
and
!
mark are critical for safety. Replace only
with part number specied.
NOTE: The components identied by a red outline and a mark contain
condential information. Specic instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
SEC 1. DISASSEMBLY/PART NUMBER INFORMATION

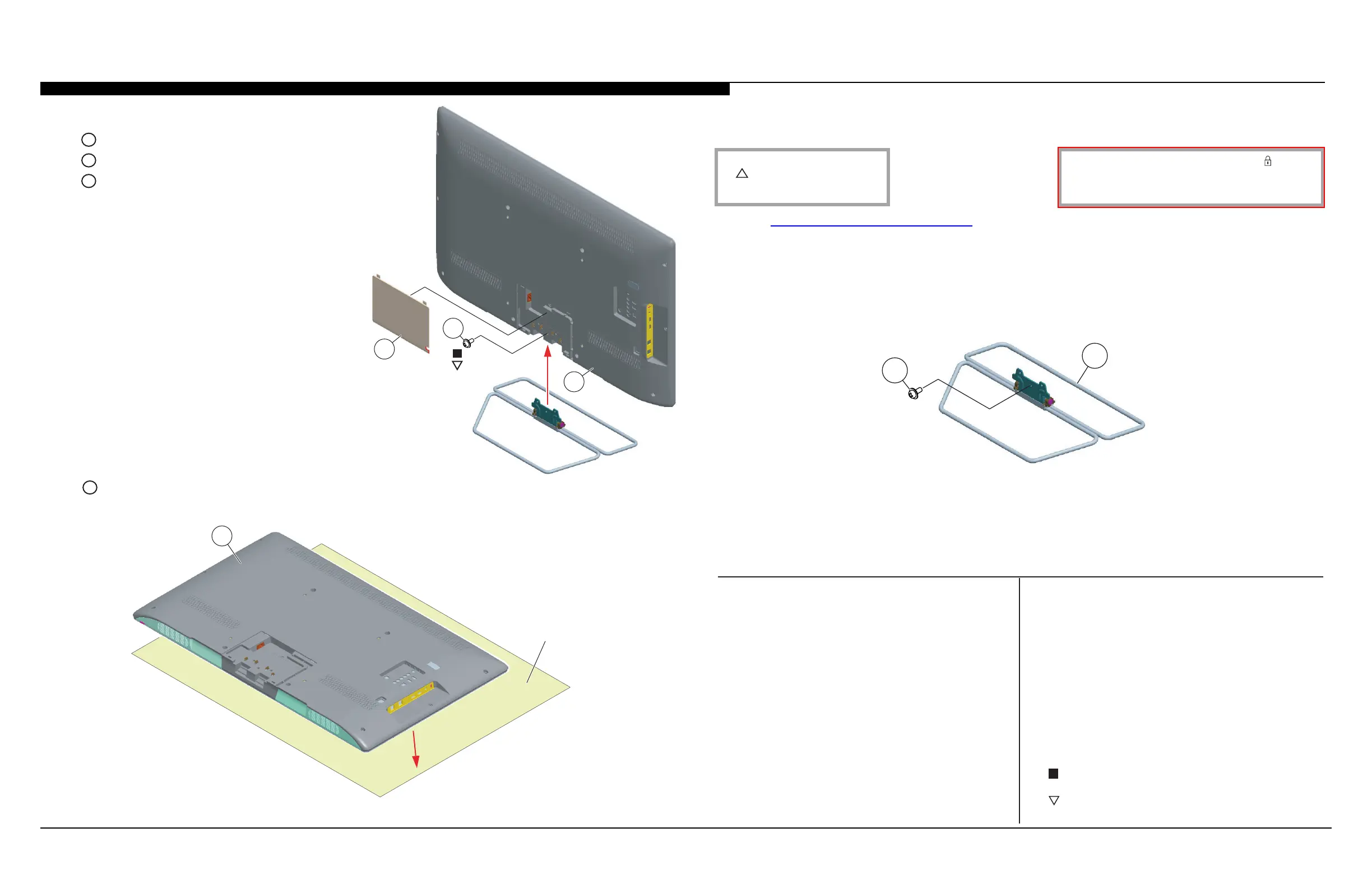

1-1. TABLE-TOP STAND ASSEMBLY REMOVAL
A
Lift AC Door from bottom side to detach from Rear Cover
B
Remove 3 screws from Table-Top Stand Assembly
C
Lift up TV set to detach from Table-Top Stand Assembly
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES] REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
1 X-2548-953-1 STAND (24) ASSEMBLY
(NSX-24GT1 ONLY)
1 X-2548-952-1 STAND (32) ASSEMBLY
(NSX-32GT1 ONLY)
1 X-2549-672-1 STAND (40) ASSEMBLY
(NSX-40GT1 ONLY)
1 X-2548-951-1 STAND (40, 46) ASSEMBLY
(NSX-46GT1 ONLY)
2 7-682-962-01 SCREW, +PSW M4X10(NSX-24GT1 ONLY)
(SCREWS TO ATTACH TABLE-TOP STAND TO LCD TV)
For product protection and safety reasons, Sony strongly recommends
that you use the screws provided with the TV
CAUTION: These screws cannot be used to secure the TV to
the Wall Mount Brackets
2 2-580-608-01 SCREW, +PSW M5X16
(ALL EXCEPT NSX-24GT1 ONLY)
(SCREWS TO ATTACH TABLE-TOP STAND TO LCD TV)
For product protection and safety reasons, Sony strongly recommends
that you use the screws provided with the TV
CAUTION: These screws cannot be used to secure the TV to
the Wall Mount Brackets
7-682-962-01 SCREW, +PSW M4X10
(NSX-24GT1 ONLY)
2-580-608-01 SCREW, +PSW M5X16
(ALL EXCEPT NSX-24GT1 ONLY)
D
Gently place the TV set face down onto a soft cloth
C
A
B
24
32/40/46
Soft Cloth
D
1
2

Sony NSX-40GT1 Specifications

Power

power requirements voltage	AC 120V
power requirements frequency	60Hz
power consumption in operation	122 W
power consumption in standby	0.5 W
power consumption in download acquisition mode	34 Wh/day

Display

aspect ratio	16:9
backlight type	Edge LED
display device	LCD
display resolution	1920 x 1080p (Full HD)
screen size	40 inches
viewing angle right/left	178(89/89)
viewing angle up/down	178(89/89)

Audio

audio power output	20W (10W x 2)
audio dac	48kHz/24bit
speakers total	2

Inputs and Outputs

ac power	1 (Rear)
composite video input	1 (Rear)
component video input	1 (Rear)
hdmi connections input	4 (2 Rear/ 2 Side)
analog audio input	1 (Rear)
analog audio output	1 (Headphone)
digital audio optical output	1 (Rear)
usb 2.0	4 (Side)
ethernet connections	10BASE-T/100BASE-TX/1000BASE-T (Rear)

Weight and Dimensions

dimensions without pedestal	37 5/8 x 23 1/8 x 2 1/8 inches
dimensions with pedestal	37 5/8 x 24 3/8 x 11 3/4 inches
packaging dimensions	41 1/8 x 27 x 6 3/4 inches
weight without pedestal	37.7 lbs
weight with pedestal	41.5 lbs
