Sony NSX-40GT1 Service Manual

NSX-24GT1/32GT1/40GT1/46GT1 10
DISASSEMBLY/PART NUMBER INFORMATION
NOTE: The components identied by shading
and
!
mark are critical for safety. Replace only
with part number specied.
NOTE: The components identied by a red outline and a mark contain
condential information. Specic instructions must be adhered to whenever
these components are repaired and/or replaced.
See Appendix A: Encryption Key Components in the back of this manual.
REF. NO. PART NO. DESCRIPTION [ASSEMBLY INCLUDES]
(Check the Sony Electronics Service Information website for any additional service related issues for this model.)
A
Remove screws from Rear Cover to detach from LCD Panel
11 from NSX-32GT1/40GT1 Only
13 from NSX-46GT1 Only
B
Remove 1 screw from Rear Cover to detach from Terminal Area
C
Lift up Rear Cover from bottom side to detach from Glass Assembly
D
Slide out 4 Vesa Brackets to detach from Rear Cover
E
Lift up Speaker Cover Right to detach from LCD Panel
F
Release 1 clip to detach Power Button from Speaker Cover Right
G
Remove 1 screw from HA Board and disconnect 1 connector, then lift up to remove
from Power Button
H
Remove 4 screws and disconnect 2 connectors to detach Speaker from Speaker
Cover Right
I
Release 1 clip and disconnect 1 connector to detach RF Module from
Speaker Cover Right
J
Lift up Speaker Cover Left to detach from LCD Panel
K
Release clip to detach Antenna and Antenna Bracket
from Speaker Cover Left
L
Remove 4 screws and disconnect 2 connectors
to detach Speaker from Speaker Cover Left
M
Release clip to detach Antenna and
Antenna Bracket from Speaker Cover Left
Note: The Vesa Brackets are not included
with the Rear Cover and must be reattached
to the replacement Rear Cover.
Note: The Antenna Brackets are not included
with the Antennas and must be reattached
to the replacement Antennas.

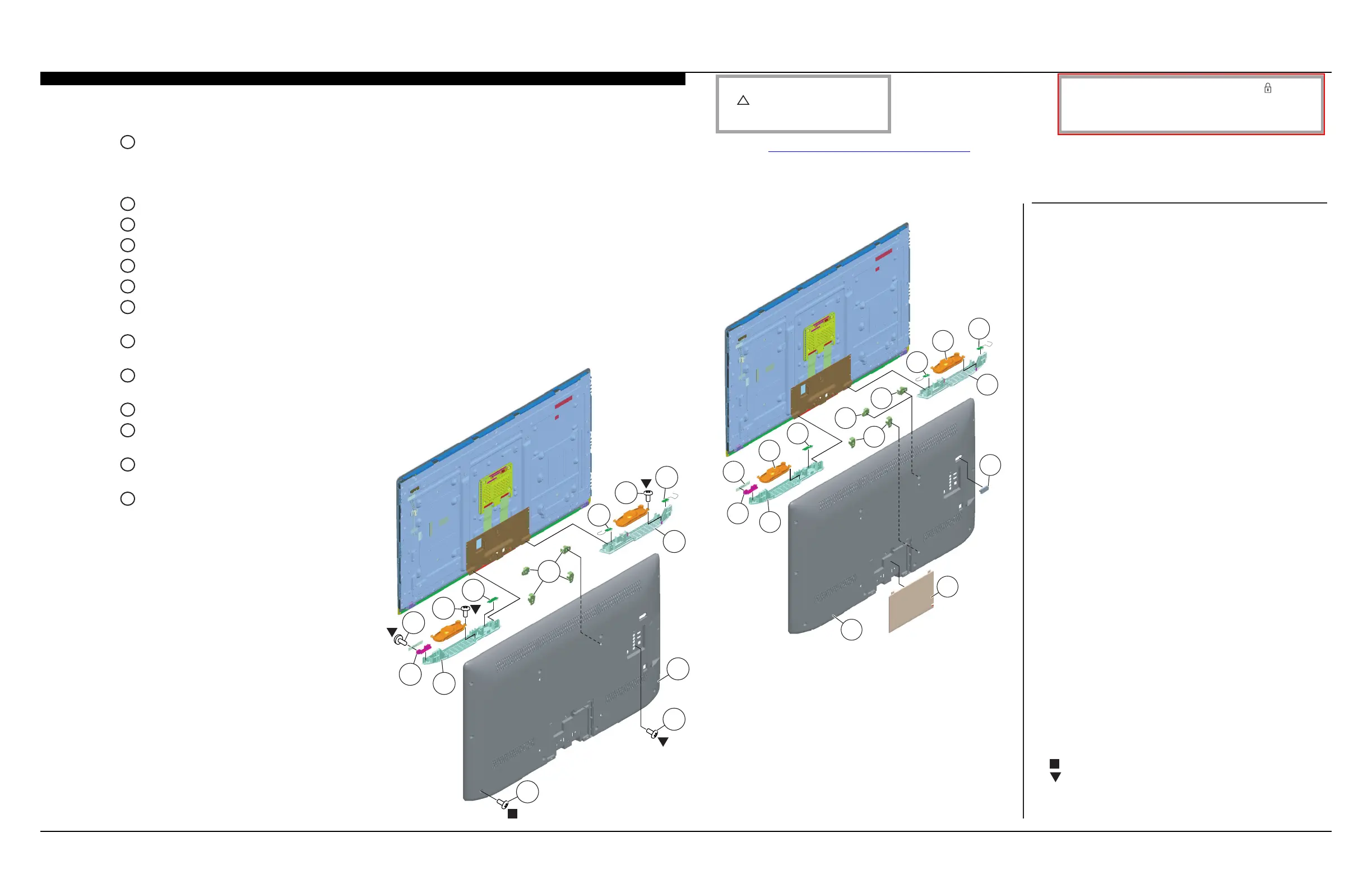

1-2-2. NSX-32GT1/40GT1/46GT1 ONLY
D
C
E
J
K
F
I
H
M
G
L
A
B
101 X-2548-949-1 REAR COVER (32) ASSEMBLY
(NSX-32GT1 ONLY)
101 X-2548-948-1 REAR COVER (40) ASSEMBLY
(NSX-40GT1 ONLY)
101 X-2548-947-1 REAR COVER (46) ASSEMBLY
(NSX-46GT1 ONLY)
102 4-198-067-01 AC DOOR (32)
(NSX-32GT1 ONLY)
102 4-198-066-01 AC DOOR (40)
(NSX-40GT1 ONLY)
102 4-198-065-01 AC DOOR (46)
(NSX-46GT1 ONLY)
103 4-198-069-01 ECS COVER
104 4-262-651-01 BRACKET, VESA (S)
105 4-262-654-01 BRACKET, VESA (32L)
(NSX-32GT1 ONLY)
105 4-262-652-01 BRACKET, VESA (40, 46L)
(NSX-40GT1/46GT1 ONLY)
106 4-262-655-01 BRACKET, VESA (32R)
(NSX-32GT1 ONLY)
106 4-262-653-01 BRACKET, VESA (40, 46R)
(NSX-40GT1/46GT1 ONLY)
107 4-198-045-01 SPEAKER COVER (32R)
(NSX-32GT1 ONLY)
107 4-198-043-01 SPEAKER COVER (40R)
(NSX-40GT1 ONLY)
107 4-198-041-01 SPEAKER COVER (46R)
(NSX-46GT1 ONLY)
108 4-198-047-01 POWER BUTTON
109 A-1787-299-A HA BOARD, MOUNTED
110 1-858-467-11 LOUDSPEAKER (4.5X13.0CM)
111 1-489-179-12 RF MODULE
112 4-198-044-01 SPEAKER COVER (32L)
(NSX-32GT1 ONLY)
112 4-198-042-01 SPEAKER COVER (40L)
(NSX-40GT1 ONLY)
112 4-198-040-01 SPEAKER COVER (46L)
(NSX-46GT1 ONLY)
113 1-754-735-11 ANTENNA
114 1-754-735-21 ANTENNA
7-682-962-01 SCREW, +PSW M4X10
7-685-648-71 SCREW +BVTP 3X12 TYPE2 IT-3
101
104
102
103
107
112
113
108
111
106
105
110
108
114
109

Sony NSX-40GT1 Specifications

Power

power requirements voltage	AC 120V
power requirements frequency	60Hz
power consumption in operation	122 W
power consumption in standby	0.5 W
power consumption in download acquisition mode	34 Wh/day

Display

aspect ratio	16:9
backlight type	Edge LED
display device	LCD
display resolution	1920 x 1080p (Full HD)
screen size	40 inches
viewing angle right/left	178(89/89)
viewing angle up/down	178(89/89)

Audio

audio power output	20W (10W x 2)
audio dac	48kHz/24bit
speakers total	2

Inputs and Outputs

ac power	1 (Rear)
composite video input	1 (Rear)
component video input	1 (Rear)
hdmi connections input	4 (2 Rear/ 2 Side)
analog audio input	1 (Rear)
analog audio output	1 (Headphone)
digital audio optical output	1 (Rear)
usb 2.0	4 (Side)
ethernet connections	10BASE-T/100BASE-TX/1000BASE-T (Rear)

Weight and Dimensions

dimensions without pedestal	37 5/8 x 23 1/8 x 2 1/8 inches
dimensions with pedestal	37 5/8 x 24 3/8 x 11 3/4 inches
packaging dimensions	41 1/8 x 27 x 6 3/4 inches
weight without pedestal	37.7 lbs
weight with pedestal	41.5 lbs
