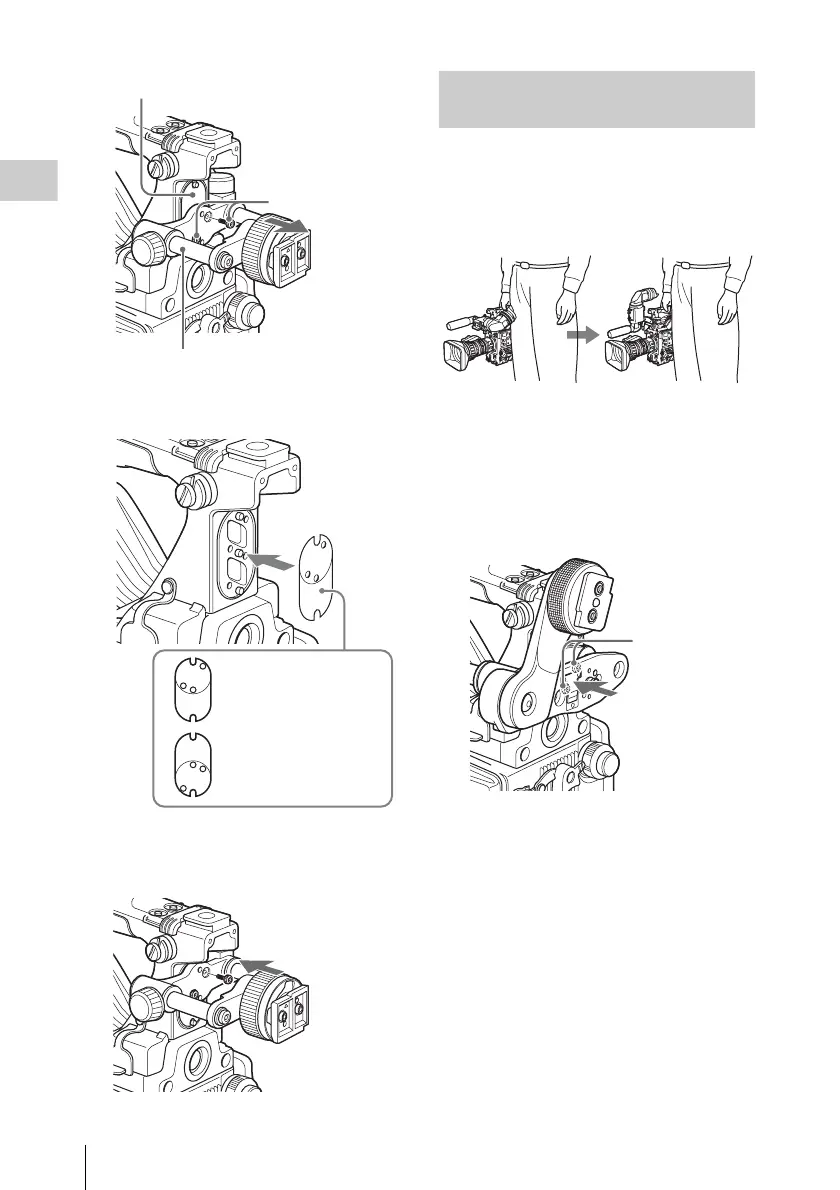

Attaching the Viewfinder
38
Chapter 2 Preparations
3 Attach the handle front cover with the
bottom edge up.
4 Attach the viewfinder slide assembly,
reversing the steps of the removal
procedure.
By fitting a BKW-401 Viewfinder Rotation
Bracket (not supplied), you can rotate the
viewfinder out of the way so that your right leg
does not hit the viewfinder while you are carrying
the camcorder.
1 Carry out steps 1 and 2 of the previous
section “Moving the viewfinder shoe
up” to detach the viewfinder slide
assembly.
2 Attach the BKW-401 with the supplied
bolts.
3 Adjust the front-to-back position so
that the arm of the BKW-401 does not
touch the handle when it is raised.
Handle front cover
Bolt with
hexagonal hole
Viewfinder slide assembly
To attach the viewfinder
at the top
To attach the viewfinder
at the bottom (factory
default)
Using the BKW-401 Viewfinder
Rotation Bracket
Bolts supplied
with the BKW-401
To Next Page
