Sony SA-WX9000F - TOP CABINET SECTION

52
HT-X9000F/XF9000

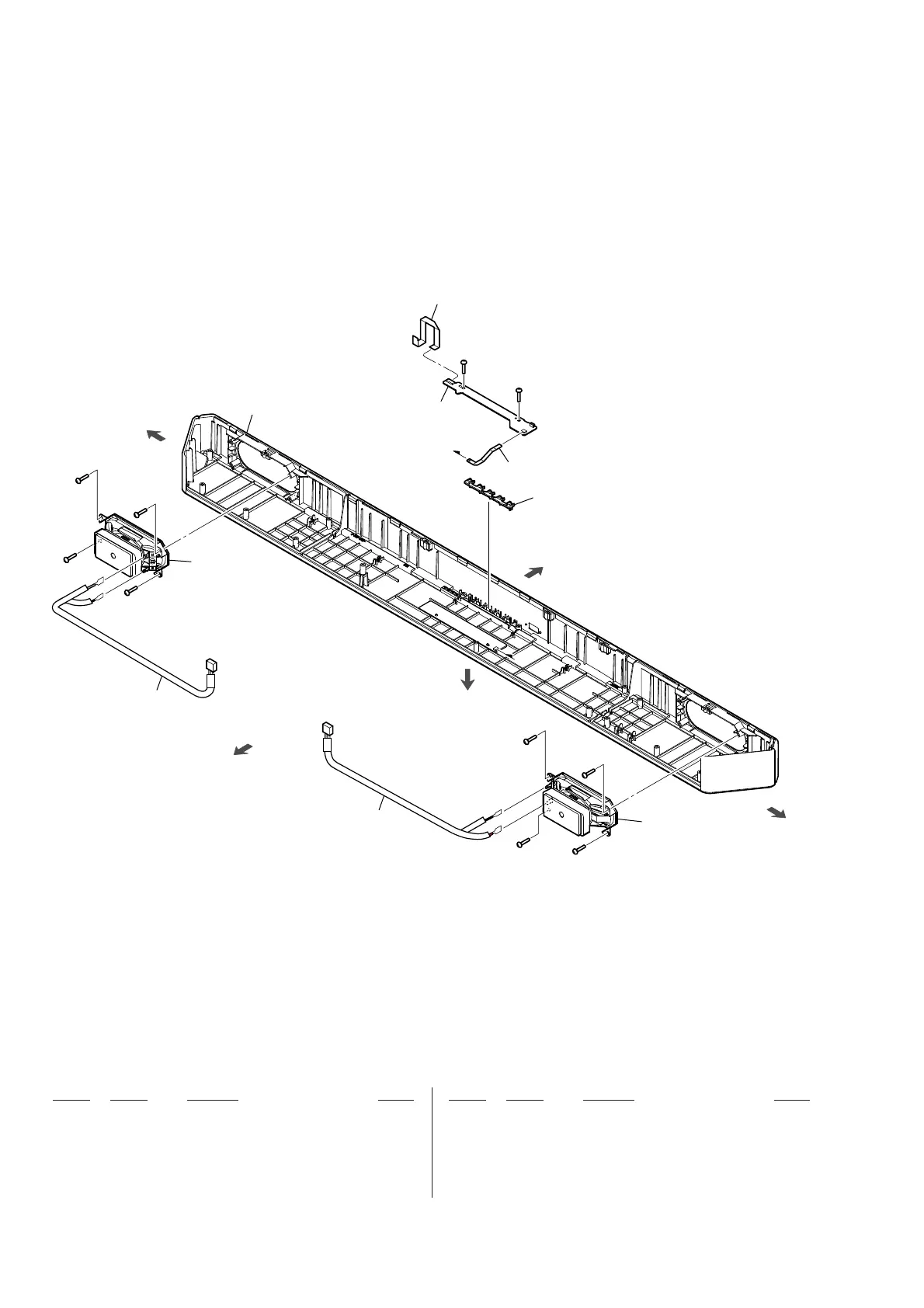

6-2. TOP CABINET SECTION
front side
right side
top side
left side
C
C
#2
not supplied
51
SP1
SP2
#2
#2
#2
#2
#2
#2
#2
not supplied
FFC2
FFC1
#3
not supplied
#3
FP1
rear side
51 A-2186-967-A SK1 LED BOARD, COMPLETE
FFC1 1-912-605-11
FFC (MB~SK1-LED-CHUKEI) (16P) (L = 107 mm)
FFC2 1-912-606-11 FFC (SK1-LED-CHUKEI~SK1-TOUCH) (6P)
(L = 50 mm)
FP1 A-2201-999-A SERVICE ASSY, CABINET (TOP)
(Including SK1-TOUCH board)
SP1 1-859-248-11 LOUDSPEAKER (35X93 mm) (Front L-ch)
SP2 1-859-248-11 LOUDSPEAKER (35X93 mm) (Front R-ch)
#2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3
#3 7-685-646-71 SCREW +BVTP 3X8 TYPE2 IT-3
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
