HCD-C770/C990

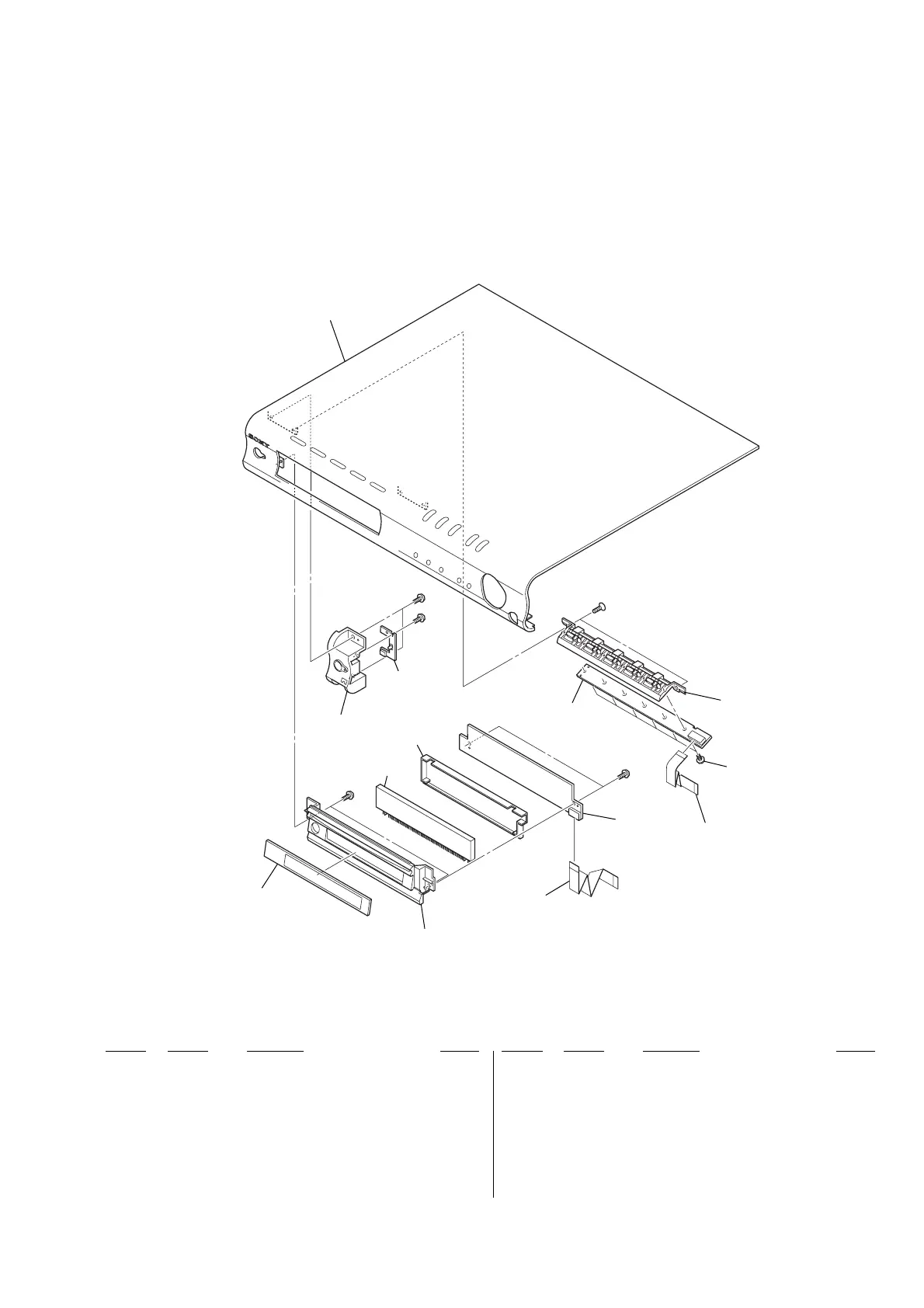

8-3. FRONT PANEL SECTION-2
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
101 X-4954-740-3 WINDOW SUB ASSY
102 X-4954-729-2 LID SUB ASSY, CD
103 4-240-402-01 FL HOLDER
104 1-824-479-11 FLEXIBLE FLAT CABLE (10 CORE)
105 1-685-082-11 FL BOARD
106 X-4954-736-1 POWER SUB ASSY
107 4-240-372-01 FRONT PANEL (AL) (C770)
107 4-241-536-01 PANEL (AL), FRONT (C990)
108 X-4954-734-1 PLAY BUTTON SUB ASSY
109 A-4728-876-A KEY BOARD, COMPLETE
110 1-824-478-11 FLEXIBLE FLAT CABLE (12 CORE)
111 4-931-757-31 SCREW (DIA.2.6X8) (IT3B), TAPPING
FL801 1-518-824-11 INDICATOR TUBE, FLUORESCENT
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#7 7-685-246-14 SCREW +KTP 3X8 TYPE2 NON-SLIT
101
102
106
107
103
104
105
109
108
110
111
not
supplied
(power LED board)
FL801
#1
#1
#7
#1
#1
