HCD-C770/C990
6666

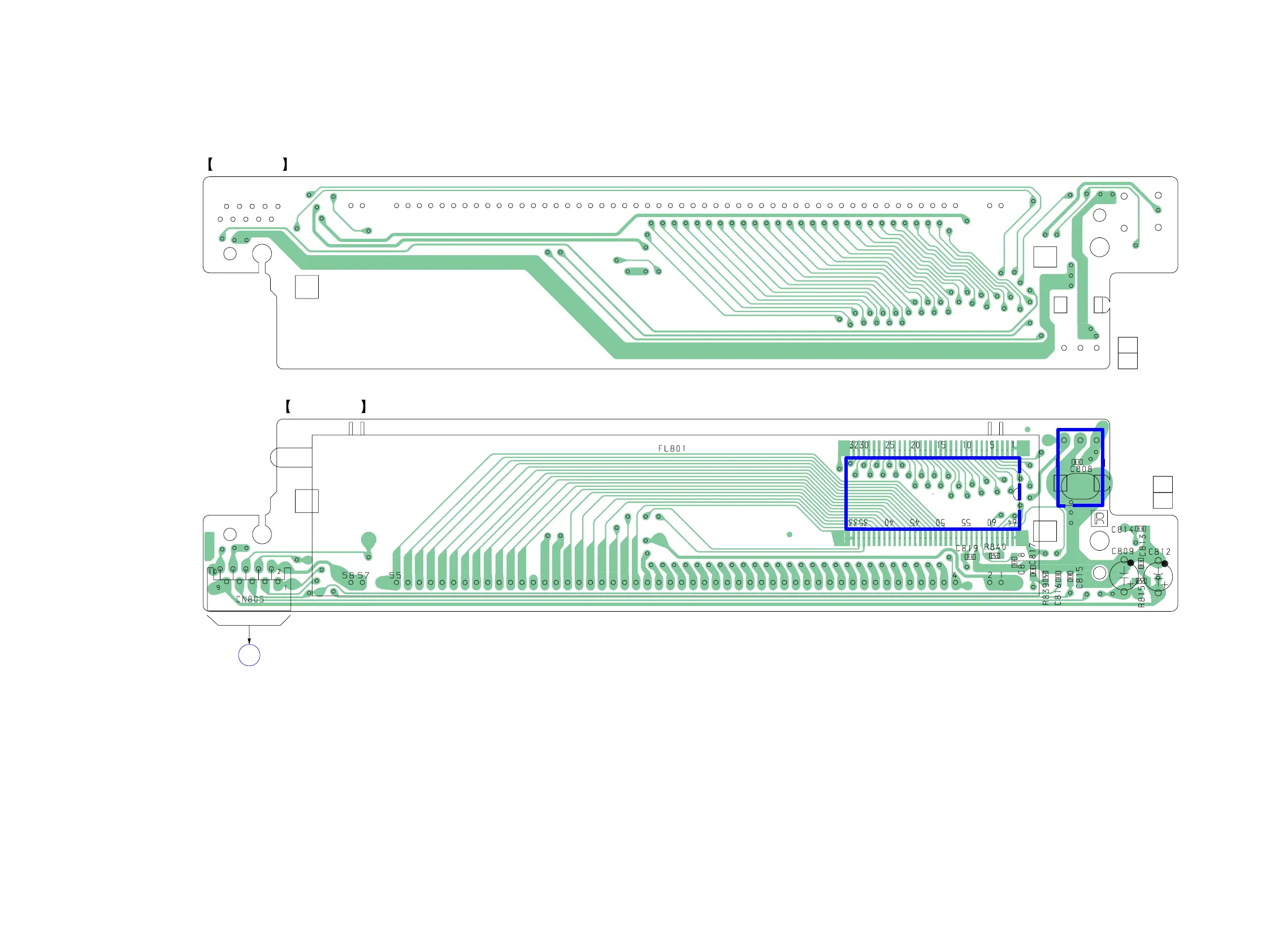

7-35. PRINTED WIRING BOARD – FL Board – • See page 37 for Circuit Boards Location.
IC802
IC101
1
3
FLUORESCENT INDICATOR
TUBE
L
DDCON BOARD
CN803
FL BOARD
(COMPONENT SIDE)
1-685-886-
11
(11)
FL BOARD
(CONDUCTOR SIDE)
1-685-886-
11
(11)
(Page 62)
