12

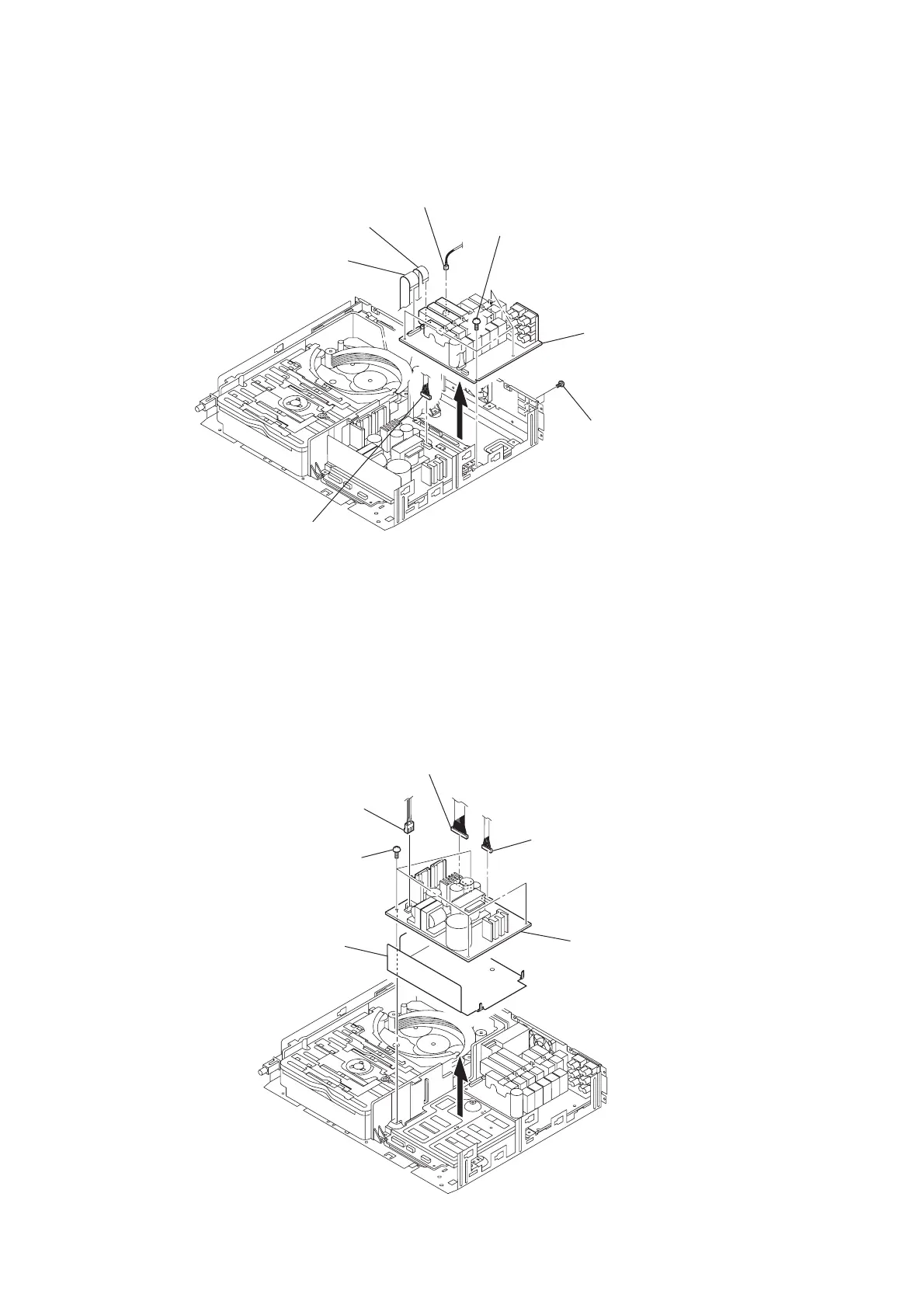

HCD-C770/C990
3-6.
AMP BO
ARD
3-7.
PO
WER BO
ARD
2
two screws
(BVTP3
×
8
)
3
1
four screws
(BVTP3
×
8)
6
connector
(CN302)
5
wire (flat type)
(CN301)
8
AMP board
7
connector
(CN904)
4
wire (flat type)
(CN305)
5
7
power board
6
power sheet
1
connector
(CN904)
2
connector
(CN903)
3
connector
(CN902)
4
four screws
(BVTP3
×
8)
13
15
Table of Contents
Default Chapter
6
Table of Contents
6
1 Servicing Notes
7
2 General
8
Location of Controls
8
3 Disassembly
11
Disassembly Flow
11
Front Panel (AL) Section, Side Panel (L)/(R)
12
Mechanism Deck (CDM69-DVBU16)
12
POWER SW Board
13
AUDIO Board, VIDEO Board
13
AMP Board
14
POWER Board
14
DVD Board
15
Optical Pick-Up (DVBU16)
15
Pick-Up Unit (TDP022W)
16
3-11. Sw Board, Bracket (Top) Assy
16
3-12. Relay Board
17
Motor (Stocker) Assy (Stocker) (M781)
17
Motor (Stocker) Assy (Roller) (M771)
18
Motor (Stocker) Assy (Mode) (M761)
18
3-16. Rubber Roller (Slider) Assy
19
Timing Belt (Front/Rear)
19
Cam (Gear)
20
3-19. Sensor Board
20
4 Assembly
21
How to Install the Cam (Eject Lock)
21
How to Install the Cam (Gear)
21
How to Install the Gear (Mode 2)
22
How to Install the Gear (Mode Cam)
22
How to Install the Rotary Encoder (S702), Gear (Stocker Communication)
23
How to Install the Cam (Stocker U/D)
23
How to Install the Stocker Assy
24
Phase Adjustment between Pinions (Slider) and Slider-1 to 5 (L/R)
25
5 Test Mode
26
6 Electrical Adjustment
33
7 Diagrams
34
Block Diagram - RF SERVO Section
34
Block Diagram - AUDIO (DSP) Section
35
Block Diagram - AUDIO OUT, PANEL Section
36
Block Diagram - VIDEO Section
37
Block Diagram - CHANGER, POWER SUPPLY Section
38
Note for Printed Wiring Boards and Schematic Diagrams
39
Printed Wiring Boards - RF Section
40
Schematic Diagram - RF Section
41
7-9. PRINTED WIRING BOARDS - CHANGER Section
42
Schematic Diagram - CHANGER Section
43
Printed Wiring Board - DVD Board (Component Side)
44
DVD Board (Conductor Side)
45
7-16. Schematic Diagram - DVD Board (4/10)
49
Schematic Diagram - DVD Board (5/10)
50
7-18. Schematic Diagram - DVD Board (6/10)
51
Schematic Diagram - DVD Board (7/10)
52
Schematic Diagram - DVD Board (8/10)
53
7-21. Schematic Diagram - DVD Board (9/10)
54
Schematic Diagram - DVD Board (10/10)
55
Printed Wiring Board - AMP Section (1/2)
56
7-24. Printed Wiring Boards - AMP Section (2/2)
57
7-25. Schematic Diagram - AMP Section (1/2)
58
Schematic Diagram - AMP Section (2/2)
59
Printed Wiring Boards - AUDIO Section
60
Schematic Diagram - AUDIO Section
61
Printed Wiring Board - VIDEO Section
62
Schematic Diagram - VIDEO Section
63
Printed Wiring Boards - DC-DC CONVERTER Section
64
Schematic Diagram - DC-DC CONVERTER Section
65
Printed Wiring Boards - CONTROL Section
66
Schematic Diagram - CONTROL Section
67
Printed Wiring Board - FL Board
68
Schematic Diagram - FL Board
69
Printed Wiring Boards - POWER Section (1/2)
70
Printed Wiring Boards - POWER Section (2/2)
71
Schematic Diagram - POWER Section
72
7-40. IC Pin Function Description
90
8 Exploded Views
109
General Section
109
Front Panel Section-1
110
Front Panel Section-2
111
Chassis Section-1
112
Chassis Section-2
113
Chassis Section-3
114
Mechanism Deck Section-1 (CDM69-DVBU16)
115
Mechanism Deck Section-2 (CDM69-DVBU16)
116
Mechanism Deck Section-3 (CDM69-DVBU16)
117
Mechanism Deck Section-4 (CDM69-DVBU16)
118
Mechanism Deck Section-5 (CDM69-DVBU16)
119
Mechanism Deck Section-6 (CDM69-DVBU16)
120
Optical Pick-Up Section (DVBU16)
121
