HCD-C770/C990
Ref. No. Part No. Description Remark
Ref. No. Part No. Description Remark
301 1-685-006-11 STOCKER MOTOR BOARD
302 4-951-620-01 SCREW (2.6X8), +BVTP
303 4-239-690-01 CAM (STOCKER U/D)
304 4-239-618-01 SCREW (+PWH, 2X6), STEP TAPPING
305 X-4954-628-1 STOCKER ASSY
306 4-239-687-01 GEAR (STOCKER COMMUNICATION)
307 A-4728-700-A RELAY BOARD, COMPLETE
308 4-239-689-01 GEAR (STOCKER DECELERATION)
309 4-239-698-01 PULLEY (STOCKER)
310 4-240-035-01 BELT (STOCKER)
M781 A-4735-953-A MOTOR (STOCKER) ASSY (STOCKER)
S702 1-477-299-11 ENCODER, ROTARY (STOCKER POSITION)
#4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2)

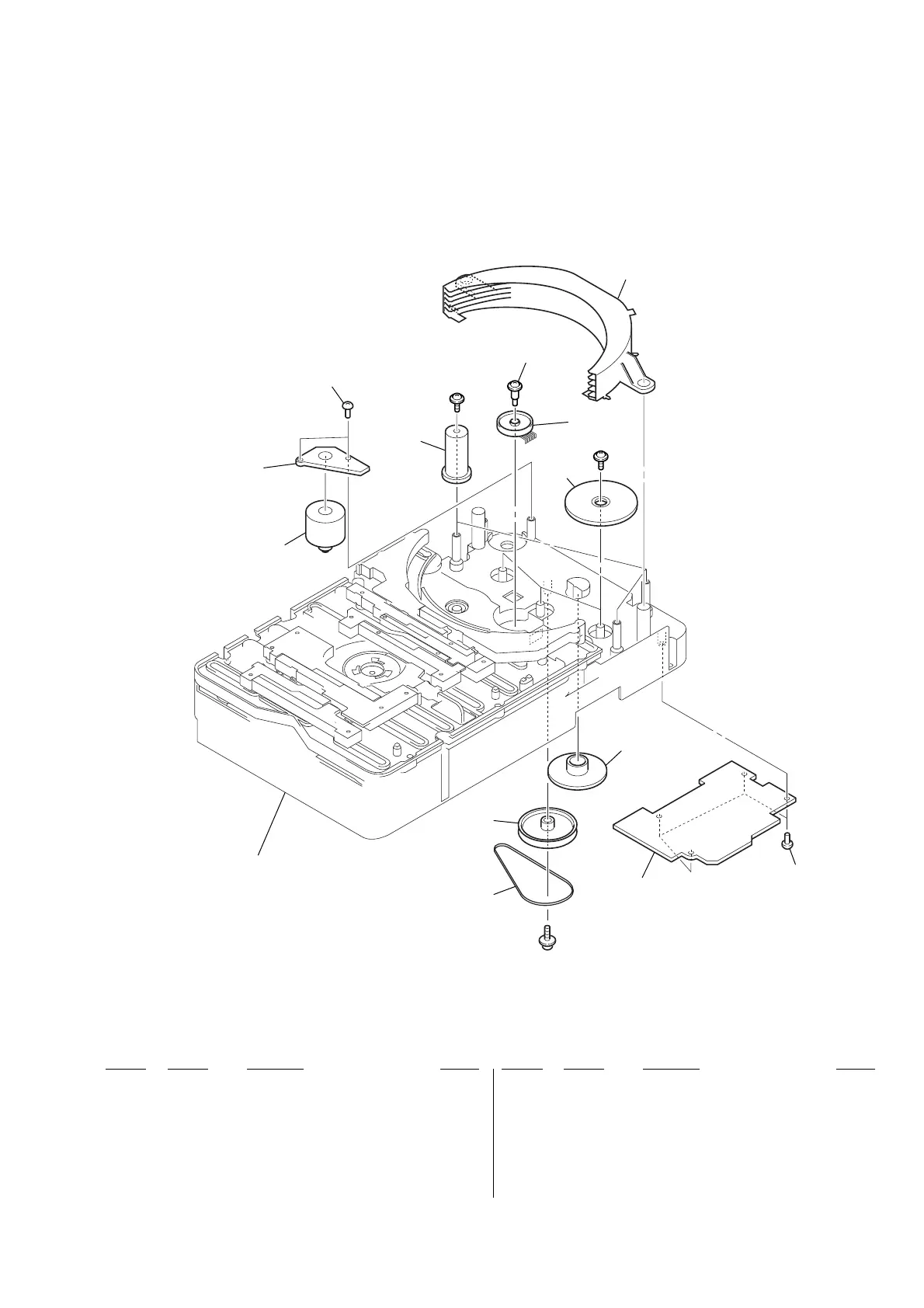

8-7. MECHANISM DECK SECTION-1
(CDM69-DVBU16)
301
302
303
304
305
306
308
302
307
309
310
M781
mechanism deck section-2
#4
#4
#4
S702
To Next Page
