Getting Started

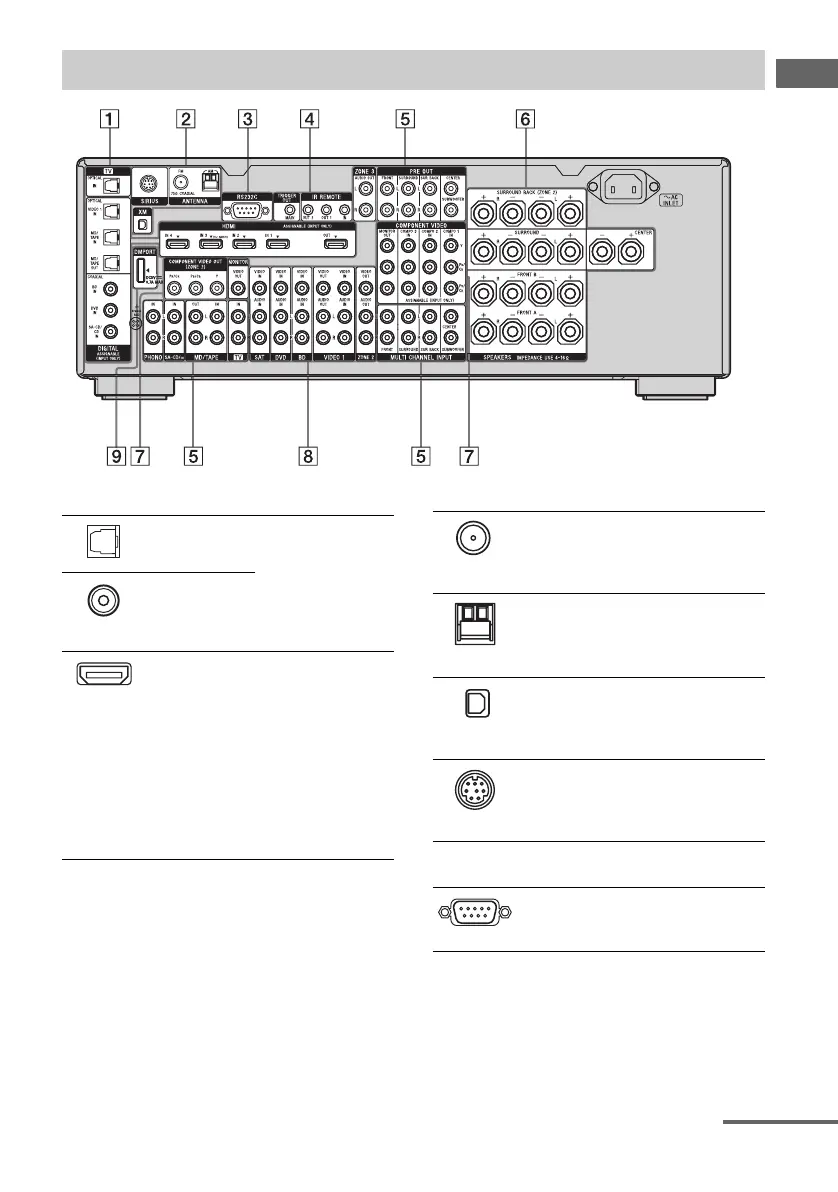

Rear panel
A DIGITAL INPUT/OUTPUT section
OPTICAL IN/
OUT jacks
Connect to a DVD
player, Super Audio
CD player, etc. The
COAXIAL jack
provides a better
sound quality (page
19, 21, 29, 30).
COAXIAL IN
jacks
HDMI IN/
OUT* jacks
Connect to a DVD
player, Blu-ray disc
player, or a satellite
tuner, etc. The image
is output to a TV or a
projector while the
sound can be output
from a TV or/and
speakers connected
to this receiver (page
19, 26).
B ANTENNA section
FM ANTENNA
jack
Connects to the
supplied FM wire
antenna (aerial)
(page 36).
AM
ANTENNA
jack
Connects to the
supplied AM loop
antenna (aerial)
(page 36).
XM jack Connects to the XM
Mini Tuner and
Home Dock (not
supplied) (page 75).
SIRIUS jack Connects to a
SiriusConnect Home
tuner (not supplied)
(page 75).
C RS232C port
Used for
maintenance and
service.
continued

Sony STR-DA3500ES Specifications

General

Display	-
Equalizer	Yes
Product color	Black
Audio output channels	7.1 channels
Total Harmonic Distortion (THD)	0.09 %
Supported radio bands	AM, FM
I/O ports	5 x A/V In 1 x A/V Out 1 x Monitor Out 4 x Opt. In 1 x Opt. Out 3 x Coax. 4 x Audio In 1 x Audio Out 1 x DM 4 x HDMI In 1 x HDMI Out 1 x Digital In
Connectivity technology	Wired
Headphone outputs	1
Headphone connectivity	3.5 mm
Dimensions (WxDxH)	430 x 388 x 157.5 mm

Weight and Dimensions

Weight	12500 g
