Using Multi-zone Features
Making a multi-zone operation
1 Outputs sound from speakers in zone 2 using the SPEAKERS
SURROUND BACK terminals of the receiver.
2 Outputs sound from speakers in zone 2 using the receiver and another
amplifier.

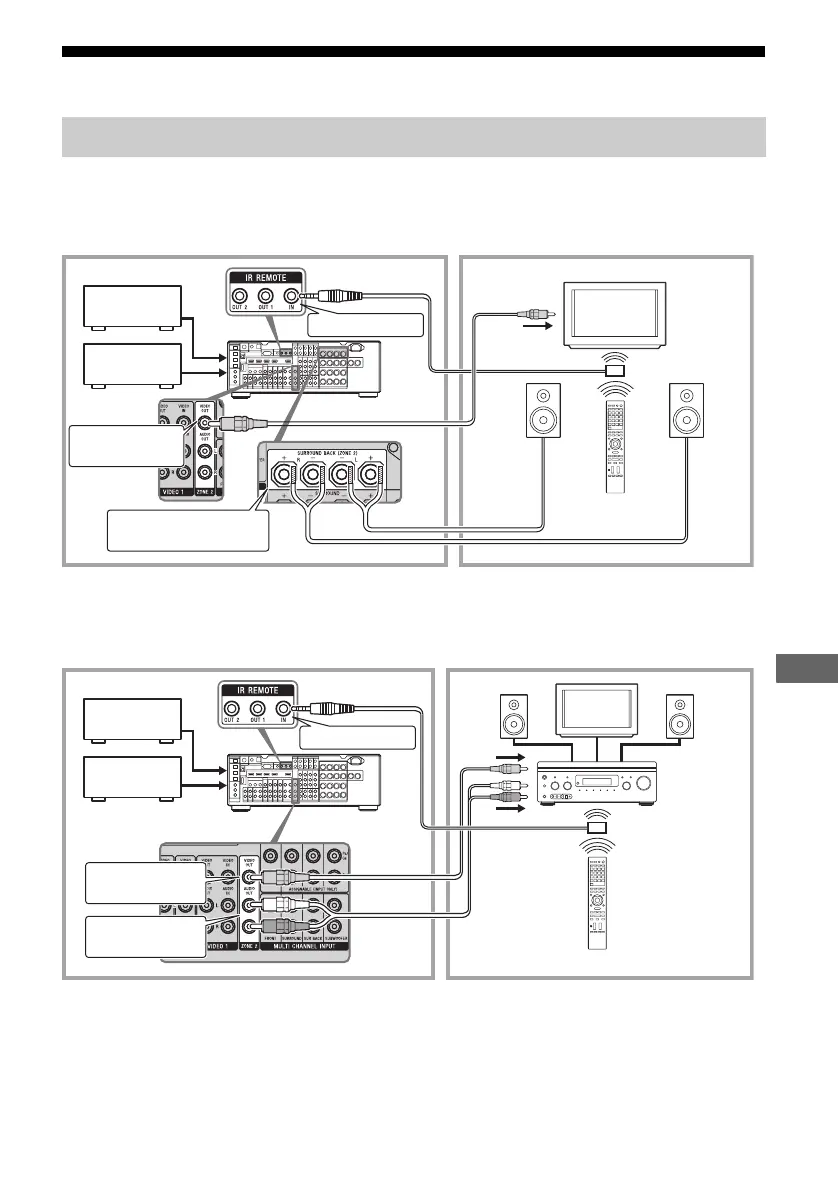

1: Zone 2 connections
Main zone Zone 2
TV
A
ZONE 2 VIDEO
OUT*
B
D
STR-DA3500ES
D
SURROUND BACK
SPEAKERS
Multi function
remote
IR REMOTE IN
C
Main zone Zone 2
ZONE 2 VIDEO
OUT*
TV
A
ZONE 2 AUDIO
OUT
B
DD
E
C
A Audio component
B Video component
C IR repeater (not supplied)
D Speakers
E Sony Amplifier/Receiver
* You can also connect to the COMPONENT VIDEO OUT (ZONE 2) jack.
Multi function remote
STR-DA3500ES
IR REMOTE IN
