STR-DE685
SOFTWARE VERSION DISPLAY MODE
*The software version is displayed.
* Procedure:
While depressing the [ENTER] and the SOUND FIELD [A.F.D.]
buttons simultaneously, press the power
?/1 button to turn on
the main power. The model name, destination and the software
version are displayed.
FLUORESCENT INDICATOR TUBE TEST MODE
* All fluorescent segments are tested. When this test is activated,
all segments turn on at the same time, then each segment turns
on one after another.
* Procedure:
While depressing the [MD/TAPE] and the [SHIFT] buttons simul-
taneously, press the power ?/1 button to turn on the main power.
1. All segments turn on.
[MULTI CHANNEL DECODING], [Digital Cinema Sound], SOUND
FIELD [A.F.D.], SOUND FIELD [MODE], SOUND FIELD
[2CH] and [SET UP] LED turn on.

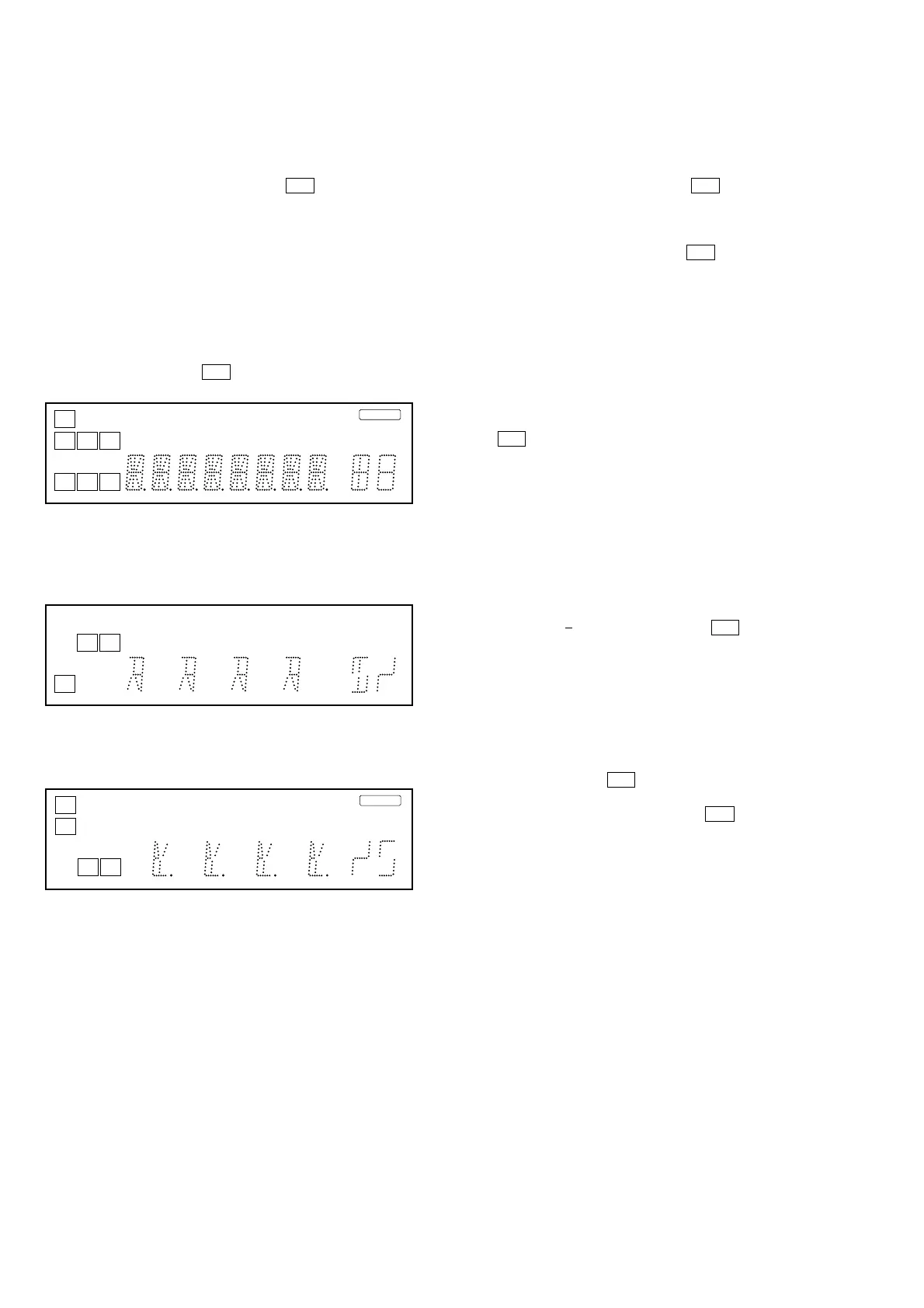

2. Press the [VIDEO 1] button, confirm display
SOUND FIELD [A.F.D], SOUND FIELD [MODE], [LEVEL],
[SET UP] and [Digital Cinema Sound] LED turn on.
3. Press the [VIDEO 1] button, confirm display
[MULTI CHANNEL DECODING], SOUND FIELD [2CH], [SURR],
[EQ] and [NAME] LED turn on.
4. Press the [VIDEO 1] button, All segments turn off.
5. Every pressing of the [VIDEO 1] button turns on each segment
and LED one after another in the same order.
(Not only the [VIDEO 1] button, but also the other buttons such
as [VIDEO 2], [VIDEO 3], [DVD/LD], [MD/TAPE], [CD/SACD],
[TUNER] and [AUX] can be used.)
SECTION 3
TEST MODE
SW
L
SL
CR
SSR
SLEEP
SP.OFF
( ( ( L F E ) ) )
DIGITAL
OPT COAX MULTI CH IN
PRO LOGIC DTS MPEGSTEREO MONO RDS MEMORY
MUTINGINFONEWSTAEQD.RANGE
D
D
dB
kHz
mft.
MHz
SW
LR
S
SLEEP
L F E
COAX
PRO LOGIC MPEGSTEREO RDS
MUTINGINFOTAD.RANGE
D
D
k
m
MHz
SL
C
SR
SP.OFF
( ( ( ) ) )
DIGITAL
OPT MULTI CH IN
DTS MONO MEMORY
NEWSEQ
dB
Hz
ft.
FACTORY PRESET MODE
* All preset contents are reset to the default setting.
* Procedure:
While depressing the [VIDEO 1] and the SOUND FIELD [2CH]
buttons simultaneously, press the power
?/1 button to turn on
the main power. The message FACTORY appears and switch
off the set.
While depressing the [VIDEO 1] and the SOUND FIELD [2CH]
buttons simultaneously, press the power
?/1 button again. The
message “FACTORY” appears and the preset contents are reset
to the default values.
SOUND FIELD CLEAR MODE
*The preset sound field is cleared when this mode is activated.
Use this mode before returning the product to clients upon
completion of repair.
* Procedure:
While depressing the SOUND FIELD [MODE] button, press the
power ?/1 button to turn on the main power. The message “S.
F. CLR” appears and initialization is performed.
AM CHANNEL STEP 9 kHz/10 kHz
SELECTION MODE
* Either the 9 kHz step or 10 kHz step can be selected for the AM
channel step.
* Procedure:
Set the [TUNER] to [AM]. Turn off the main power.
While depressing the [TUNING +] button or the
[PRESET TUNING ] button, press the power ?/1 button to turn
on the main power. Either the message 9 k STEP or 10 k STEP
appears. Select the desired step.
*For US, Canadian, E, Mexican and Argentina model only
KEY CHECK MODE
* Button check
* Procedure:
While depressing the [VIDEO 1] and the [SHIFT] buttons simul-
taneously, press the power ?/1 button to turn on the main power.
“REST 39” appears.
Every pressing of any button other than the ?/1 , [EQUALIZER]
and the [MULTI CH IN] counts down the buttons. The buttons
which are already counted once are not counted again. When all
buttons are pressed “REST 04” appears.
When [MASTER VOLUME] is rotated in clockwise direction,
“VOL MIN”, “VOL 1” to “VOL 73”, “VOL MAX” appear.
