Sony STR-DE685 Service Manual

42
STR-DE685
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
101 A-4727-862-A S-VIDEO BOARD, COMPLETE (US,CND)
101 A-4727-871-A S-VIDEO BOARD, COMPLETE (EXCEPT US,CND)
102 A-4727-849-A VIDEO BOARD, COMPLETE (TW)
102 A-4727-855-A VIDEO BOARD, COMPLETE (US,CND)
102 A-4727-867-A VIDEO BOARD, COMPLETE
(EXCEPT US,CND,TW)
103 4-233-263-01 MOLD, SUB (DE9)
104 A-4727-864-A COMPONENT VIDEO BOARD, COMPLETE
(US,CND)
104 A-4727-873-A COMPONENT VIDEO BOARD, COMPLETE
(EXCEPT US,CND,AEP,UK,AUS)
105 1-684-945-11 SPEAKER (B) BOARD
* 106 3-703-044-26 LABEL, CAUTION (US,CND)
107 3-703-244-00 BUSHING (FBS001), CORD
0 108 1-769-079-21 CORD, POWER (KR)
0 108 1-769-744-11 CORD, POWER (AEP,UK,AUS)
0 108 1-777-071-22 CORD, POWER (E,JE,SP,MY,TW)
0 108 1-783-205-11 CORD, POWER (CH)
0 108 1-783-820-11 CORD, POWER (US,CND,MX)
0 108 1-783-941-12 CORD, POWER (AR)
109 1-769-907-11 WIRE (FLAT TYPE) (9 CORE)
110 1-769-940-11 WIRE (FLAT TYPE) (11 CORE)
(EXCEPT AEP,UK,AUS)
110 1-773-004-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK,AUS)
111 1-765-315-11 WIRE (FLAT TYPE) (7 CORE)
(JE,CH,SP,MY,TW,AR)
111 1-769-893-11 WIRE (FLAT TYPE) (7 CORE)
(US,CND,AEP,UK,E,AUS,MX,KR)
112 A-4727-859-A DIGITAL BOARD, COMPLETE (US,CND)
112 A-4727-869-A DIGITAL BOARD, COMPLETE (AEP,UK,AUS)
112 A-4728-037-A DIGITAL BOARD, COMPLETE (E,MX,TW)
112 A-4728-041-A DIGITAL BOARD, COMPLETE (CH,SP,MY,AR,KR)
112 A-4729-415-A DIGITAL BOARD, COMPLETE (JE)
113 1-769-843-11 WIRE (FLAT TYPE) (5 CORE)
(EXCEPT AEP,UK,AUS)
114 1-683-761-11 AC SELECT BOARD (E,JE)
115 1-500-386-11 FILTER, CLAMP (FERRITE CORE)
(EXCEPT US,CND,JE)
TM301 1-693-577-21 TUNER PACK (FM/AM) (ANTENNA)
(US,CND,E,JE,MX)
TM301 1-693-578-21 TUNER PACK (FM/AM) (ANTENNA)
(AEP,UK,AUS)
TM301 1-693-580-21 TUNER PACK (FM/AM) (ANTENNA)
(CH,SP,MY,TW,AR,KR)
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
#3 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S

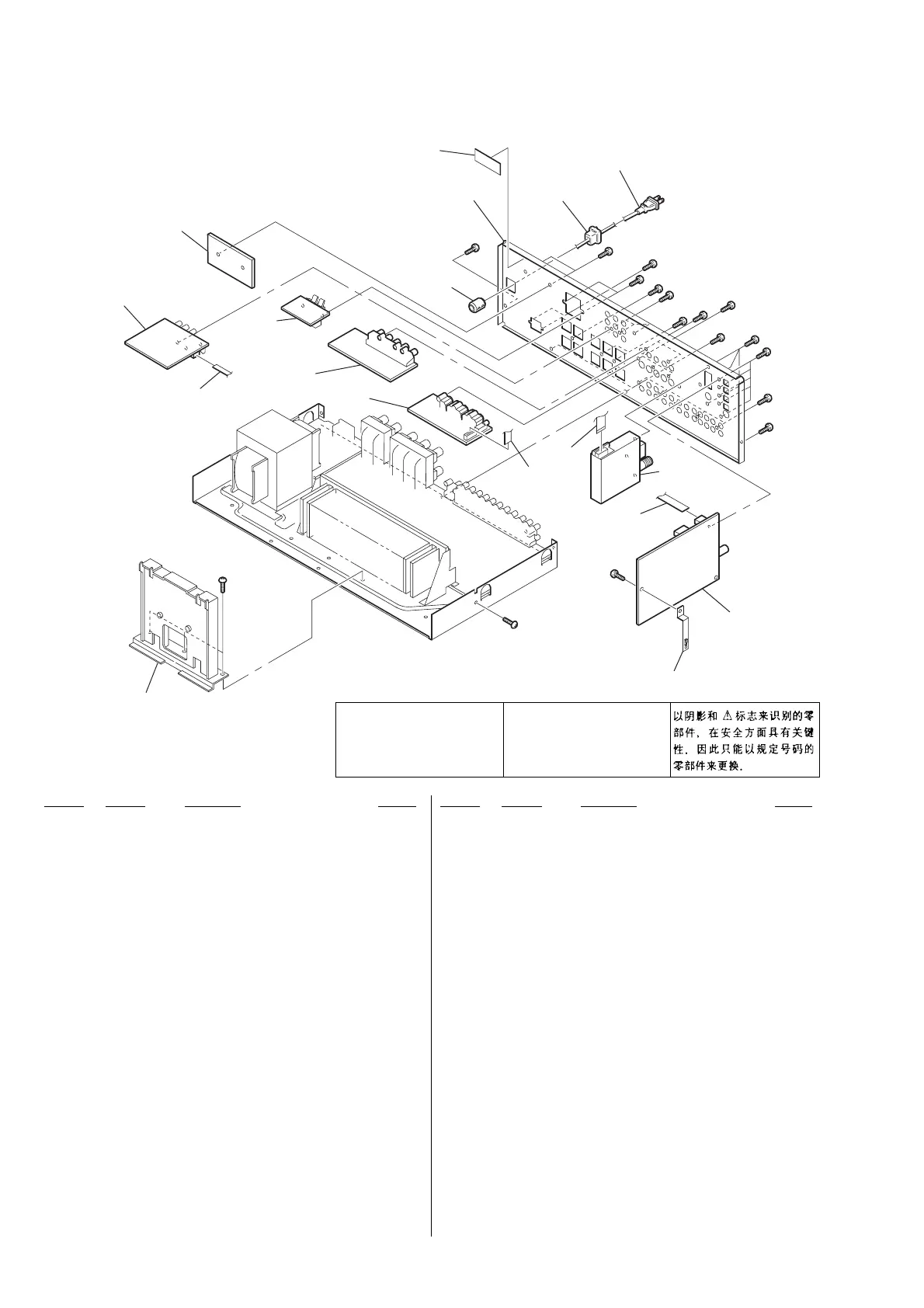

5-3. CHASSIS SECTION-1
106
115
107
108
101
102
104
114
113
105
112
110
109
111
103
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
#1
TM301
#3
not supplied
not supplied
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par
une marque 0 sont critiques
pour la sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifié.
Ver 1.1
