40
STR-DE685
SECTION 5
EXPLODED VIEWS
Ref. No. Part No. Description Remark

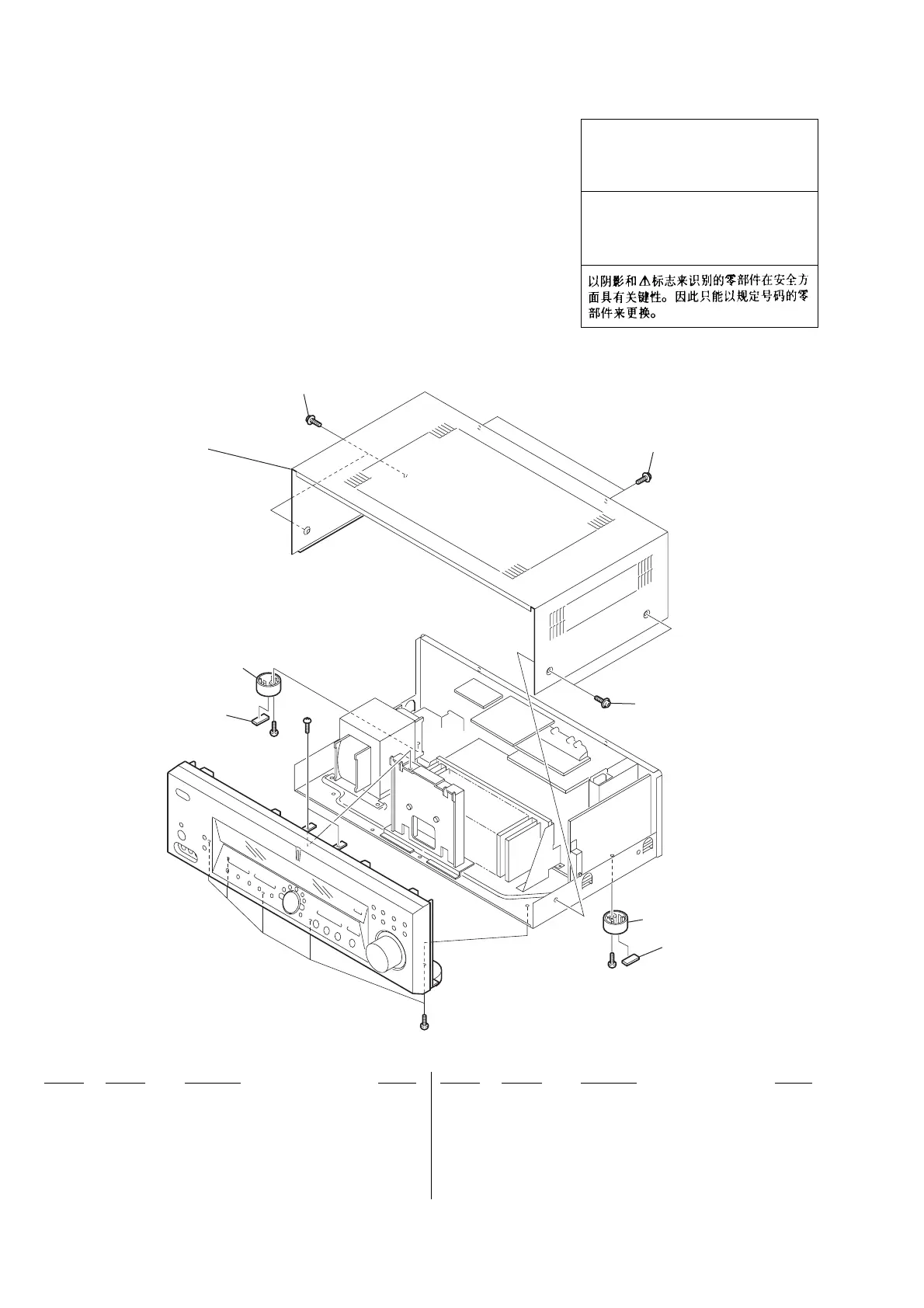

5-1. CASE SECTION
Ref. No. Part No. Description Remark
1 4-232-418-21 CASE (SILVER)...(SILVER)
(AEP,UK,E,AUS,MX,AR)
1 4-232-418-41 CASE (GOLD)...(GOLD) (JE)
1 4-235-766-01 CASE (BLACK)...(BLACK)
(US,CND,AEP,UK,AUS,MX)
1 4-235-766-41 CASE (GOLD)...(GOLD) (CH,SP,MY,TW,KR)
2 4-232-237-01 FOOT (DIA.30)
3 4-210-291-01 SCREW (CASE 3 TP2) (BLACK)...(BLACK)
(US,CND,AEP,UK,AUS,MX)
3 4-210-291-11 SCREW (CASE 3 TP2)
(SILVER)...(SILVER,GOLD)
(EXCEPT US,CND)
4 4-921-941-01 CUSHION
#1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this parts list.
R
R
1
3
3
3
2
4
2
4
#1
#1
#1
#1
•Abbreviation
CND : Canadian model
AUS: Australian model
JE : Tourist model
CH : Chinese model
MX : Mexican model
SP : Singapore model
MY : Malaysia model
TW : Taiwan model
AR : Argentina model
KR : Korean model
The components identified by mark 0 or
dotted line with mark 0 are critical for
safety.
Replace only with part number specified.
Les composants identifiés par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une piéce portant
le numéro spécifié.
Ver 1.1
To Next Page
