Sony STR-DE685 Service Manual

41
STR-DE685

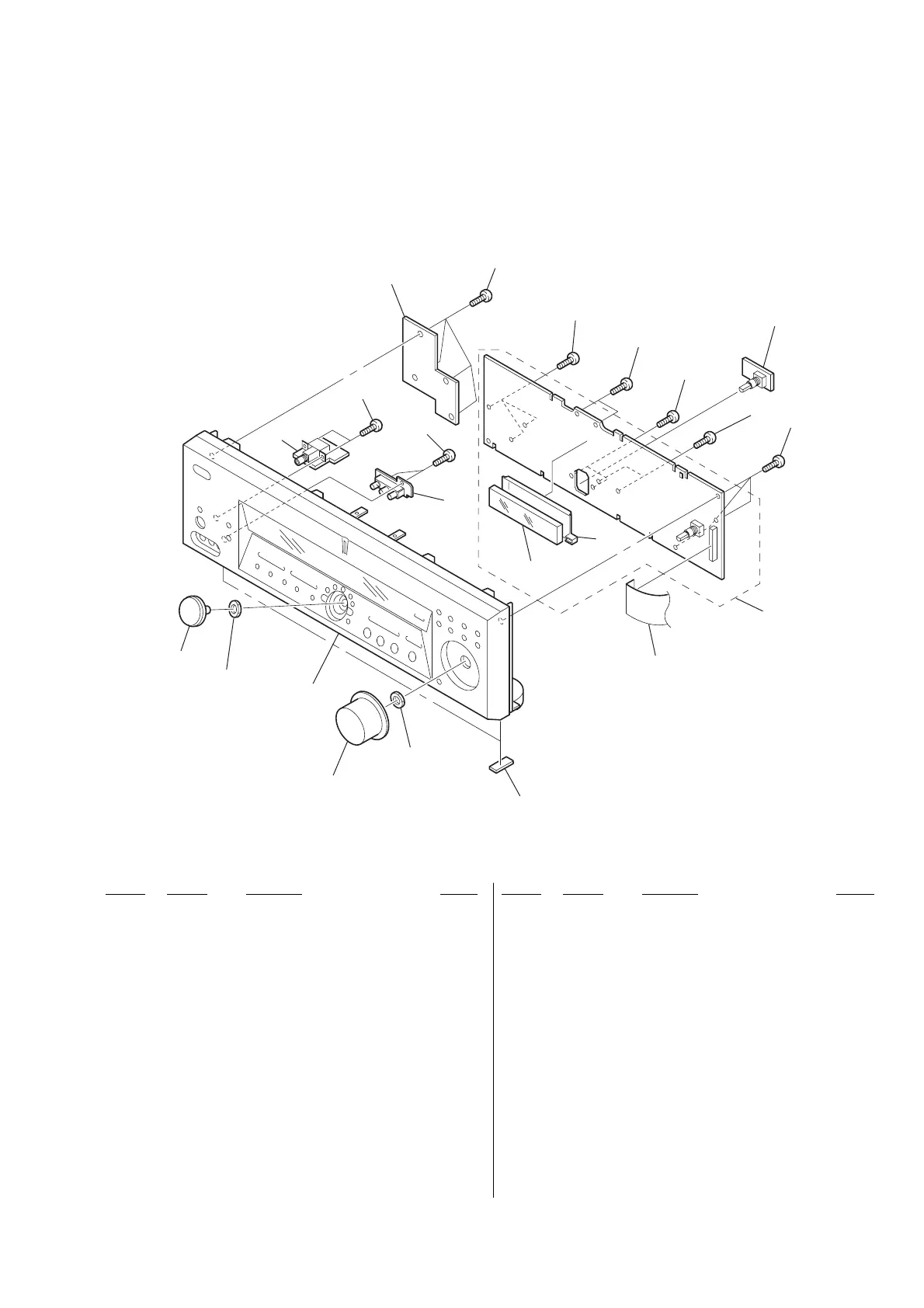

5-2. FRONT PANEL SECTION
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 X-4954-438-1 PANEL ASSY, FRONT (BLACK)...(BLACK) (US)
51 X-4954-439-1 PANEL ASSY, FRONT (BLACK)...(BLACK) (CND)
51 X-4954-440-1 PANEL ASSY, FRONT (BLACK)...(BLACK) (MX)
51 X-4954-441-1 PANEL ASSY, FRONT (SILVER)...(SILVER)
(E,MX,AR)
51 X-4954-442-1 PANEL ASSY, FRONT (GOLD)...(GOLD)
(JE,CH,SP,MY,TW,KR)
51 X-4954-443-1 PANEL ASSY, FRONT (BLACK)...(BLACK)
(AEP,UK,AUS)
51 X-4954-444-1 PANEL ASSY, FRONT (SILVER)...(SILVER)
(AEP,UK,AUS)
52 4-921-941-01 CUSHION
53 1-683-759-11 POWER SW BOARD
54 1-683-763-11 HEADPHONE BOARD
55 1-684-944-11 VIDEO3 BOARD
56 4-951-620-01 SCREW (2.6X8), +BVTP
57 4-232-239-01 KNOB (JOG) (BLACK)...(BLACK)
(US,CND,AEP,UK,AUS,MX)
57 4-232-239-12 KNOB (JOG) (GOLD)...(GOLD)
(JE,CH,SP,MY,TW,KR)
57 4-232-239-22 KNOB (JOG) (SILVER)...(SILVER)
(AEP,UK,E,AUS,MX,AR)
58 1-683-764-11 JOG BOARD
59 A-4727-865-A DISPLAY BOARD, COMPLETE
60 1-773-250-11 WIRE (FLAT TYPE) (27 CORE)
61 4-232-113-01 KNOB (VOL) (BLACK)...(BLACK)
(US,CND,AEP,UK,AUS,MX)
61 4-232-113-12 KNOB (VOL) (SILVER)...(SILVER)
(AEP,UK,E,AUS,MX,AR)
61 4-232-113-22 KNOB (VOL) (GOLD)...(GOLD)
(JE,CH,SP,MY,TW,KR)
62 3-386-245-21 HOLDER (FL)
FL101 1-518-718-11 INDICATOR TUBE, FLUORESCENT
61
62
52
51
57
54
55
53
56
56
56
56
56
56
56
59
58
60
56
supplied with
RV101
FL101
supplied with
RV102
Ver 1.1
