Sony STR-DG510 User Manual

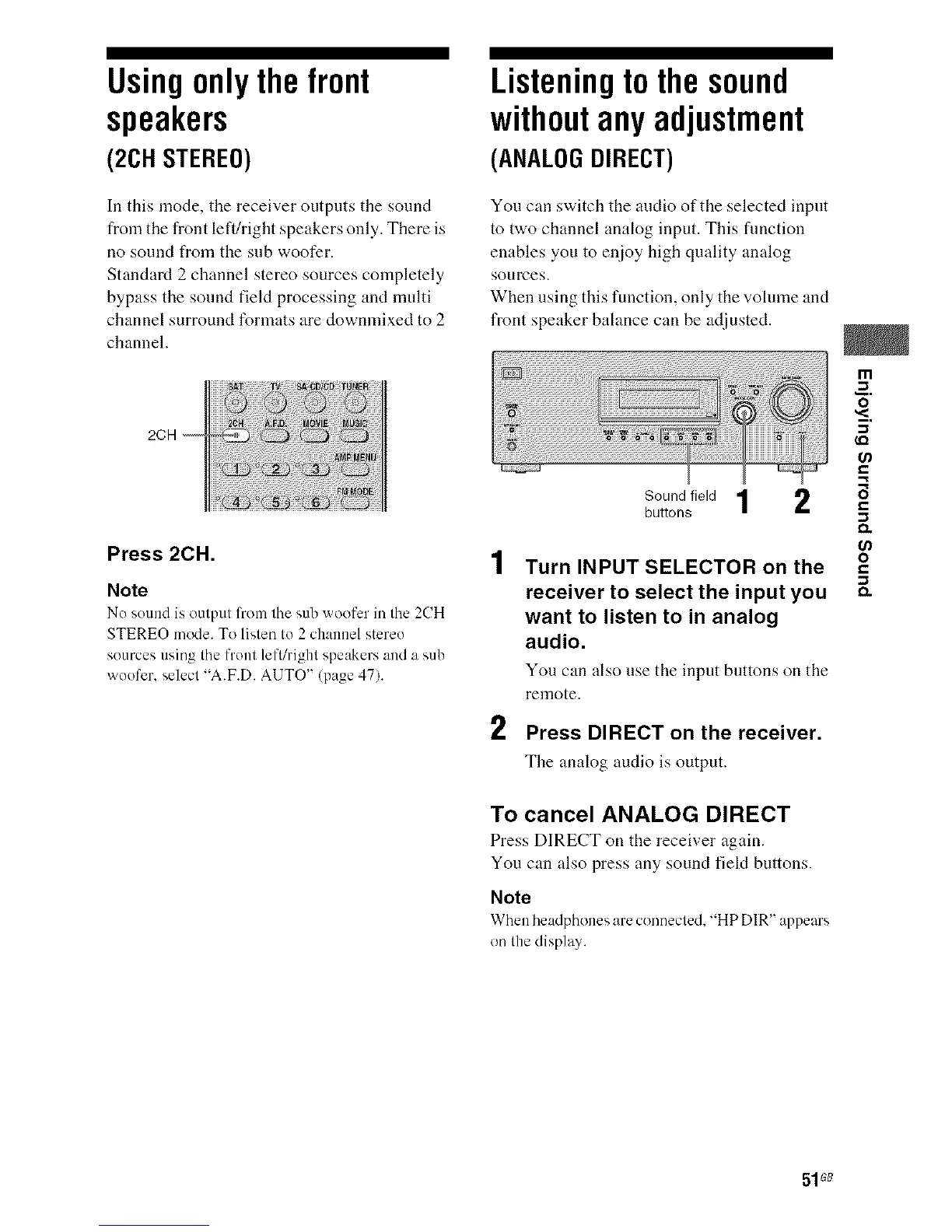

Usingonlythe front
speakers
(2C1-1STEREO)
In this mode, the receiver outputs the sound
from the front left/right speakers only. There is
no sound from the sub woofer.
Standard 2 channel stereo sources completely
bypass the sound field processing and nmlti
channel surround formats are downmixed to 2
channel.
2CH
Press 2CH.
Note
No sound is output lrom thesub woofer in the 2CH
STEREO mode. To listen to 2channel stereo
sources using the front left/rightspeakers and a sub
woofer, select "A.F.D. AUTO" (page 47).
Listeningto thesound
withoutanyadjustment
(ANALOG DIRECT)
You can switch the audio of the selected input
to two channel analog input. This flmction
enables you to enjoy high quality analog
sources.
When using this function, only the volume and
front speaker balance can be adjusted.
Soundfield 1 2
buttons
2
Turn INPUT SELECTOR on the
receiver to select the input you
want to listen to in analog
audio.
You can also use the input buttons on the
remote.
Press DIRECT on the receiver.
The analog audio is output.
To cancel ANALOG DIRECT
Press DIRECT on the receiver again.
You can also press any sound fiekt buttons.
Note
Whenheadphones:u'econnected. "HP DIR" appears
on thedisplay.
m
o
e,
o
e,
51G8

Sony STR-DG510 Specifications

General

Power Output	100 Watts per channel
Number of Channels	5.1
HDMI Inputs	2
HDMI Outputs	1
Dolby Digital	Yes
DTS	Yes
FM/AM Tuner	Yes
Component Video Inputs	2
Component Video Output	1
Digital Audio Inputs (Optical)	2
Digital Audio Inputs (Coaxial)	1
Analog Audio Inputs	4
Headphone Jack	Yes
Frequency Response	10 Hz - 100 kHz
Dimensions	430 x 157.5 x 315 mm (16 15/16 x 6 1/4 x 12 1/2 inches)
Inputs	HDMI, Component Video, Digital Audio (Optical/Coaxial), Analog Audio
Outputs	HDMI, Component
Supported Audio Formats	Dolby Digital, DTS
Output Power	100W per channel (8 ohms, 20Hz-20kHz, 0.09% THD)
