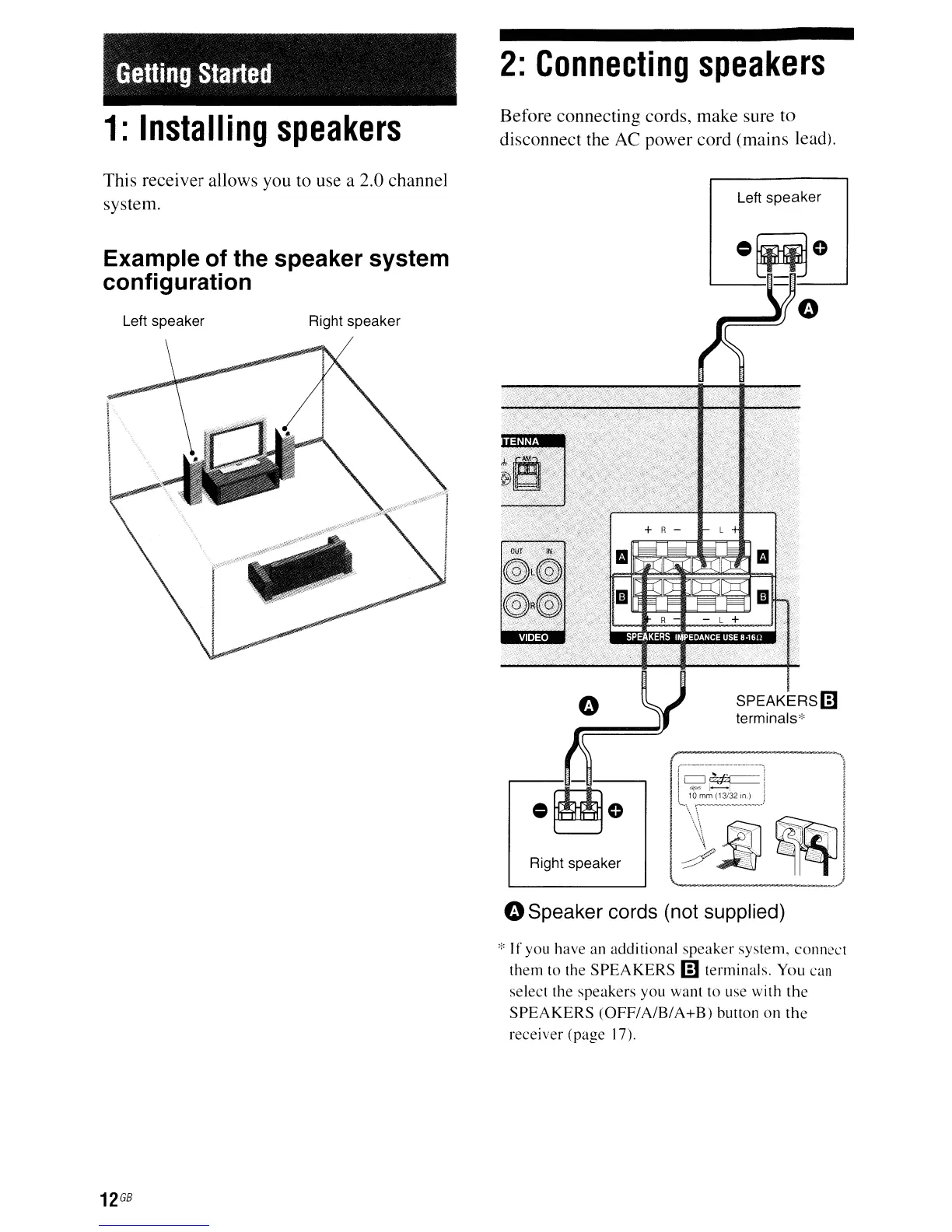

Sony STR-DH100 User Manual

Getting Started
2: Connecting speakers
1: Installing speakers
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).
This receiver allows you to use a 2.0 channel
system.
Left speaker
Example of the speaker system
configuration
SPEAKERS IE)
terminals*
(-~~------j
is?~!
; 10mm (13/32 in_l I
'-\ \~, ~----)
I
'- -"1
Right speaker
Right speakerLeft speaker
"Speaker cords (not supplied)
':' If you have an additional speaker system, connect
them to the SPEAKERS IE) terminals. You can
select the speakers you want to use with
the
SPEAKERS (OFF/A/B/A+B) button on the
receiver (page 17).
12
GB

Sony STR-DH100 Specifications

General

Impedance	8 Ω
Frequency range	20 - 20000 Hz
RMS rated power	200 W
Audio output channels	2.0 channels
Total Harmonic Distortion (THD)	1 %
Power output per channel (20-20KHz@8 Ohm)	100 W
Supported radio bands	AM, FM
Radio Data System (RDS)	Yes
I/O ports	2 x Anten.\\r 1 x DM\\r
Connectivity technology	Wired
Speakers connectivity type	-
Headphone outputs	1
S-Video outputs quantity	No
Product color	Black
Apple docking compatibility	Not supported
Channels quantity	2ch channels
Dimensions (WxDxH)	430 x 132.5 x 279 mm
Power requirements	AC120 V, 60 Hz
Power consumption (standby)	0.3 W

Weight and Dimensions

Weight	6600 g
