1: Installing the speakers
This receiver allows you to use a 7.1 channel
system (7 speakers and one subwoofer).

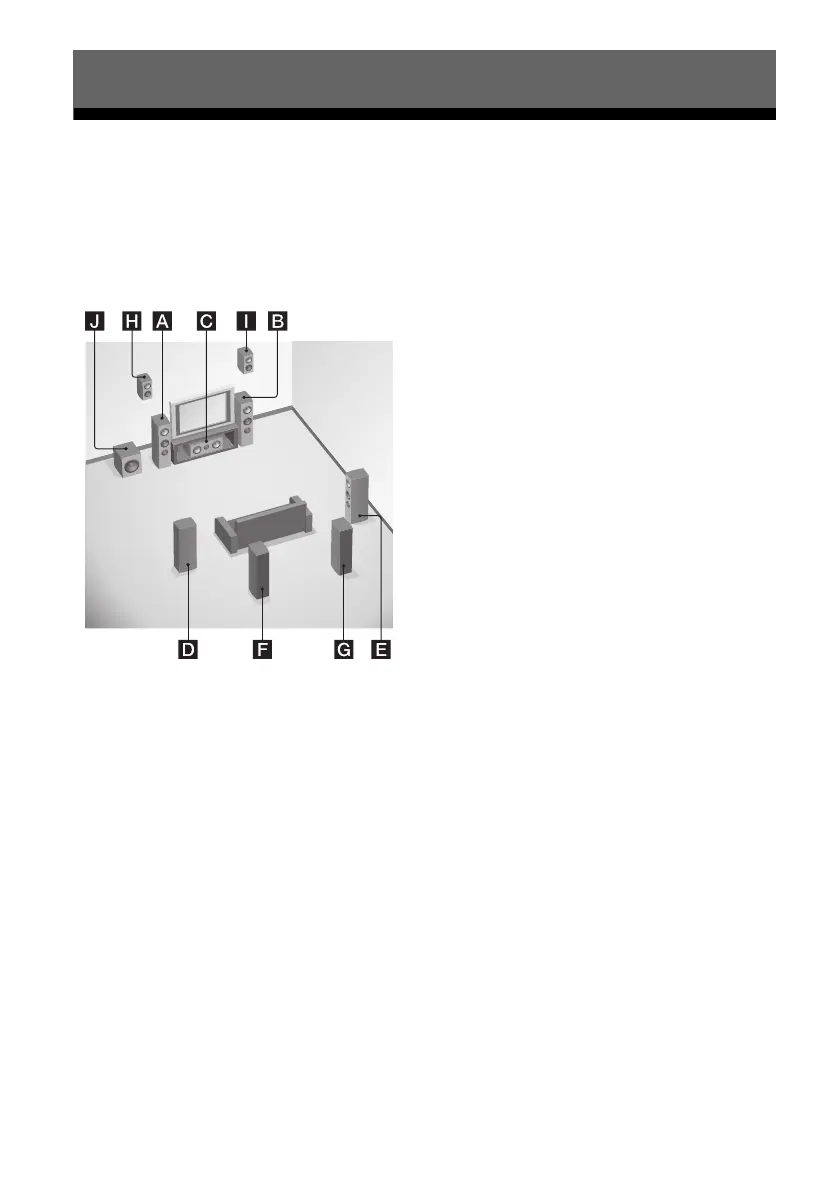

Example of speaker system
configuration
AFront speaker (Left)
BFront speaker (Right)
CCenter speaker
DSurround speaker (Left)
ESurround speaker (Right)
FSurround back speaker (Left)*
GSurround back speaker (Right)*
HFront high speaker (Left)*
IFront high speaker (Right)*
JSubwoofer
* You cannot use the surround back speakers and the
front high speakers simultaneously.
5.1 channel speaker system
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer.
7.1 channel speaker system
using surround back speakers
You can enjoy high fidelity reproduction of
DVD or Blu-ray Disc software recorded sound
in 6.1 channel or 7.1 channel format by
connecting additional one surround back
speaker (6.1 channel) or two surround back
speakers (7.1 channel).
7.1 channel speaker system
using front high speakers
You can enjoy vertical sound effects by
connecting additional two front high speakers
in PLIIz mode (page 53).
