[14] Preparation Connecting audio-visual devices and the antennas (aerials)
Connecting devices with HDMI jacks (for STR-
ZA3000ES)

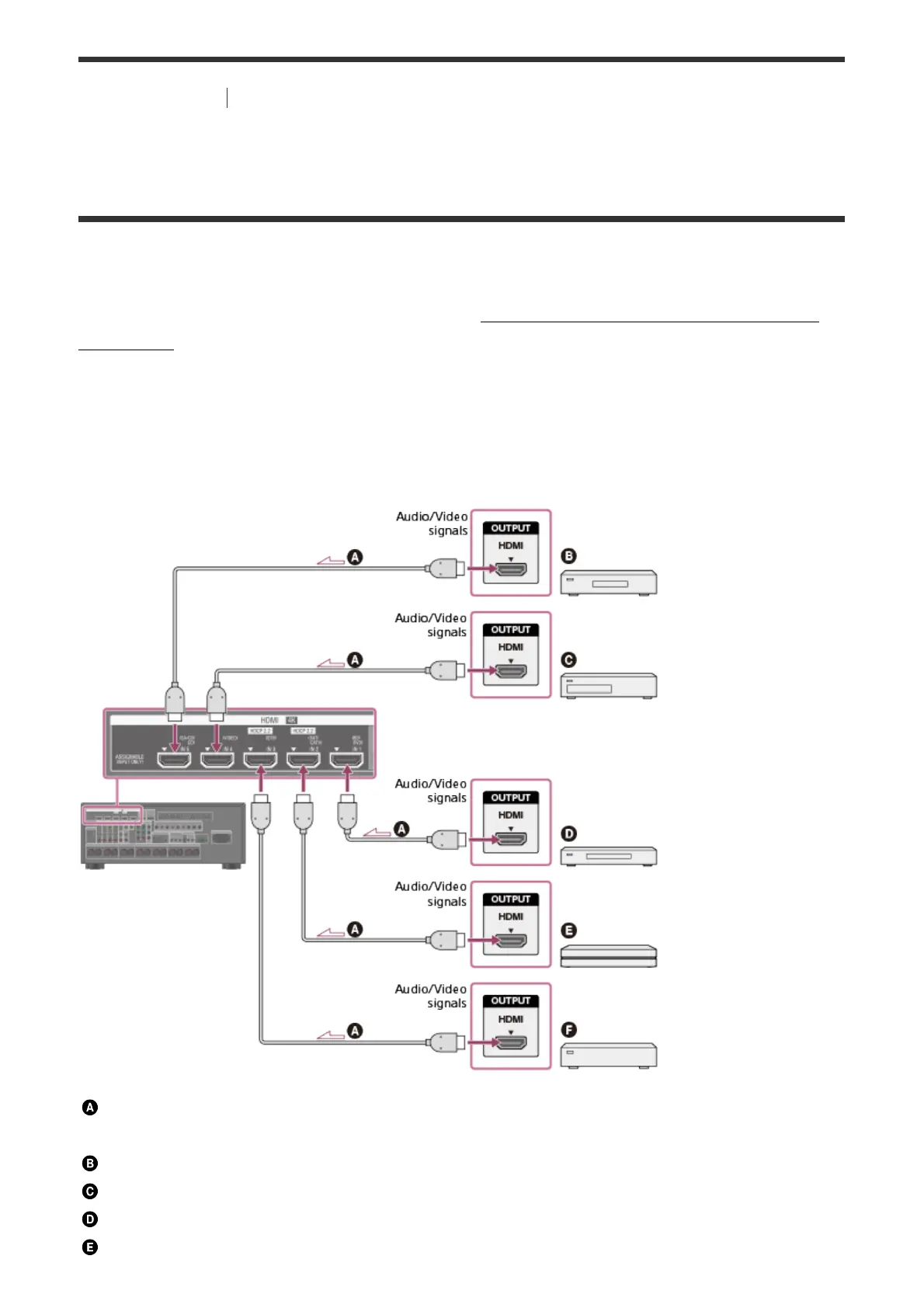

Connect devices to the receiver as illustrated below.
Before connecting cables, be sure to disconnect the AC power cord (mains lead).
If your device does not have an HDMI jack, see “Connecting devices with jacks other than
HDMI jacks.”
The HDMI jacks designated as being “HDCP 2.2” (HDMI IN 2/IN 3, HDMI OUT A/OUT B)
support High-bandwidth Digital Content Protection System Revision 2.2 (HDCP 2.2). To
watch 4K resolution content, connect these HDMI jacks to jacks that support HDCP 2.2 on a
TV or a player. Refer to the operating instructions of the connected device for details.
HDMI cable (not supplied)
Sony recommends that you use an HDMI-authorized cable or HDMI cable made by Sony.
Super Audio CD player, CD player
DVD recorder
Blu-ray Disc Player, DVD player
4K Media Player
