Sony TRINITRON PVM-14L1 User Manual

1-9
PVM-14L1/14L1MDE/20L1
SSM-14L1/20L1

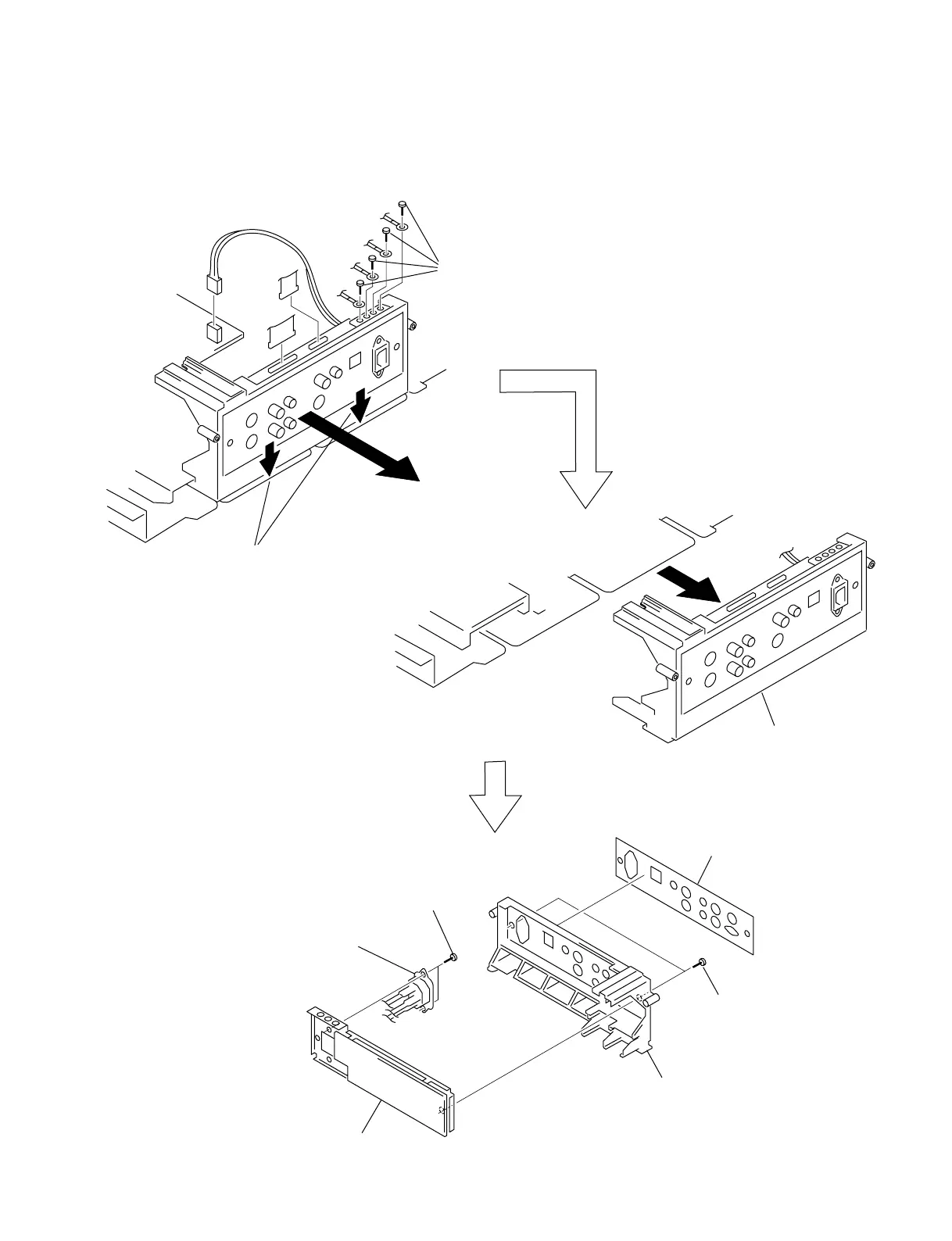

1-6-2. Q Block Assembly and Q Board (20 inch)
. Remove the cabinet and rear panel. (Refer to 1-6-1.)
Push the two areas in the bottom of beznet in the direction of arrow A,
and pull the Q block assembly in the direction of the arrow B.
3
Q block assembly
4
Connector label
6
Connector panel
1
Four screws
(+PS 4 x 8)
5 Two screws
(+PSW 3 x 10)
7 Two screws
(+PSW 3 x 10)
8 AC inlet
9 Q board
A
A
B
CN204
CN201
CN601
