4-1
PVM-14L1/14L1MDE/20L1
SSM-14L1/20L1
Section 4
Semiconductors
IC, Transistor

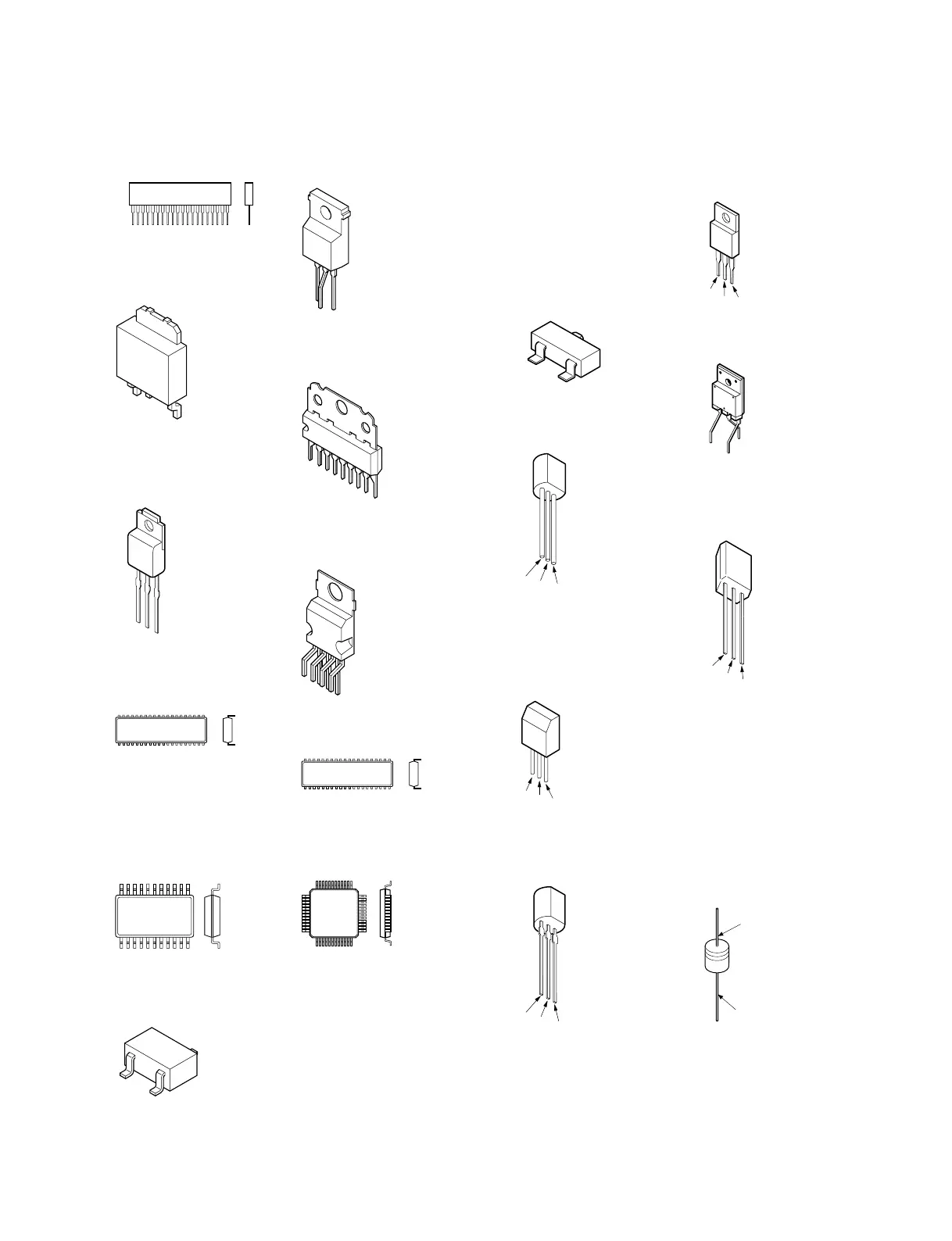

AN5278
MARKING SIDE VIEW
1
9pin SIP
BA033T
1
2
3
BA05T
BA08T
VCC
GND
OUT
BA4558
UPC4558C
1
TOP VIEW
8pin DIP
M24C08-WMN6T
M24C08-WMN6T(A)
MM1113XFBE
NJM2903M
NJM2903M-TE2
1
TOP VIEW
8pin SOP
PST573IMT
1
2
3
SE115N
SE115N (HYBRID)
1
2
3
TDA6108JF/N1B
9
1
TDA8177
7
1
TDA9181T
1
TOP VIEW
16pin DIP
TDA9394H/N1/5.518
TDA9394H/N1/5/1179.518
1
TOP VIEW
80pin QFP
2SA1037AK-T146-QR
2SA1037AK-T146-R
2SC1623-L5L6
2SC2412K-T-146-QR
2SD601A-QRS-TX
2SD601A-Q-TX
DTA144EKA-T146
DTC114EKA-T146
DTC143EKA-T146
DTC144EKA
DTC144EKA-T146
E
B
C
2SA1091-0
2SA1091O-TPE2
E
C
B
2SC3209LK
2SC3209LK-TP
2SD774-34
2SD774-T-3
E
C
B
2SC3941A-Q(TA)
2SC3941A-QR(TA)
E
C
B
2SD1134
2SD1134-C
2SD1585-LK
B
C
E
2SD2578-CA
1
2
3
DTC143ESA
DTC143ESA-TP
B
E
C
1SS133T-77
D1NS4
D1NS4-TA2
RD15ES-B2
RD15ES-T1B2
RD18ES-B2
RD5.1ES-B2
RD5.1ES-T1B2
RD6.8SB2-T1
RD8.2ES-B3
RD8.2ES-T1B3
CATHODE
ANODE
