1-6-5. Picture Tube and Bezel Complete Assembly (20 inch)
. Remove the cabinet and rear panel. (Refer to 1-6-1.)
. Remove the Q block assembly. (Refer to 1-6-2.)
. Remove the A board. (Refer to 1-6-3.)
. Remove the C board. (Refer to 1-6-4.)

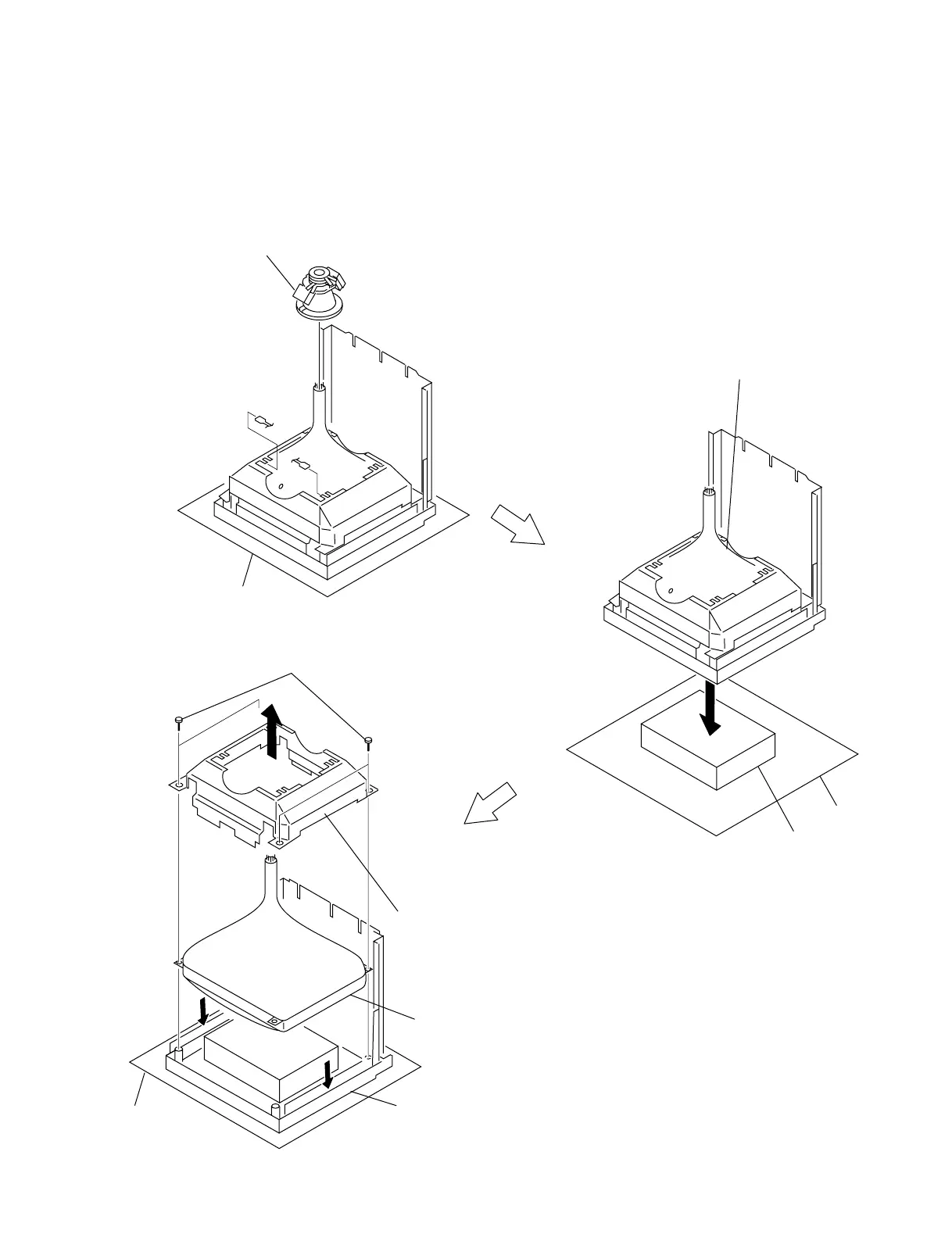

1 Deflection yoke
Cushion
B
B
A
2
Prepare a work bench on the cushion
and place the CRT and bezel assembly
on the work bench.
Cushion
Bench
Note:
Prepare a work bench that can protect surface
of CRT and can withstand the weight of the CRT.
3 Four self tapping screws (M5)
4 Remove the CRT shield assembly
in the direction of the arrow A.
5 Remove the bezel complete assembly
in the direction of the arrow B.
Cushion
6 Picture tube
