Sony TRINITRON PVM-14L1 User Manual

1-4
PVM-14L1/14L1MDE/20L1
SSM-14L1/20L1

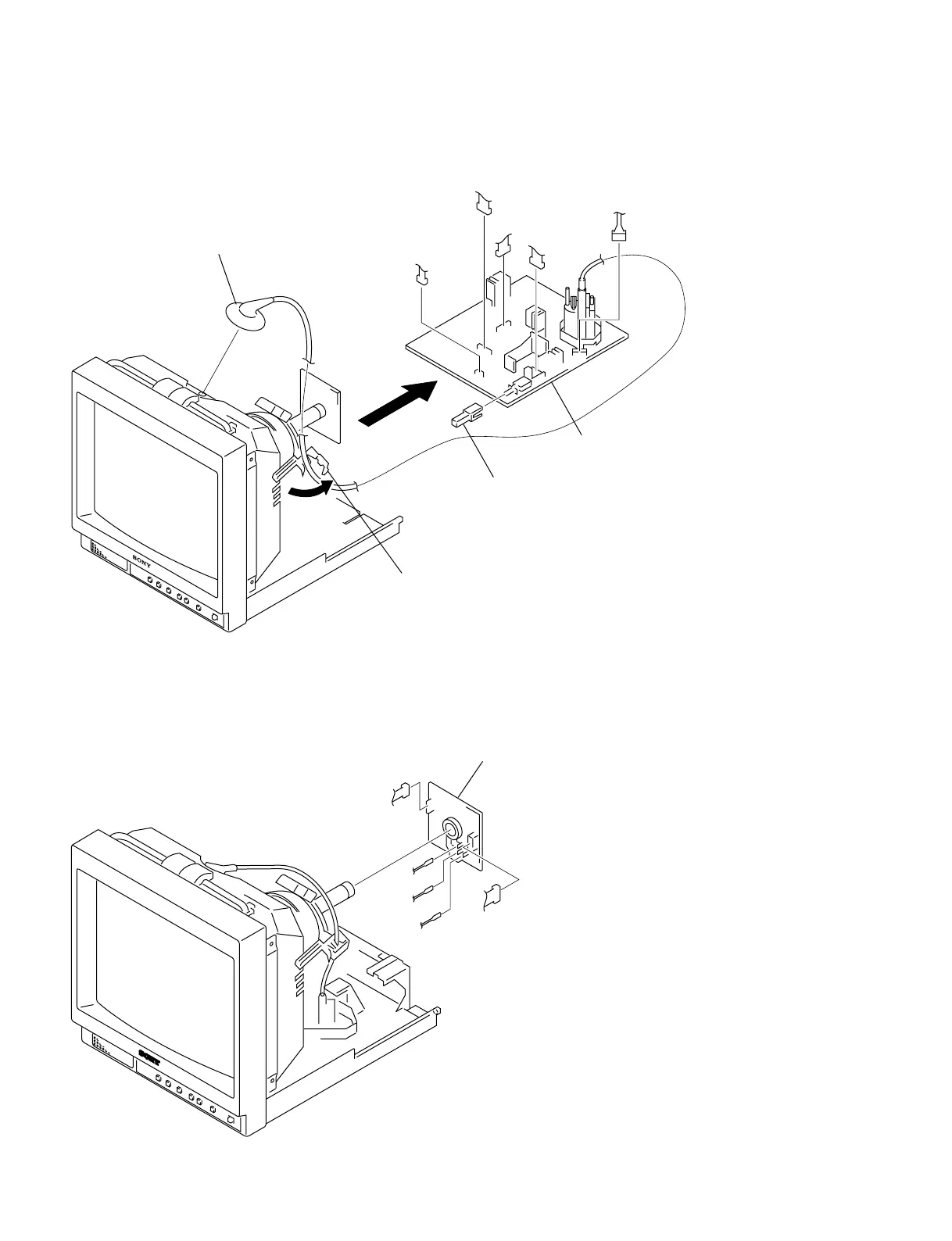

1-3-3. A Board Assembly (14 inch)
. Remove the cabinet and rear panel. (Refer to 1-3-1.)
1-3-4. C Board (14 inch)
. Remove the cabinet and rear panel. (Refer to 1-3-1.)
CN501
CN602
CN502
CN3502
CN002
A
3 Remove the A board
in the direction of the arrow
A .
4 Power switch button
2 Anode cap
1 Open the lead holder.
CN701
CN730
CN720
CN721
CN722
1 C board
