5-2
PVM-14L1/14L1MDE/20L1
SSM-14L1/20L1

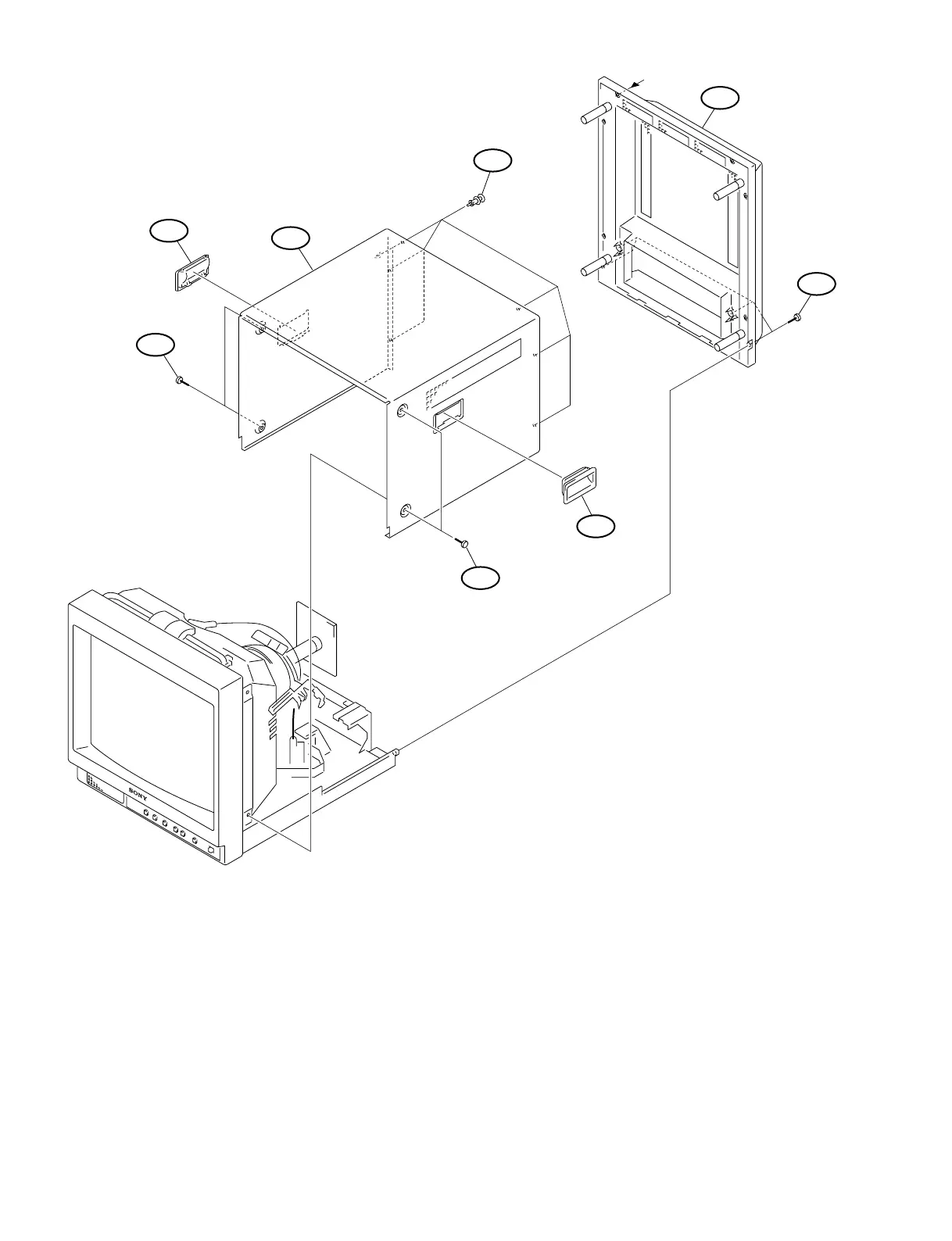

Top Cover Section (14 Inch)
5-2.
Exploded Views
1
5
3
6
4
2
1
5
A
A
No. Part No. SP Description
1 4-847-802-11 s SET SCREW, CLAW 4X8 EP-FE/CU,NI
2 4-039-358-01 s SCREW (4X16), (+) BV TAPPING
3
!
4-050-073-33 s CABINET
4
!
4-050-081-11 s PANEL, REAR
5
!
4-389-320-21 s HANDLE
6 4-391-825-01 s RIVET, NYLON
37
39
Table of Contents
Default Chapter
3
Table of Contents
3
1 Service Overview
5
Appearance Figure (14 Inch)
5
Board Locations (14 Inch)
5
Disassembly (14 Inch)
6
Cabinet and Rear Panel (14 Inch)
6
Q Block Assembly and Q Board (14 Inch)
7
A Board Assembly (14 Inch)
8
C Board (14 Inch)
8
Picture Tube and Bezel Complete Assembly (14 Inch)
9
Anode Cap (14 Inch)
10
Appearance Figure (20 Inch)
11
Board Locations (20 Inch)
11
Disassembly (20 Inch)
12
Cabinet and Rear Panel (20 Inch)
12
Q Block Assembly and Q Board (20 Inch)
13
A Board (20 Inch)
14
C Board (20 Inch)
14
Picture Tube and Bezel Complete Assembly (20 Inch)
15
Anode Cap (20 Inch)
16
Warning on Power Connection
16
2 Set-Up Adjustment
17
Equipment Required
17
Preparations (1)
17
Preparation (2). Initialization
22
Writing Model Data
22
Picture Output
22
Landing Adjustment (1)
22
Deflection Yoke Neck Rotation Adjustment
24
Convergence Adjustment (1)
25
Convergence Adjustment (2)
26
Landing Adjustment (2)
26
Focus Adjustment
26
White Balance Adjustment
27
Sub Bright Adjustment
27
White Balance Adjustment [D65]
27
White Balance Adjustment [D93]
27
Deflection Adjustment
28
525 Vertical Deflection Adjustment
28
Horizontal Deflection Adjustment
29
Sub Contrast Adjustment
30
Adjustment of NTSC Mode
31
NTSC Composite Input
31
NTSC Y/C Input
31
Adjustment of PAL Mode
31
PAL Composite Input
31
PAL Y/C Input
31
3 Safety Related Adjustment
33
B Voltage Check
33
Protection Circuit Confirmation
33
HV Protector Circuit Confirmation
33
4 Semiconductors
35
5 Spare Parts
37
Notes on Repair Parts
37
Exploded Views
38
Electrical Parts List
46
6 Block Diagrams
59
Q, a (1/2), C
59
7 Diagrams
61
Frame Schematic Diagram
62
Frame
62
Schematic Diagrams and Board Layouts
63
C (14 Inch)
72
C (20 Inch)
74
C (14 Inch)
74
C (20 Inch)
75
