2-13
PVM-14L1/14L1MDE/20L1
SSM-14L1/20L1
2-13-2. 625 Vertical Deflection Adjustment
1. Receive 625 SPCB signal.
2. Set the following settings.
CONTRAST 8 80
BRIGHTNESS 8 0
3. Enter service mode.
4. Adjust V.SIZE roughly to 12 blocks with [V SIZE] in
[DEFLECTION]-[RASTER V] at SERVICE MENU.
And adjust V.CENT with [V CENTER].
n
Confirm these items and data as follow.
(14 inch) (20 inch)
V. SCROLL : 13 13
V. SLOPE : 33 33
V. ZOOM : 45 50
5. Receive 625 Cross-Hatch signal.

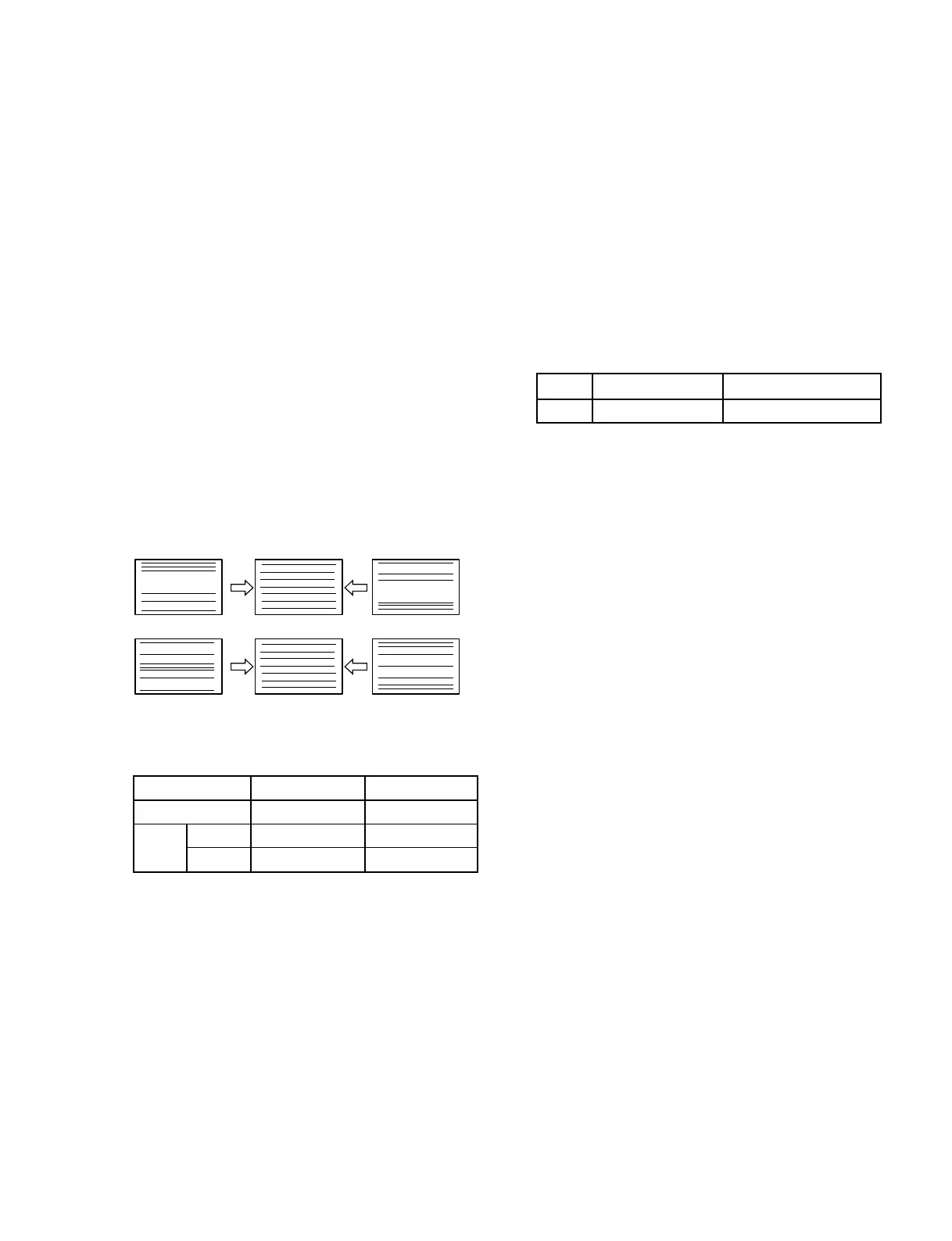

6. Adjust V.LIN with [V LINEARITY], [S-CORREC-
TION] in [DEFLECTION]-[GEOMETRY] at SER-
VICE MENU.
7. Adjust V.SIZE with [V SIZE] in [DEFLECTION]-
[GEOMETRY] at SERVICE MENU.
NORMAL V.SIZE standard
525 SPCB 625 SPCB
4 : 3 12.8 ±0.2 blocks 12.8 ±0.3 blocks
16 : 9 14 inch 157 ±2 mm 157 ±2 mm
20 inch 221 ±3 mm 221 ±3 mm
8. Repeat the manual 6 and 7 until be satisfy the both
specifications.
9. Set to 16:9 mode.
10. Adjust 16:9 V.SIZE with [V SIZE] in [DEFLEC-
TION]-[GEOMETRY] at SERVICE MENU
Confirm these items and data as follows.
(14 inch) (20 inch)
V. SCROLL : 13 13
V. SLOPE : 25 25
V. ZOOM : 45 50
11. Back to 4 : 3 mode.
V LINEARITY
S-CORRECTION
2-14. Horizontal Deflection Adjustment
2-14-1. 525 Horizontal Deflection Adjustment
1. Receive 525 SPCB signal.
2. Set to following settings.
CONTRAST 8 80
BRIGHTNESS 8 0
3. Enter service mode.
4. Adjust H.SIZE with [H SIZE] in [DEFLECTION]-
[RASTER H] at SERVICE MENU.
NORMAL H.SIZE standard
525 SPCB 625 SPCB
4 : 3 16.8 ±0.2 blocks 16.8 ±0.3 blocks
5. Adjust horizontal deflection with [PIN AMP], [PIN
PHASE], [U CORNER PIN], [L CORNER PIN], [V
ANGLE], [V BOW] in [DEFLECTION]-[GEOME-
TRY] at SERVICE MENU.
6. Set to 16:9 mode.
7. Adjust horizontal deflection with [PIN AMP], [PIN
PHASE], [U CORNER PIN], [L CORNER PIN], [V
ANGLE], [V BOW] in [DEFLECTION]-[GEOME-
TRY] at SERVICE MENU.
To Next Page
