20
WM-GX400
SECTION 5
EXPLODED VIEWS
NOTE :
• -XX, -X mean standardized parts, so they
may have some difference from the original
one.
• Items marked “ * ”are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference
number in the exploded views are not
supplied.
• Abbreviation
CND : Canadian
FR : French
EA : Saudi Arabia
CH : Chinese
JEW : Tourist
E : Indication of country of origin
(ST, MONO)
9E : No Indication of country of origin
5E : Indication of country of origin
(DX, LOCAL)
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

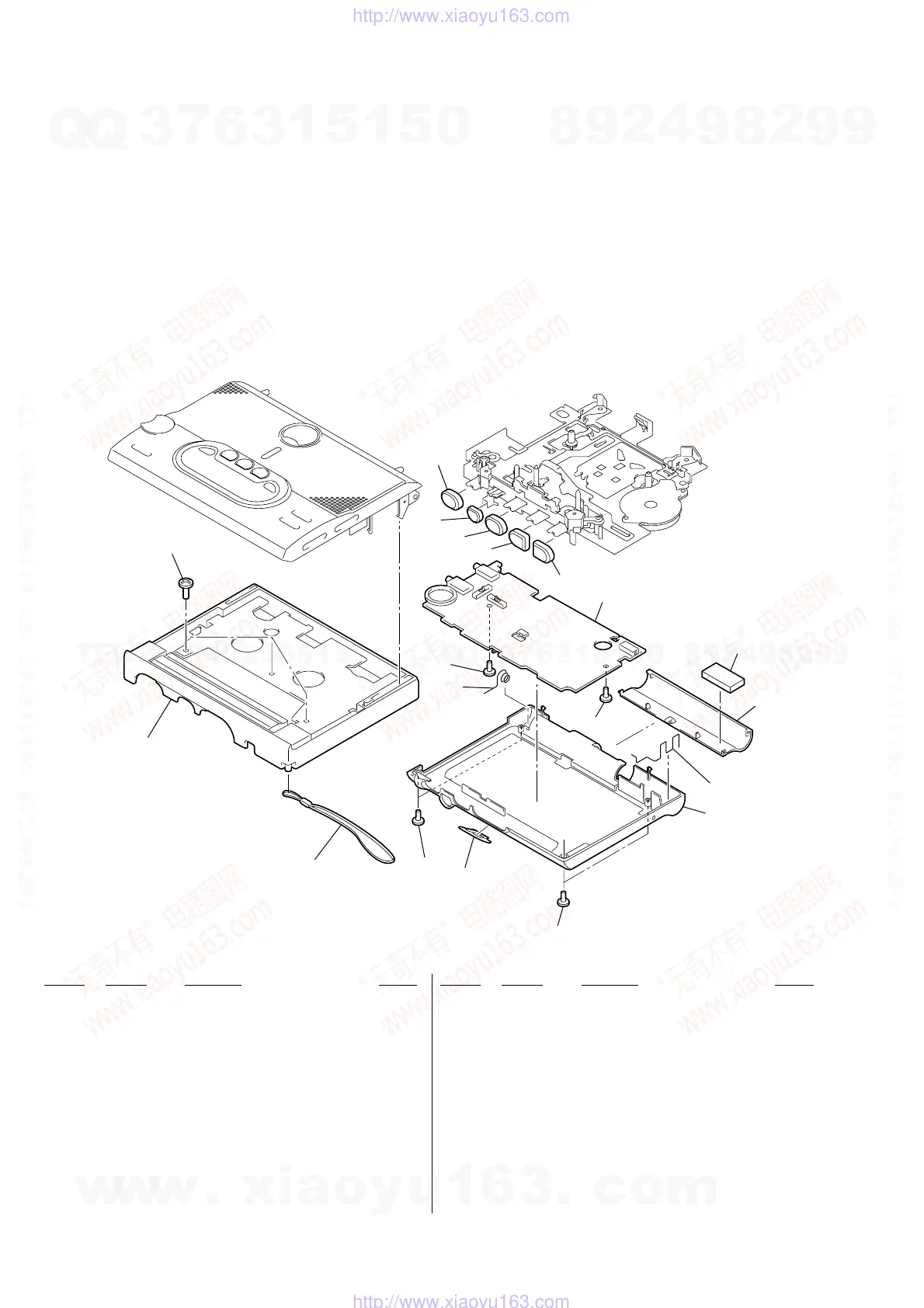

5-1. CABINET (REAR) SECTION
1 3-328-319-01 STRAP, HAND
2 3-225-573-31 CABINET (FRONT)(EXCEPT CND,5E)
2 3-225-573-41 CABINET (FRONT)(CND,5E)
3 3-225-572-11 BUTTON (REC)
4 3-225-569-11 BUTTON (STOP)
5 3-225-568-11 BUTTON (PLAY)
6 3-225-571-11 BUTTON (REW)
7 3-225-570-11 BUTTON (FF)
* 8 A-3021-364-A MAIN BOARD, COMPLETE
(AEP,E,9E,CH,EA,JEW)
* 8 A-3021-367-A MAIN BOARD, COMPLETE (CND,5E)
* 8 A-3021-369-A MAIN BOARD, COMPLETE (FR)
9 3-927-521-01 CUSHION (BATTERY CASE LID)
10 3-225-577-11 LID, BATTERY CASE
11 3-226-525-01 TERMINAL (+)
12 3-345-648-95 SCREW (M1.4), TOOTHED LOCK
13 3-226-526-01 TERMINAL (–)
14 3-225-576-31 CABINET (REAR) (EXCEPT 9E)
14 3-225-576-41 CABINET (REAR) (9E)
15 3-318-203-92 SCREW (B1.7X9), TAPPING
16 3-226-542-01 KNOB (PAUSE)
17 3-389-523-23 SCREW (IB LOCK)
1
2
17
16
15
15
14
11
10
9
12
8
13
12
7
6
5
4
3
