WM-GX400
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

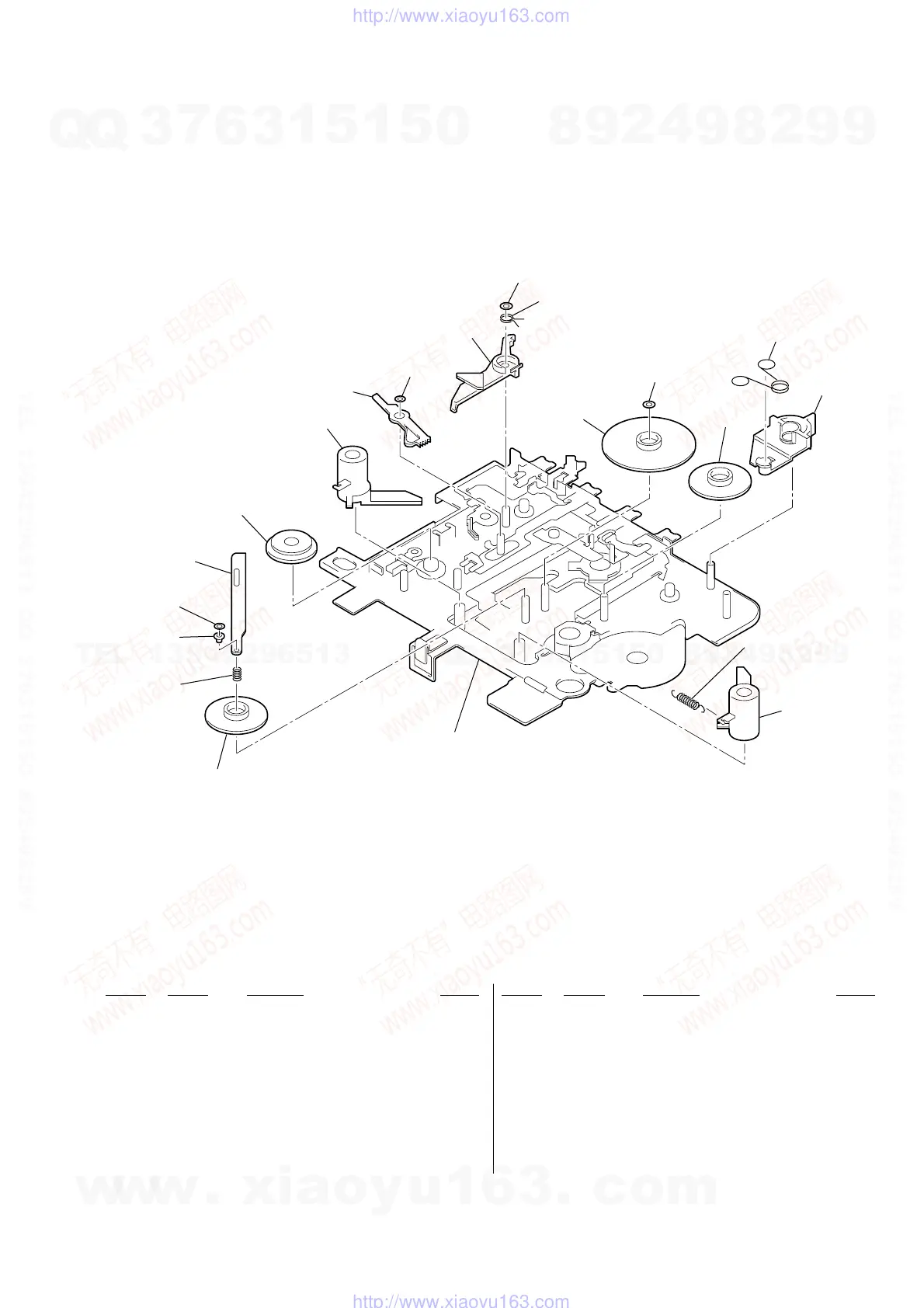

5-4. MECHANISM SECTION-2 (MT-WMGX400-175)
151 X-3379-878-1 CHASSIS ASSY
152 3-225-385-01 GEAR (B)
153 3-229-063-01 SPRING (UD) (R)
154 3-019-778-01 SLEEVE (MS)
155 3-728-091-01 WASHER, STOPPER
156 3-225-427-01 LEVER (WASHER)
157 3-225-384-01 GEAR (A)
159 3-225-395-01 LEVER (REW ROTARY)
160 3-225-392-01 LEVER (END DETECTION)
161 3-229-064-01 WASHER, STOPPER
162 3-225-393-01 LEVER (SHUT/OFF)
163 3-225-448-01 SPRING (SHUT/OFF), TORSION
164 3-321-813-71 WASHER, COTTER POLYETHYLENE
165 X-3379-881-1 CLUTCH ASSY
166 3-315-384-31 WASHER, STOPPER
167 3-225-438-01 SPRING (NR SLIDER), TORSION
168 3-225-396-01 LEVER (DIR)
169 3-225-388-01 GEAR (D)
170 3-225-394-01 LEVER (FF ROTARY)
171 3-225-444-01 SPRING (FR ROTARY), TENSION
