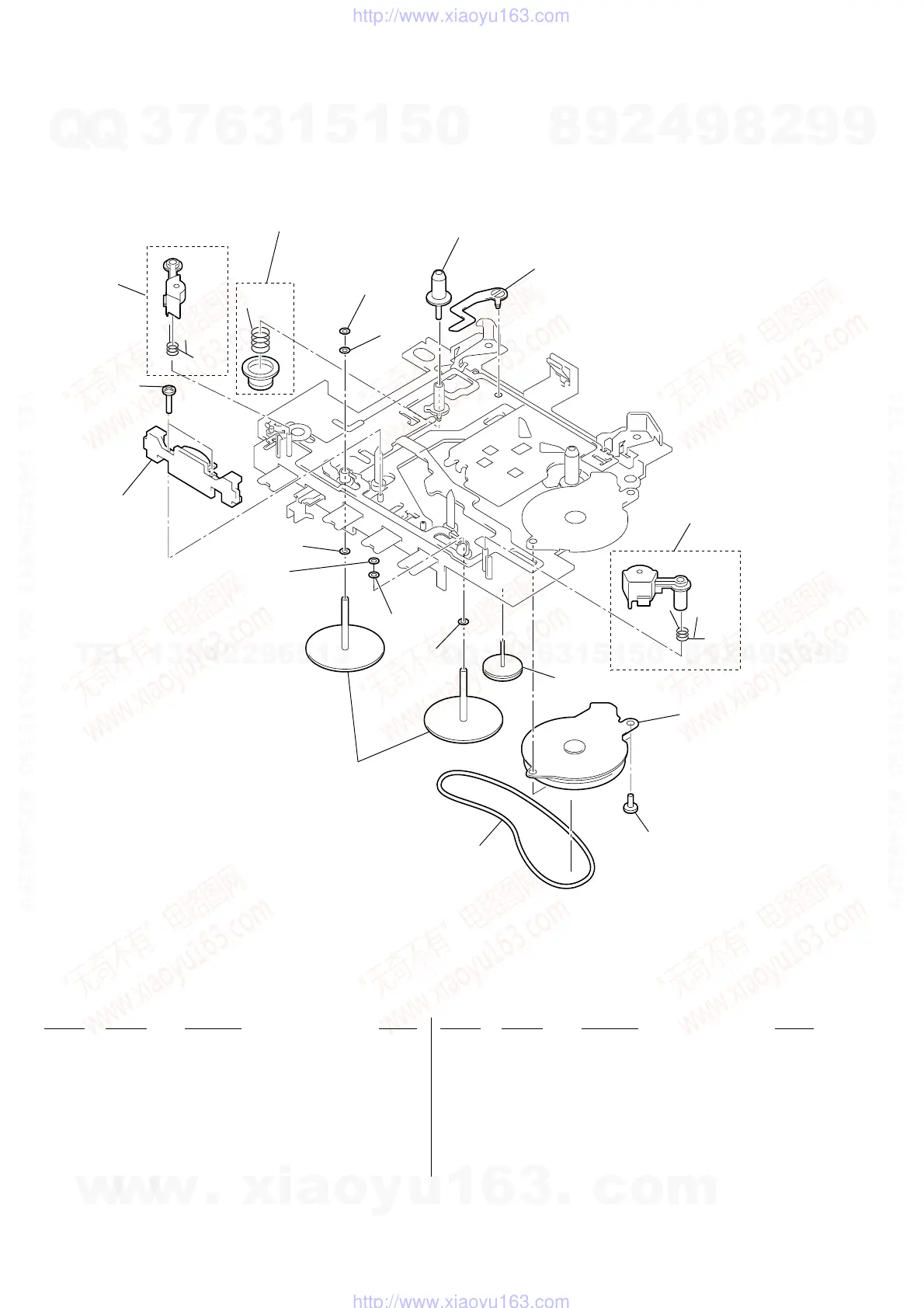

5-3. MECHANISM SECTION-1 (MT-WMGX400-175)
101 3-704-197-01 SCREW (M1.4), SPECIAL HEAD
102 3-225-429-01 BELT (AR)
103 3-225-390-01 PULLEY (REVERSE)
104 X-3379-877-1 FLY ASSY, CAPSTAN
105 3-386-694-01 WASHER
106 3-029-278-01 WASHER
107 3-029-275-01 WASHER (STOPPER N)
108 3-042-480-01 SCREW (M1.4)
109 X-3379-882-1 PINCH (N) ASSY, ARM
110 3-019-776-01 GEAR (REEL-S)
111 3-225-399-01 LEVER (N SHUT OFF)
112 X-3379-883-1 PINCH (R) ASSY, ARM
HRPE3011-500-685-11 HEAD, MAGNETIC (REC/PB/ERASE)
M601 1-763-687-11 MOTOR, DC(CAPSTAN/REEL)
(INCULUDING PULLY)
110
107
106
105
105
103
102
101
107
106
104
111
109
112
108
