XAV-W1
3-216-785-41 (1)

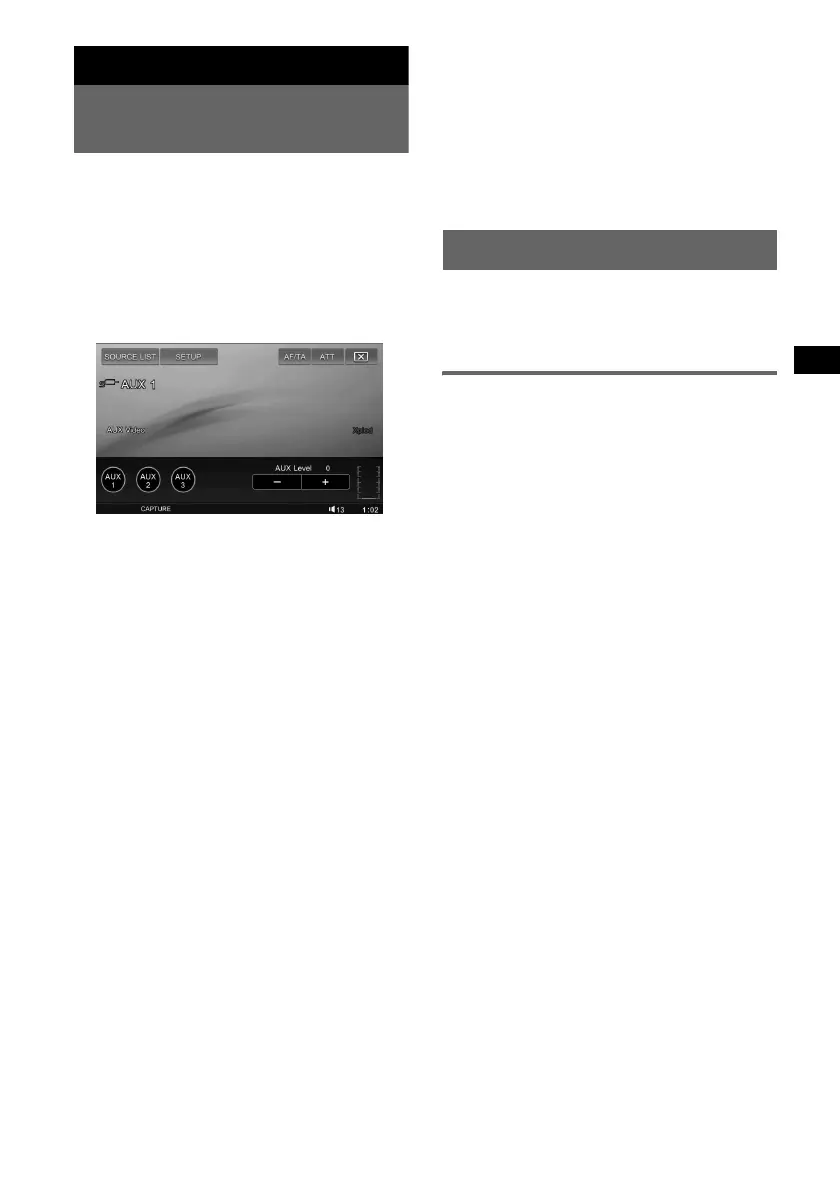

Using Optional Equipment
Auxiliary audio/video
equipment
You can connect up to 3 optional devices, such as
portable media player, game, etc., to the AUX IN
1, AUX IN 2, and AUX IN 3/BUS AUDIO IN
terminals on the unit.
Selecting auxiliary device
1 Touch “SOURCE LIST,” then “AUX.”
The AUX display appears.
2 Touch “AUX 1,” “AUX 2,” or “AUX 3” to
select the device.
Operate by the portable device itself.
Adjusting the volume level
Be sure to adjust the volume for each connected
device before playback.
The volume level is common to “AUX 1,” “AUX
2,” and “AUX 3.”
Note
The input level may be high if the sound distortion of
AUX input occurs. Check the input level by the level
meter in the bottom right corner of the display.
If the meter indicates a peak value, lower the input
level.
1 Turn down the volume on the unit.
2 Touch “SOURCE LIST,” then “AUX.”
The AUX display appears.
3 Start playback of the portable device at a
moderate volume.
4 Set your usual listening volume on the unit.
5 Touch –/+ in the “AUX Level” box repeatedly
to adjust the level.
The level is adjustable in single steps, between
–6 and +18.
Setting the type of device
By setting the type (video or audio) of each
connected device, the background screen can be
switched accordingly.
To set the type, while the unit is off, select
“SETUP” c “System” c “AUX Setting” c
“AUX 1,” “AUX 2,” or “AUX 3” (the device) c
“Video” or “Audio.”
For details, see page 44.
Back camera/navigation device
By connecting the optional back camera or
navigation device to the NAVI/CAMERA IN
terminal, you can display the picture from the
back camera/navigation device.
Displaying the picture
To display the picture from a back camera/
navigation device, you need to activate the
external video input.
To activate, select “SETUP” c “System” c
“External Video Setting” c “Input” c “Back
Camera” or “Navigation.”
For details, see page 45.
To show the picture from the navigation device,
select “SETUP” c “Screen” c “Screen” c
“Navigation.”
The navigation display appears on the
background screen, and the sound from the
current source is output.
For details, see page 36.
The picture from back camera appears when the
back lamp lights up (or the shift lever is set to the
R (reverse) position).
Notes
• When backing up your car, watch the surroundings
carefully for safety. Do not depend on the back
camera exclusively.
• The picture from a back camera/navigation device
does not appear in the rear monitor.
Setting the color system
Switching the color system to NTSC or PAL may
be necessary depending on the back camera/
navigation device.
To switch, select “SETUP” c “System” c
“External Video Setting” c “Color System” c
“NTSC” or “PAL.”
For details, see page 45.

Sony XAV-W1 Specifications

Power

power consumption (in operation)	45 W
output power	52 W x 4
current drain	3 - 8 amps

Audio Specifications

output impedance	4-8 Ohms
sensitivity (FM usable)	9 dBf
signal-to-noise ratio (DVD/CD player)	120 dB

Display

display size	7 inches
aspect ratio	16:9
display technology	TFT Active Matrix LCD

Weight and Dimensions

weight	2.4 kg
dimensions	178 x 100 x 189 mm
tilt range	45°
