Transition control block
1
Set the independent key transition type.
The independent key transition type is set using the
menu (see page 103) or Flexi Pad control block (see
page 103).
2
Set the independent key transition rate.
The independent key transition rate is set using the
menu (see page 104), or utility/shotbox control block
and numeric keypad control block (see page 104).
3
Execute the independent key transition on the
transition control block or independent key transition
control block.
To insert or remove the key gradually with a mix or
wipe, press the [AUTO TRANS] button. This executes
the transition at the preset transition type and transition
rate.
To insert/remove the key instantaneously, press the
[KEY1 ON] to [KEY8 ON] buttons (or the [KEY ON]
button for the corresponding key).
• In an independent key transition, the pattern limit
function is not available.
• When the following DME effects are set, the DME
effects may be applied during wipe transitions. If the
effects are not necessary, cancel the DME settings.
-Trail
- Motion Decay
-Wind
When the Keyframe Strobe effect is set, the effects are
equivalent to operation using keyframes. In this case as
well, cancel the unnecessary DME settings.
Executing an independent key transition
(key fader control block)
Key fader control block
1
Select the target key to operate using the key
delegation buttons.
2
Set the transition type using the independent key
transition type selection buttons.
Press the [MIX], [WIPE], [DME WIPE], or [CUT]
button, turning it on.
When [Independ] is selected in the <Key Transition>
group of the Engineering Setup >Switcher >Transition
menu (7334), you can set the transition type used when
inserting and removing a key.
If the transition type used when inserting a key is
displayed, you can select the transition type used when
removing a key by pressing and holding the [SHIFT]
button and pressing an independent key transition type
selection button. If the transition type used when
removing a key is displayed, you can select the
transition type used when inserting a key using the
same operation.
You can check the specified independent key
transition type on the display (see page 103).
3
Set the independent key transition rate.
The independent key transition rate is set using the
menu (see page 104), or utility/shotbox control block
and numeric keypad control block (see page 104).
4
Execute the independent key transition.
Notes

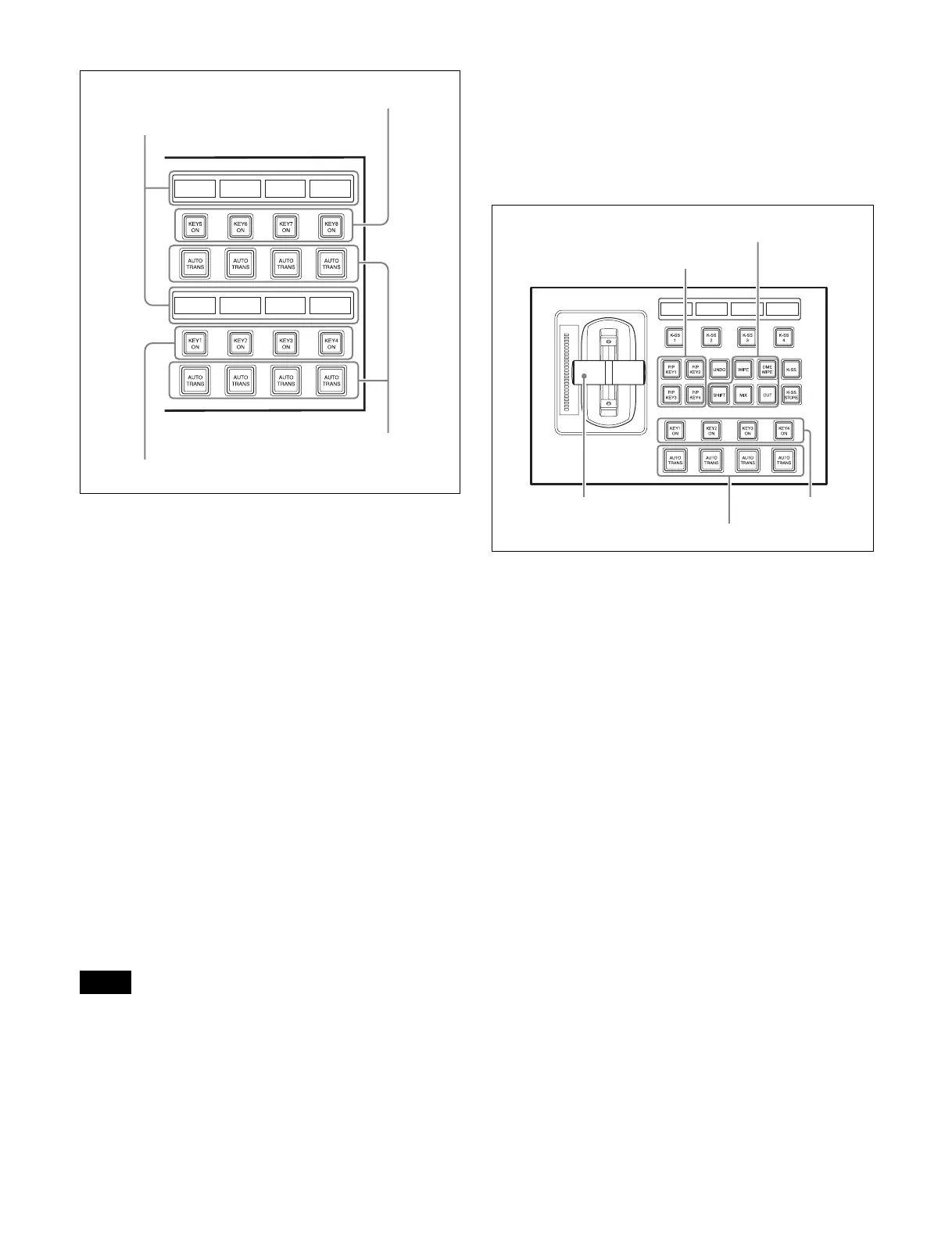

Independent key transition display section
AUTO TRANS button
KEY1 ON to KEY4 ON buttons
KEY5 ON to KEY8 ON buttons
Fader lever
Key delegation buttons
Independent key transition type selection buttons
KEY ON buttons
AUTO TRANS buttons
