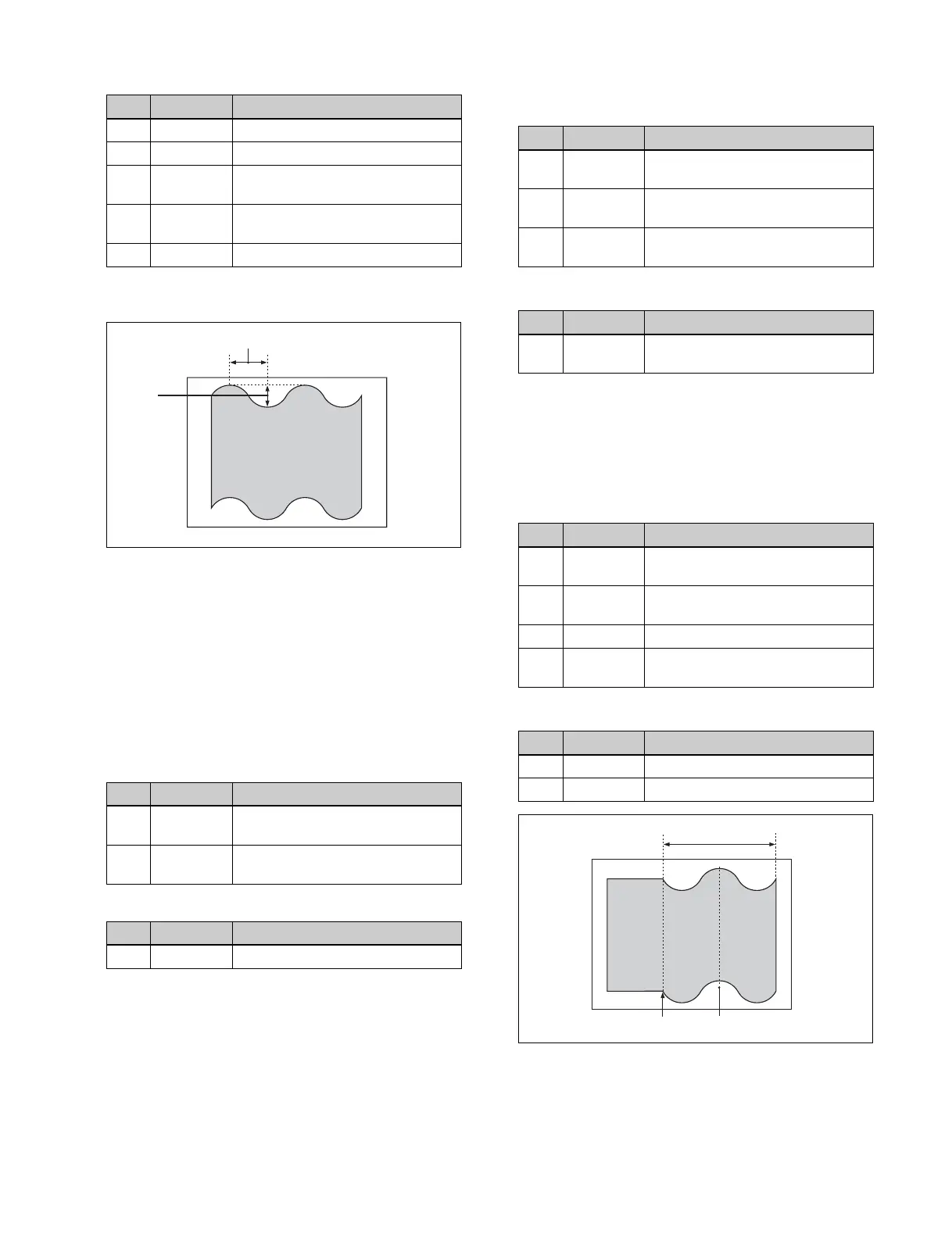

When [Size] is selected
a) Set when [Lock] is enabled.
b) Set when [Lock] is disabled.
To stop the wave
Press [Lock], turning it on.
The wave alternately stops and starts each time the button
is pressed.
To select the waveform
1 Press [Form].
2 Set the following parameters.
When [H&V] is selected in the <Mode> group
When [Size] is selected in the <Mode> group
a) 1 (SINE): Sine wave
2 (PARABOLA): Parabolic wave
3 (TRIANGLE): Triangular wave
4 (RECTANGLE): Rectangular wave
5 (CIRCLE): Circular wave
6 (CUBIC): Cubic curve wave
To randomize the modulated waveform
1 Press [Random], turning it on.
2 Set the following parameters.
When [H&V] is selected in the <Mode> group
When [Size] is selected in the <Mode> group
To limit the wave range
1 Press [Range], turning it on.
2 Set the following parameters.
When [H&V] is selected in the <Mode> group
When [Size] is selected in the <Mode> group
To smooth the range envelope when the wave
range is limited
1 Press [Range Envelope], turning it on.
No. Parameter Adjustment
1 Amp H Amplitude of wave
2 Freq H Frequency of wave
3 Offset H
a)
Phase shift direction and offset of
wave in horizontal direction
4 Speed H
b)
Direction of travel and speed of
wave
5 Slant Slant of wave
No. Parameter Adjustment
1 Form H Type of waveform in horizontal
direction
a)
2 Form V Type of waveform in vertical
direction
a)
No. Parameter Adjustment
1 Form H Type of waveform
a)
Offset
Amp
No. Parameter Adjustment
1 Random H Degree of randomness in
horizontal waveform modulation
2 Random V Degree of randomness in vertical
waveform modulation
3 Random All Degree of randomness in both
vertical and horizontal directions
No. Parameter Adjustment
1 Random H Degree of randomness in
waveform modulation
No. Parameter Adjustment
1 Size H Level of horizontal wave
modulation
2 Offset H Center point of horizontal
modulation range
3 Size V Level of vertical wave modulation
4 Offset V Center point of vertical modulation
range
No. Parameter Adjustment
1 Size H Level of wave modulation
2 Offset H Center point of modulation range
Size
Envelope Offset
