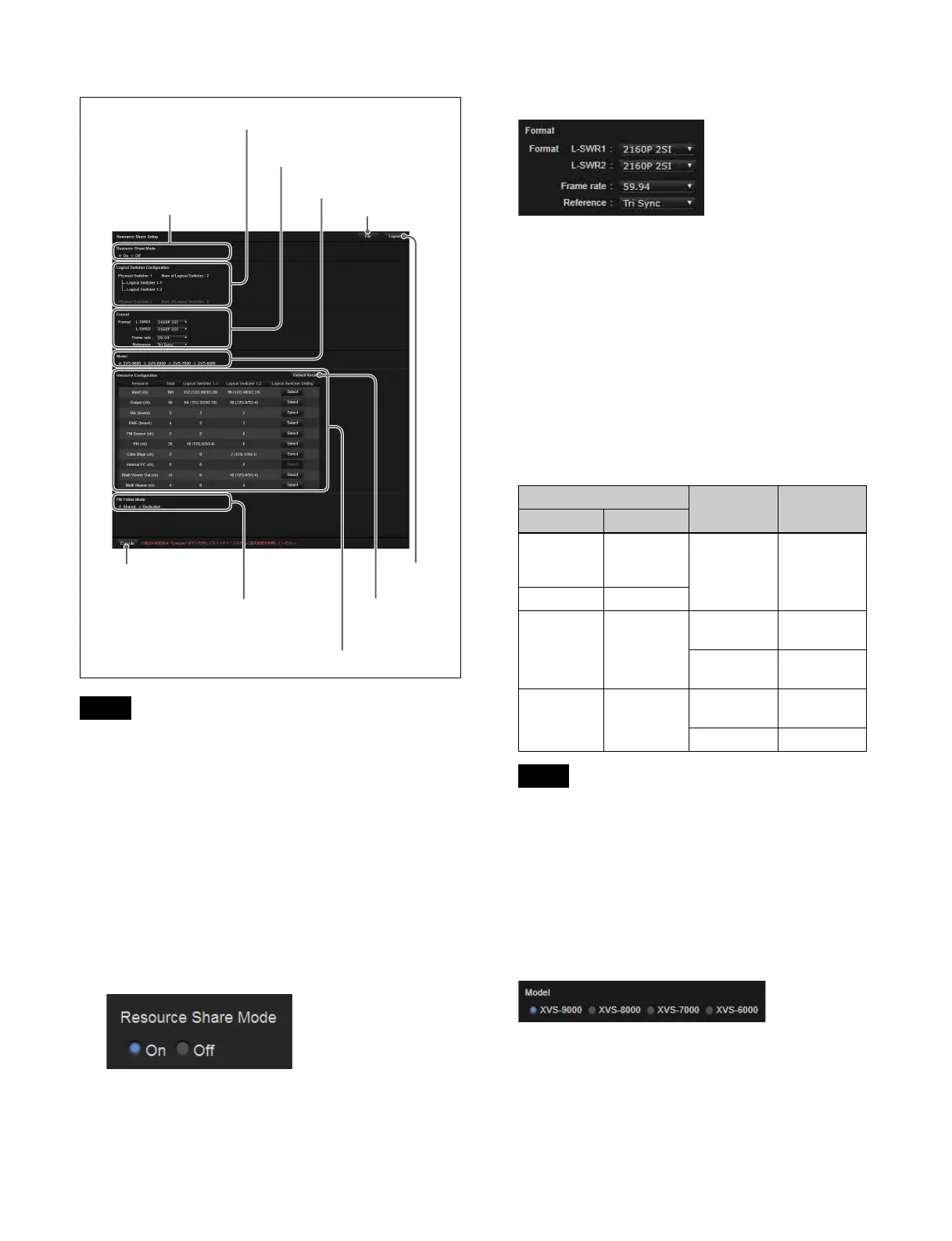

Resource Share Setup page
If resource sharing is disabled, the logical switcher signal
format, physical switcher model, resource assignments,
and frame memory folder mode are not displayed.
Procedure
The resource sharing mode and system structure are
configured on the Resource Share Setup page.
1
Enable/disable resource sharing mode in [Resource
Share Mode].
To enable resource sharing
Select [On].
To disable resource sharing
Select [Off], and skip to step
6
.
2
Configure the logical switcher signal format in
[Format].
Signal format settings
In [Format], select the signal format for logical
switcher 1 in [L-SWR1] and for logical switcher 2 in
[L-SWR2].
Field frequency/frame frequency settings
Select the frequency in [Frame rate].
Input reference signal settings
Select the input reference signal in [Reference].
The combinations of settings that can be selected are
as follows.
• Set devices in a switcher system to the same
frequency.
• The [Frame rate] and [Reference] settings are
common to logical switchers 1 and 2.
• If the signal formats form an unsupported
combination, the format is automatically changed to
a setting that can be selected.
3
Set the physical switcher model in [Model].
Select [XVS-9000], [XVS-8000], [XVS-7000], or
[XVS-6000].
4
Configure resource assignments in [Resource
Configuration].
Note
Logical switcher configuration
Logical switcher signal format
Resource sharing mode
(enable/disable)
Logout button
Execute button
Default Recall
button
Resource assignments
Physical switcher model
File button
Frame memory folder mode
Format Frame rate Reference
L-SWR1 L-SWR2
2160P 2SI
2160P SQD
1080P
2160P 2SI
2160P SQD
1080P
59.94
50
Tr i S y n c
BB
1080i 1080i
2160PsF
SQD
1080PsF
2160PsF
SQD
1080PsF
29.97
25
Tr i S y n c
BB
24
23.98
Tr i S y n c
720P 720P 59.94 Tri Sync
BB
50 BB
Notes
To Next Page
