Star Micronics TUP900 Series User Manual

– 42 –

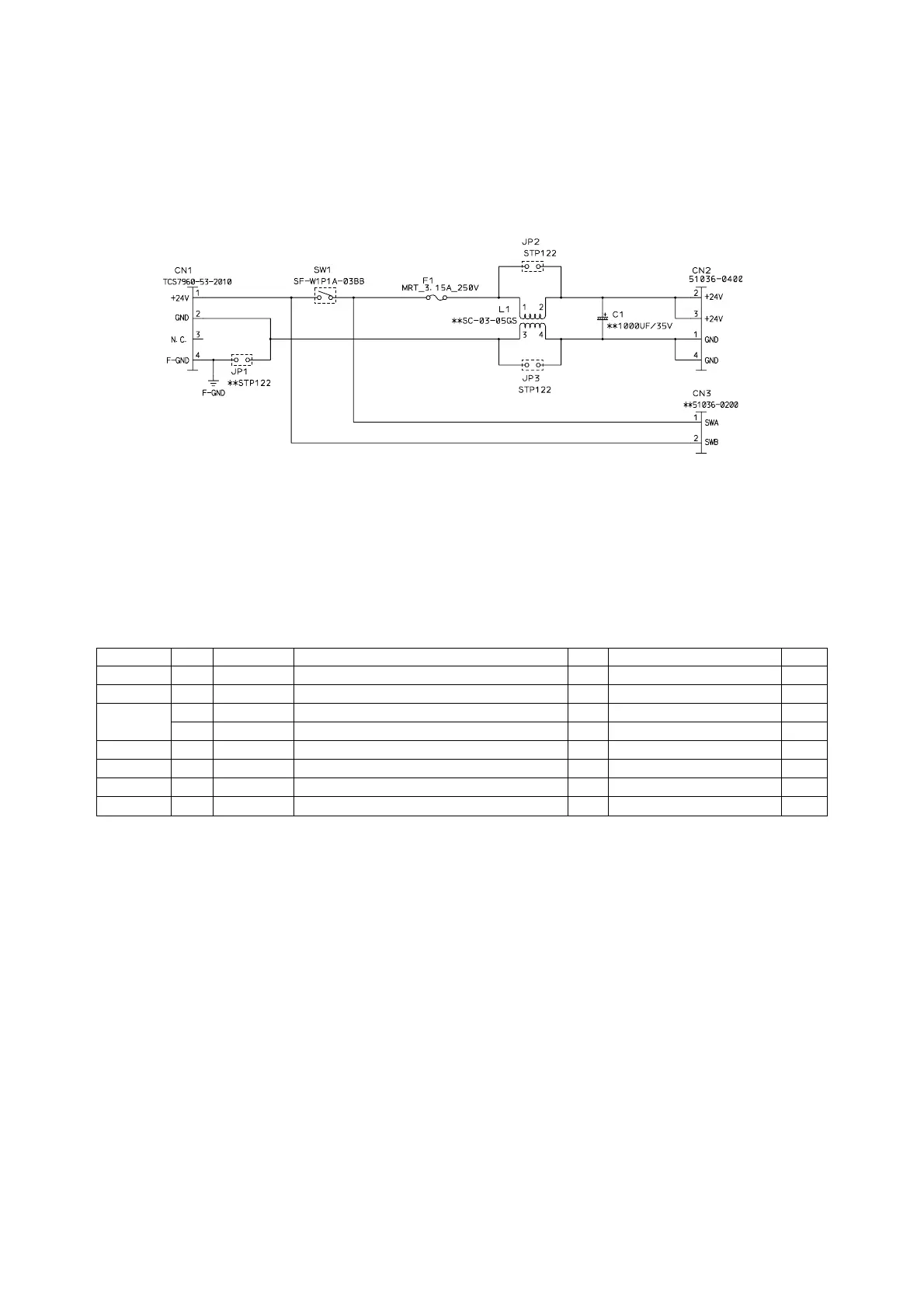

7. Sub-board
7-1. Circuit Diagram
C1 NOT MOUNTED
CN1 NPN CONNECTOR TCS7960-53-2010 1
CN2 NPN CABLE UNIT 4X60CC PBD-9 1
NPN FERRITE CORE K5BRC16X16X8-M 1
F1 NPN FUSE MRT3.15A-250V* 1
JP1-3 NPN JUMPER WIRE STP122 3
SW1 NPN SEESAW SWITCH SF-W1P1A03BB 1
- NPN FERRITE CORE K5BRC16X16X8-M 1
DRWG.NO. REV. PARTS NO. PARTS NAME Q'TY REMARKS RANK
7-2. Parts List
Sub-board
