30 MS 290, MS 310, MS 390
Always check and, if necessary,
repair the fuel system, carburetor,
air filter and ignition system before
looking for faults on the engine.
– Remove the handle housing,
b 9.2
– Remove the shroud, b 6.4
– Remove the oil pump, b 10.4.1
– Remove the muffler, b 6.1
– Remove the flywheel, b 7.3

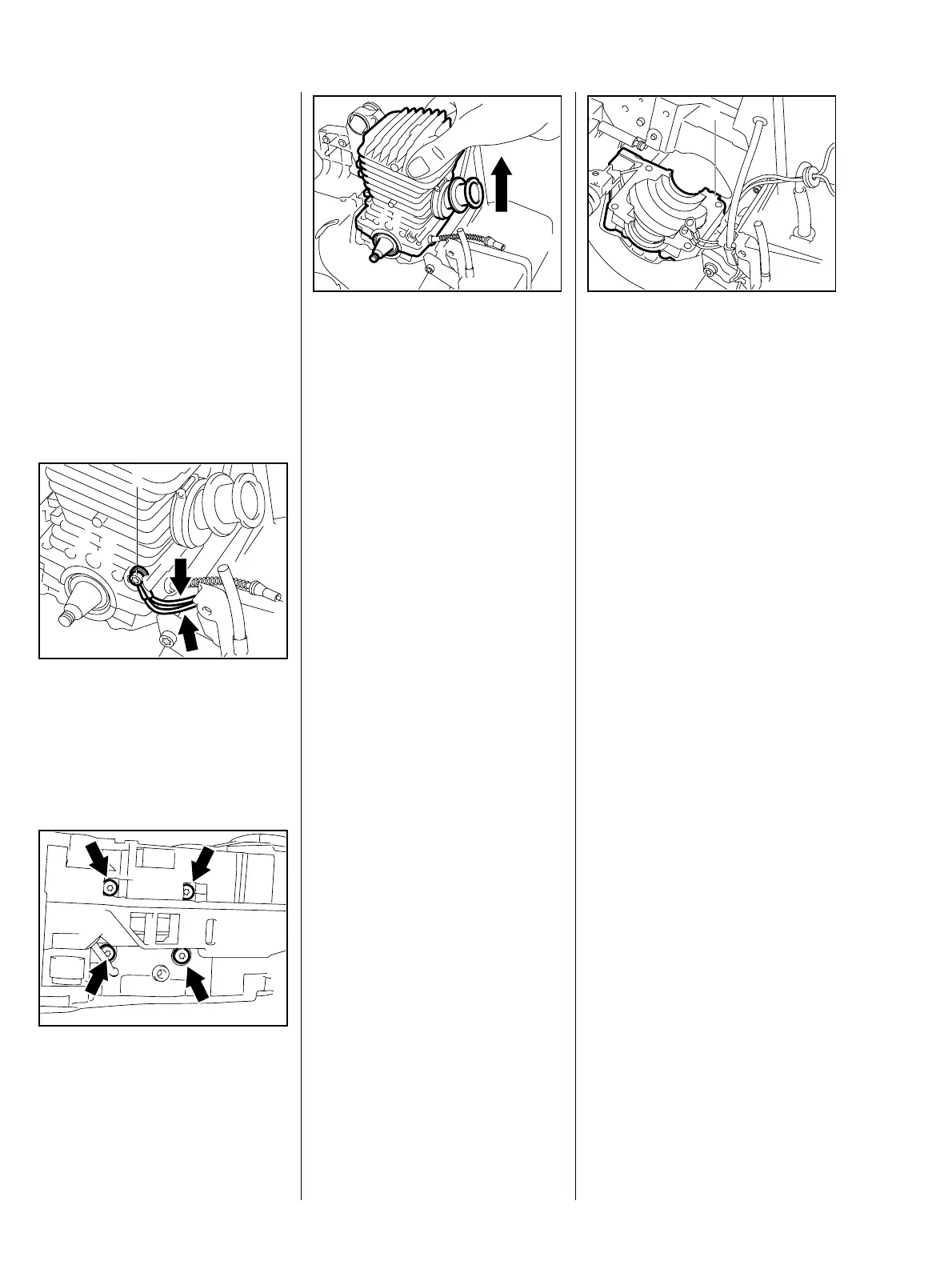

: Take out the screw (1).
: Remove the ground wires
(arrows).
209RA091
VA
1
: Take out the screws (arrows).
209RA092
VA
– Set piston to bottom dead center.
: Lift cylinder with crankshaft
upwards and off the engine pan.
– Remove cylinder sideways from
the engine housing.
209RA093
VA
– For other operations see b 6.5.1
Install in the reverse sequence.
– Tighten down the engine pan/
cylinder mounting screws in
alternate pattern, b 3.5
– Tighten down the ground wire
fastening screw firmly, b 3.5
If the engine pan is damaged, it
must be replaced before installing
the cylinder. Perform the following
operations to replace the engine
pan:
– Unscrew the collar stud, b 5.4
: Remove the engine pan (1).
Install in the reverse sequence.
– Fit the engine pan in the engine
housing.
209RA100
VA
1
– Coat the thread of the collar stud
with Loctite, b 13.
– Insert and tighten down the collar
stud firmly, b 3.5
– For other operations see b 6.5.1
6.5 Removing and Installing
the Engine
