Stihl MS 390 User Manual

35MS 290, MS 310, MS 390

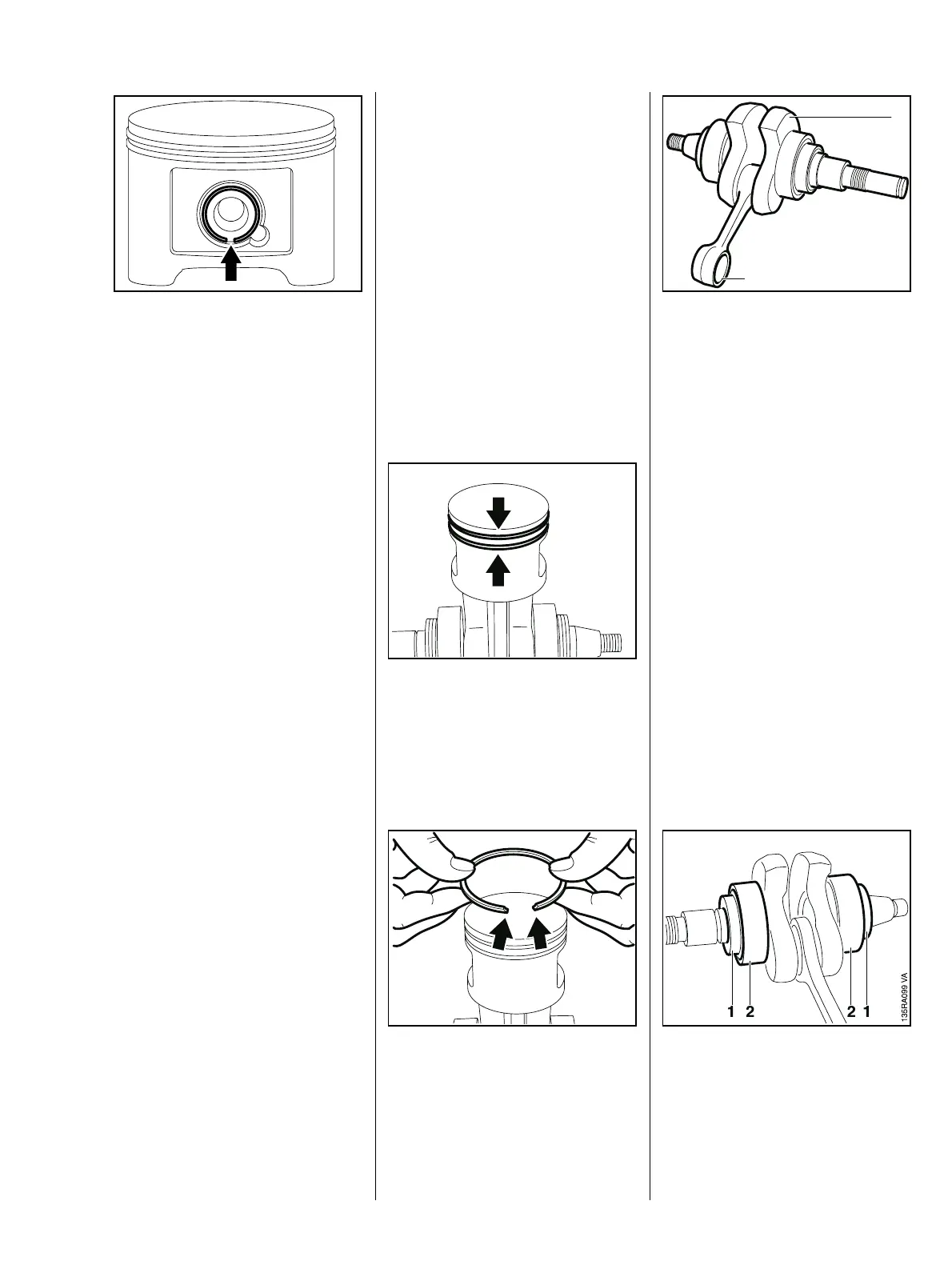

– Fit the snap rings so that their
gaps are on the piston's vertical
axis (they must point either up or
down – see arrow).
– Install the piston, b 6.5.1
209RA107
VA
Install all other parts in the reverse
sequence.
– Pull the piston out of the cylinder,
b 6.5.1
– Remove rings from the piston.
: Use a piece of old piston ring to
scrape the grooves clean.
VA
135RA095
: Install the new piston rings in the
grooves so that the radii face
upward.
– Install the piston, b 6.5.1
VA
135RA096
– Remove the piston, b 6.5.2
: The crankshaft (1) and
connecting rod (2) form an
inseparable unit. This means the
crankshaft must always be
replaced as a complete unit.
VA
135RA097
2
1
When fitting a replacement
crankshaft, always install new ball
bearings, oil seals and needle
bearing.
: Pull off the oil seals (1) and ball
bearings (2).
Install in the reverse sequence.
6.6 Piston Rings 6.7 Crankshaft
