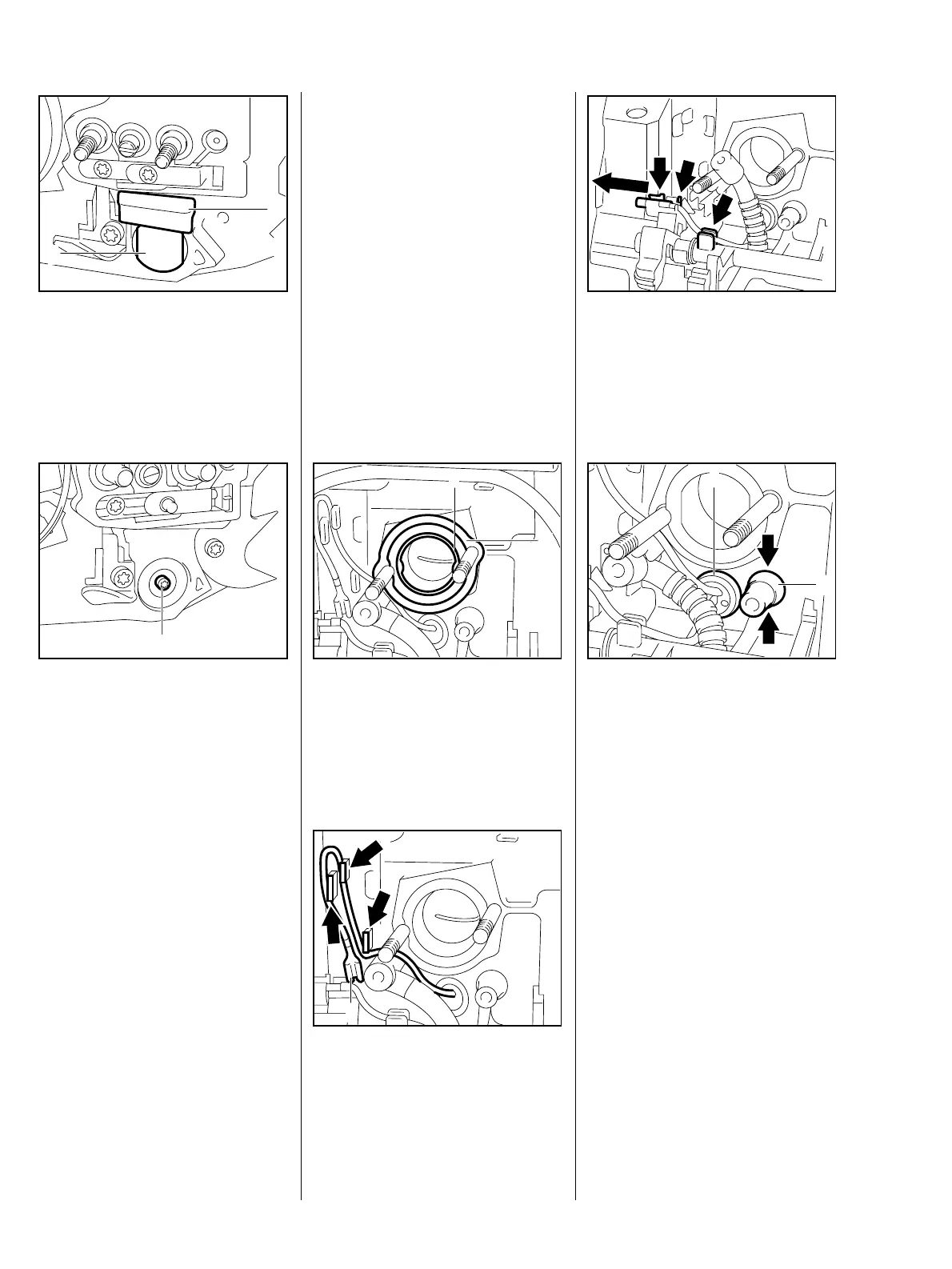

54 MS 290, MS 310, MS 390
: Pry bumper strip (1) out of
housing.
: Remove the plug (2).
209RA211
1
VA
2
: Take out the screw (1).
– Remove the front handle.
– Replace damaged annular
buffers, b 9.3.1
Install in the reverse sequence.
209RA212
1
VA
– Remove the front handle, b 9.1
– Remove the carburetor,
b 11.2.1
–On machines up to 2002 remove
the tank vent, b 11.5.1
–On machines from 2002, remove
tank vent valve with hose,
b 11.5.2
: Remove the sleeve (1).
: Remove the washer (2).
VA
209RA050
1
2
: Pull the ground wire (1) off the
contact spring.
: Pull the ground wire out of the
retainers (arrows).
VA
209RA068
1
: Disconnect the short circuit wire
from the switch shaft by pulling it
to the left and take it out of the
retainers (arrows).
VA
209RA069
: Push the grommet (1) with wires
into the handle housing.
: Carefully squeeze the impulse
hose (2) together and push it into
the handle housing.
VA
209RA070
1
2
9.2 Handle Housing
