52 MS 290, MS 310, MS 390
Wear on the guide bushing is
accelerated by the starter rope
being pulled sideways. The wall of
the bushing eventually wears
through and the bushing becomes
loose.
– Remove fan housing with rewind
starter, b 8.2
– Remove the rope rotor, b 8.4
– Use a suitable tool to pry the
damaged bushing out of the fan
housing.
– Place the new bushing in the fan
housing.
: Insert the screw spindle (1) of the
installing tool 0000 890 2201
through the bushing from inside
the fan housing.

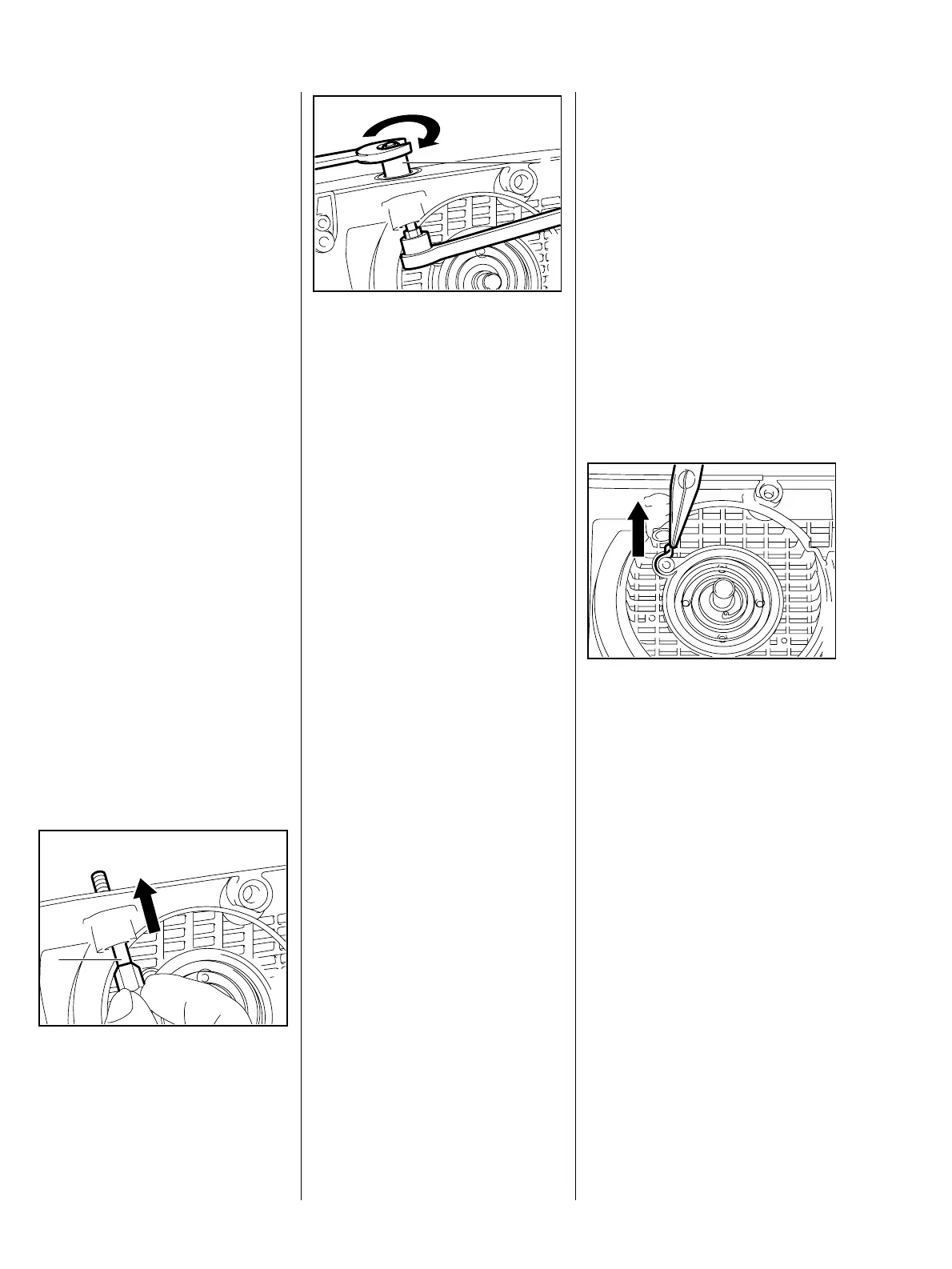

209RA150
VA
1
– Fit the thrust sleeve (1), tapered
end first, and the hex nut.
: Tighten down the hex nut until the
bushing is firmly seated.
The installing tool flares the lower
end of the rope bushing.
209RA151
VA
1
– Remove the installing tool.
Install all other parts in the reverse
sequence.
– Troubleshooting – b 4.2
The replacement spring comes
ready for installation and is secured
in a frame.
Removing
Wear a face shield and work gloves.
– Remove the rope rotor, b 8.4
: Use suitable pliers to grip the
rewind spring’s anchor loop and
lift it up.
– Take the rewind spring out of the
fan housing.
– Remove any remaining pieces of
209RA152
VA
spring from the fan housing.
8.6 Starter Rope Guide
Bushing
8.7 Replacing Rewind Spring
