Original assembly/operating instructions Gear limit switch Type series 51 • No. 151-00004 H • 01.2018 19

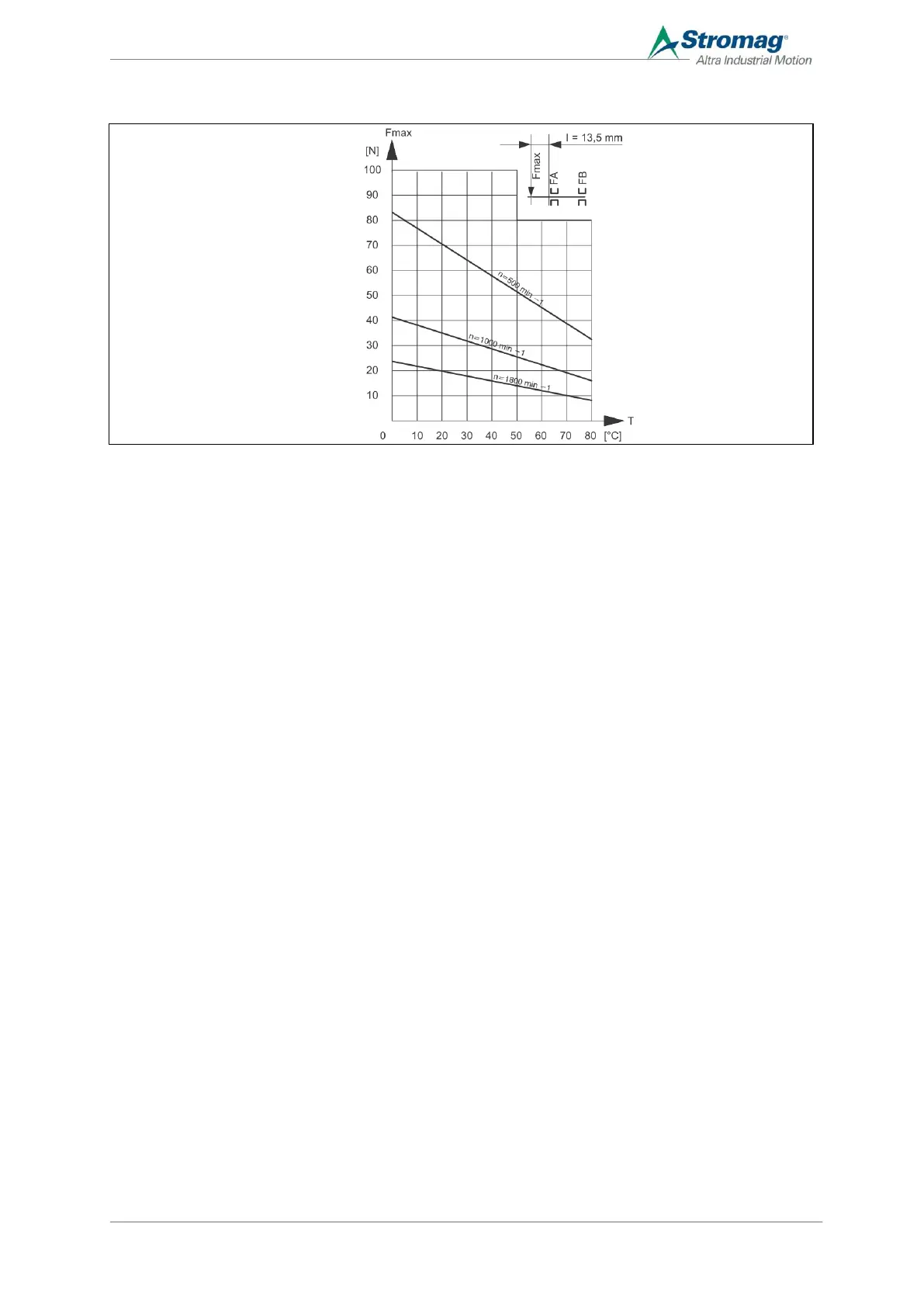

4.1.7 Permissible radial force
T = ambient temperature
F
max
= permissible radial force
F
A
= A-side radial force
F
B
= B-side radial force
Example of application: for speed n
1
= 1800 rpm
Ambient temperature 40 °C: F
max
= 16 N
Ambient temperature 80 ℃: F
ma
x = 9 N
l = 13.5 mm (for standard shafts on GCLS according to protection class IP20)
The following conditions must be observed:
• For drives with a chain drive system, timing belt system etc., the permissible radial force F
max
must not be
exceeded.
• In protective housings type MH and MxZ, a grooved ball bearing is mounted additionally to the sleeve
bearing. When using these housings, the permissible F
max
value can be doubled.
• Impact-like axial forces are not permitted on the drive shaft.
