Original assembly/operating instructions Gear limit switch Type series 51 • No. 151-00004 H • 01.2018 32
Item no.
Number of
screws
Position
Screws
Tightening
torque
(2) min. 3 Input side
M6, offset
by 120°
(evenly
distributed on
the
circumference)
See operat-
ing instruc-
tions of the
machine
Item no.
Number of
screws
Position
Screws
Tightening
torque
(1) 4
Determined
by the design
See operating
instructions of
the
machine
See operating
instructions of
the
machine

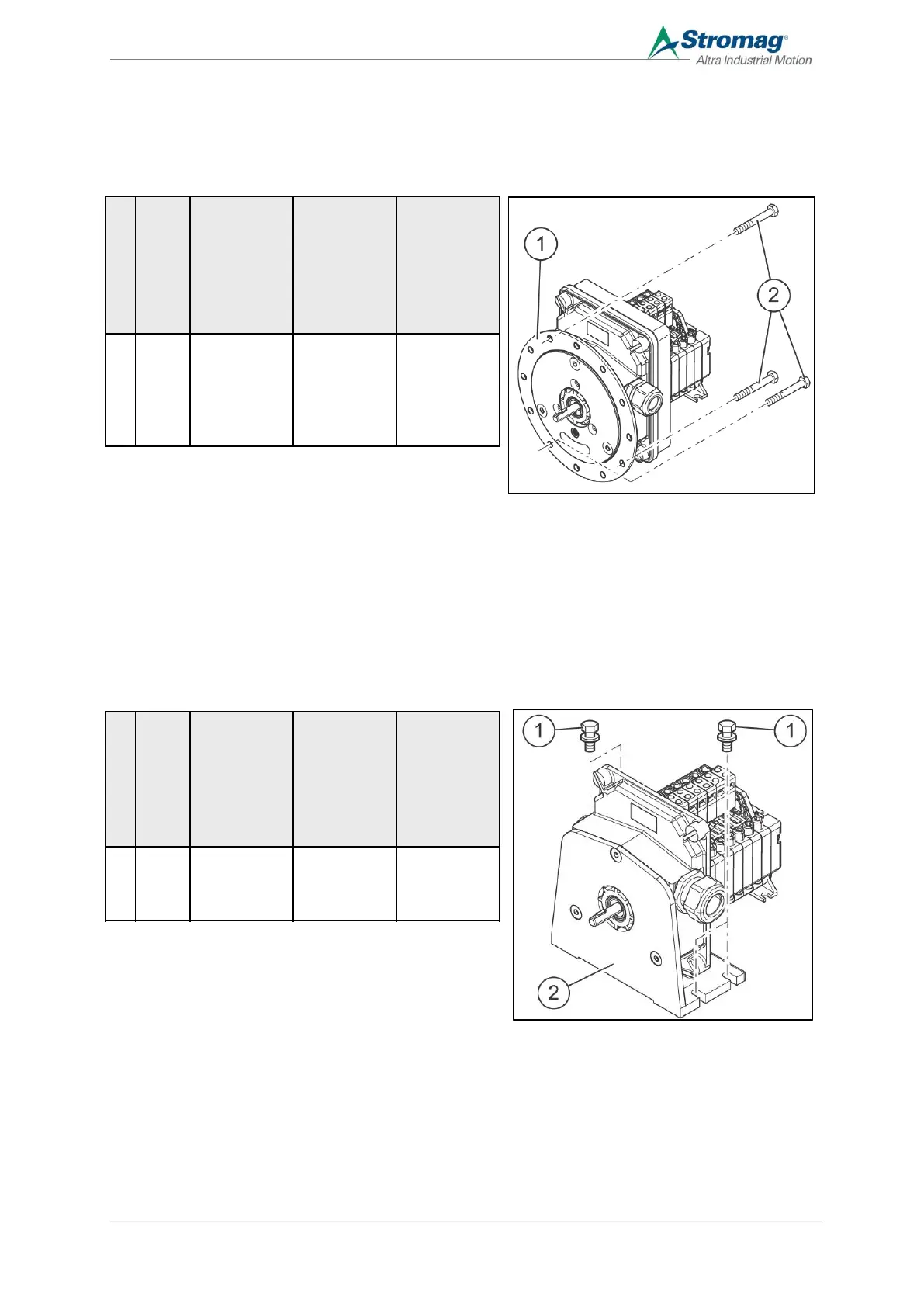

6.3.4 Assembly of the flange design, B55
Mount the GCLS on the machine
1. The connection between the drive shaft of the GCLS and the machine must be positively locked.
2. Mount the flange (1) with screws.
3. For adjusting switching points, see section 6.6.2.
4. Mount the housing cover, see section 6.7.
6.3.5 Assembly of the mounting bracket, B3
Mount the GCLS on the machine
1. The connection between the drive shaft of the GCLS and the machine must be positively locked.
2. Mount the mounting bracket (2) with screws.
3. For adjusting switching points, see section 6.6.2.
4. Mount the housing cover, see section 6.7.
6.4 Electrical assembly
After electrical assembly or maintenance, the safety measures applied must be tested (e.g. ground resistance).
The connection of the stranded wire and soldering pin must be carried out by an electrician according to the
Electrical Code of Practice.
The safety guidelines attached to the GCLS must be observed.
Fig. 16
Fig. 17
