Climate control
4-3
– CONTINUED –
Heating and air conditioning

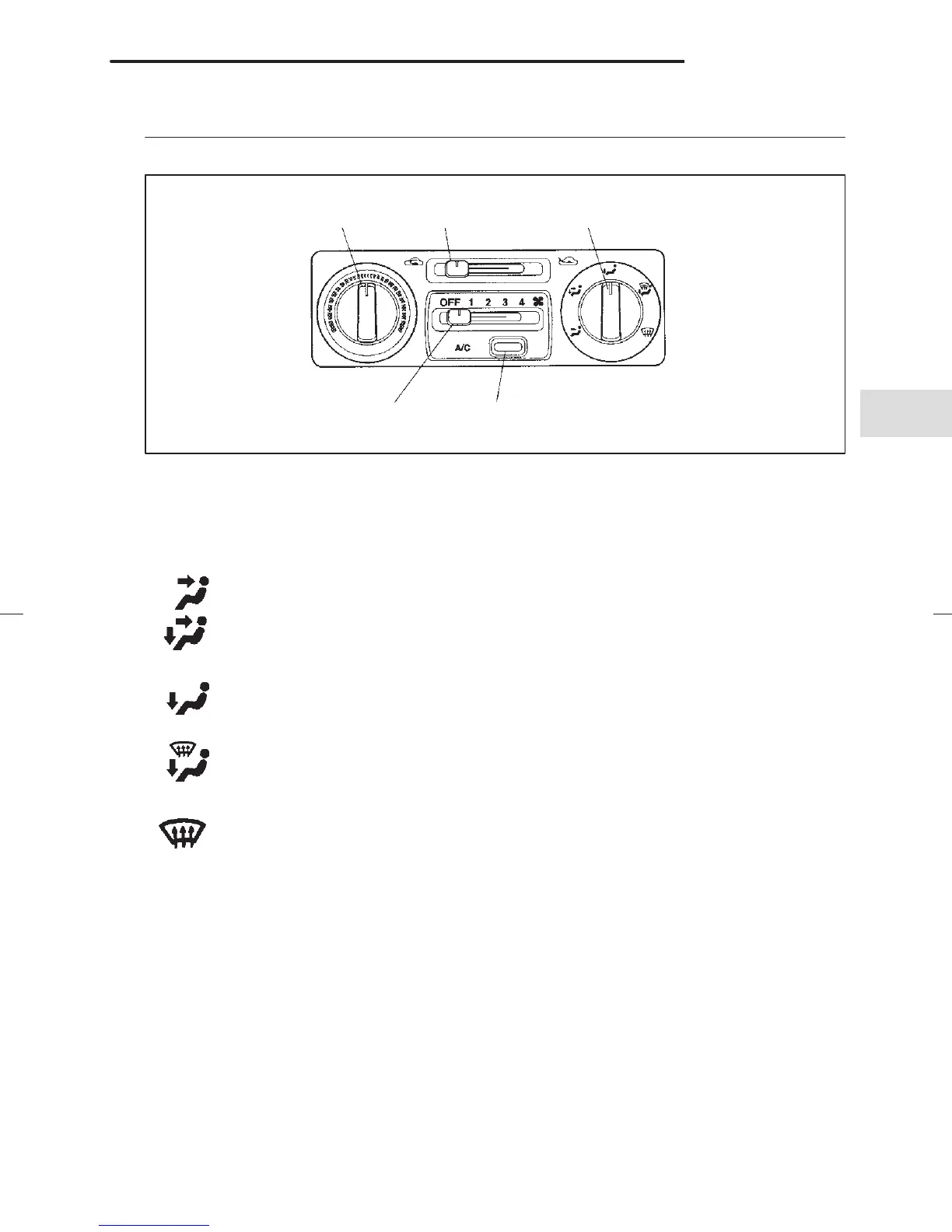

HS0071
Temperature
control dial
Air inlet selec-
tion lever
Air outlet
control dial
Fan speed
control lever
Air conditioner
button
J Air flow control dial
This dial has following five positions:
: Air flows through the instrument panel outlets.
: Air flows through the instrument panel outlets and the foot out-
lets.
: Air flows through the foot outlets and some through the wind-
shield defroster outlets.
: Air flows through the windshield defroster outlets and foot out-
lets.
: Air flows through the windshield defroster outlets.
J Temperature control dial
This dial regulates the hot air flow from the heater over a range from the
blue area to red area.
J Fan speed control lever
The fan operates only when the ignition switch is turned to the “ON”
position. The fan speed control lever is used to select four fan speeds.
