H11SSL Motherboard Series User's Manual
2.2 Motherboard Installation
All motherboards have standard mounting holes to t di󰀨erent types of chassis. Make sure
that the locations of all the mounting holes for both the motherboard and the chassis match.
Although a chassis may have both plastic and metal mounting fasteners, metal ones are
highly recommended because they ground the motherboard to the chassis. Make sure that
the metal stando󰀨s click in or are screwed in tightly.

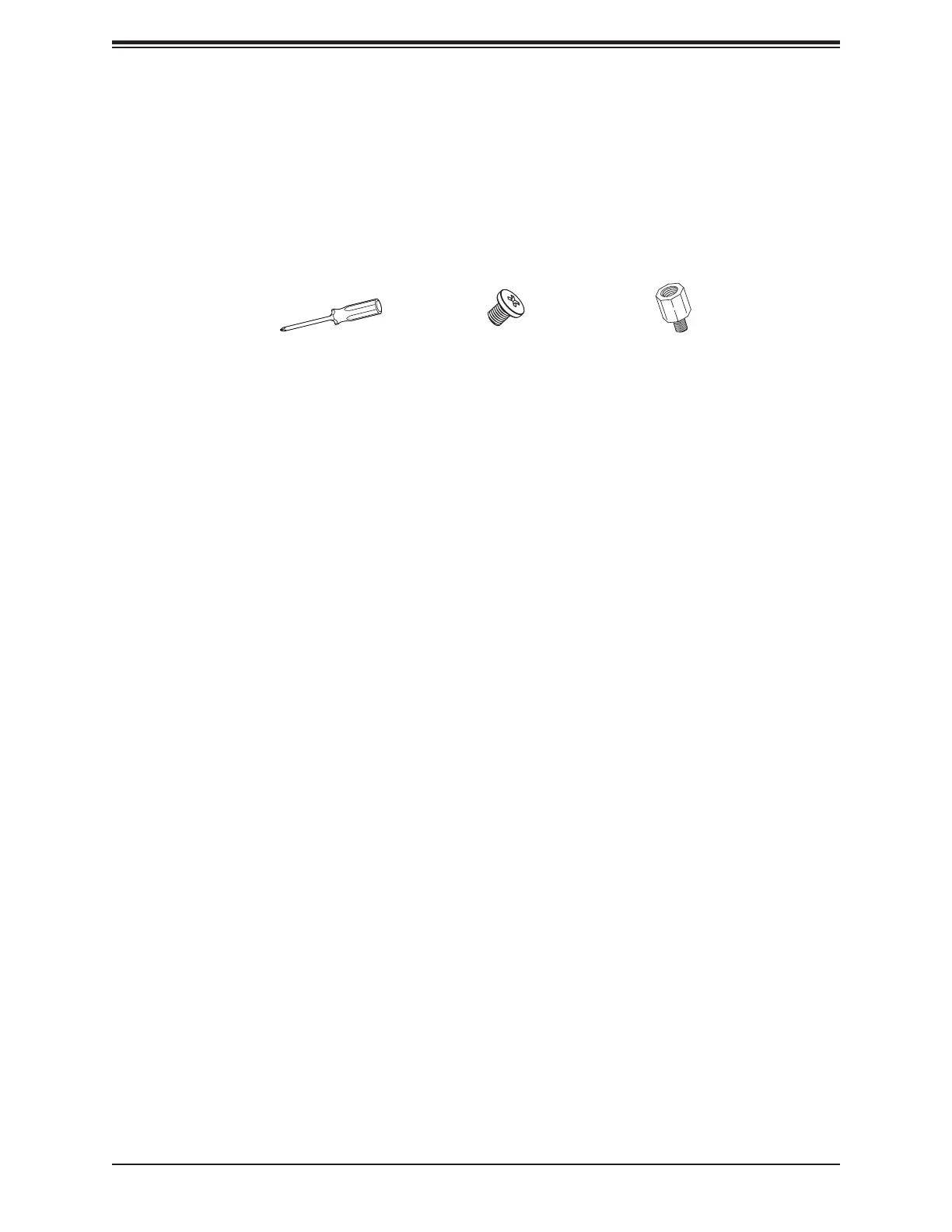

Phillips
Screwdriver (1)
Stando󰀨s (11)
Only if Needed
Phillips Screws
Tools Needed
Location of Mounting Holes
Notes:
1. To avoid damaging the motherboard and its components, please do not use a force
greater than 8 lb/inch on each mounting screw during motherboard installation.
2. Some components are very close to the mounting holes. Please take precautionary
measures to avoid damaging these components when installing the motherboard to the
chassis.

Supermicro H11SSL-I Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory channels	Octa-channel
Memory slots type	-
Supported memory types	DDR4-SDRAM
Maximum internal memory	1024 GB
Supported memory clock speeds	2666 MHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	8
PCI Express x8 (Gen 3.x) slots	3
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
Wi-Fi	No
LAN controller	Intel I210, Realtek RTL8211E
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM w/ dedicated LAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Component for	Server
Motherboard form factor	ATX
Number of SATA III connectors	12
Trusted Platform Module (TPM) version	1.2
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
