H11SSL Motherboard Series User's Manual

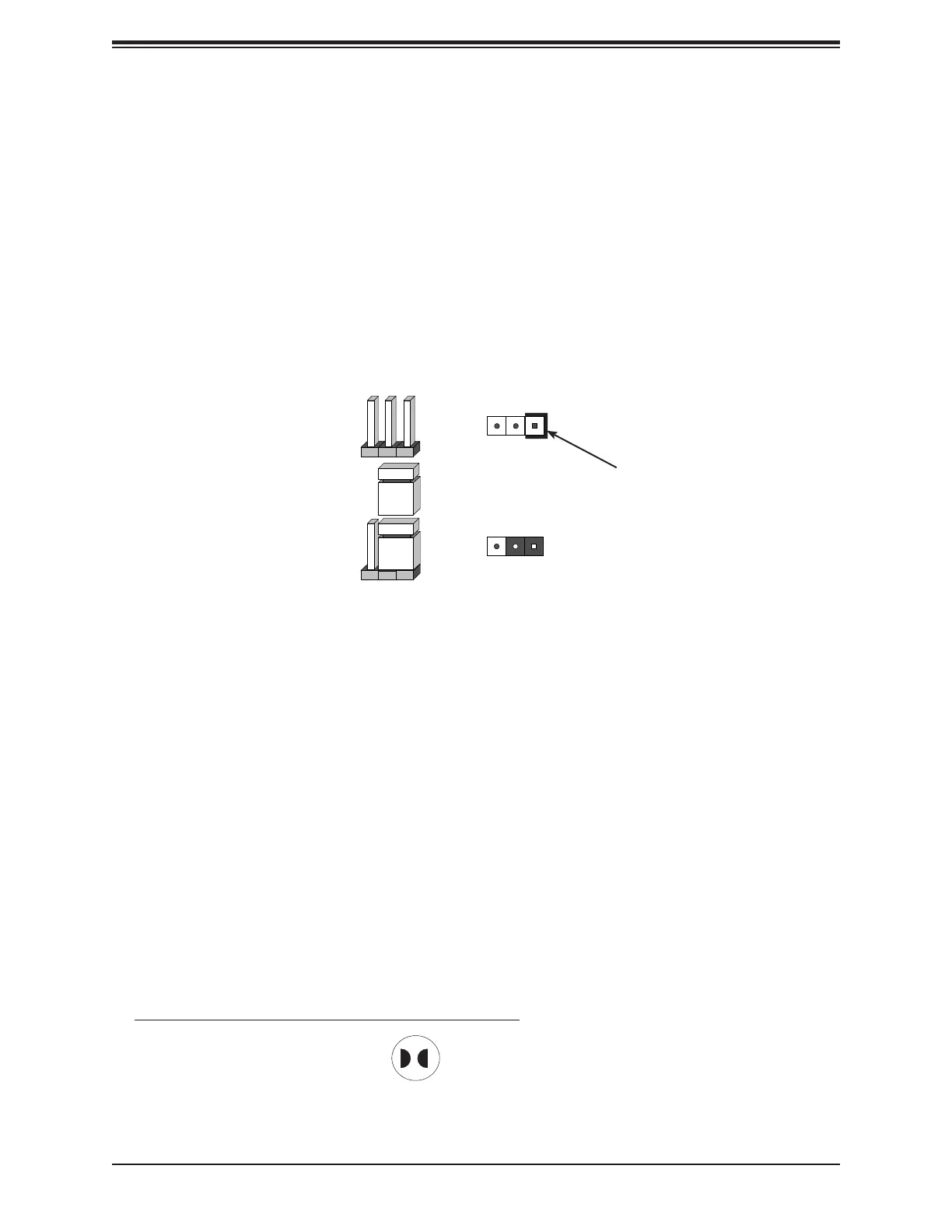

2.8 Jumper Settings
How Jumpers Work
To modify the operation of the motherboard, jumpers can be used to choose between optional
settings. Jumpers create shorts between two pins to change the function of the connector.
Pin #1 is identied with a thicker border line on the printed circuit board. See the diagram
below for an example of jumping pins 1 and 2. Refer to the motherboard layout page for
jumper locations.
Note: On two-pin jumpers, "Closed" means the jumper is on and "Open" means the jumper
is o󰀨 the pins.
Connector
Pins
Jumper
Setting
3 2 1
3 2 1
Clear CMOS (JBT1)
JBT1 is used to clear CMOS, which will also clear any passwords. Instead of pins, this jumper
consists of contact pads to prevent accidentally clearing the contents of CMOS.
To Clear CMOS
1. First power down the system and unplug the power cord(s).
2. Remove the cover of the chassis to access the motherboard.
3. Remove the onboard battery from the motherboard.
4. Short the CMOS pads with a metal object such as a small screwdriver for at least four
seconds.
5. Remove the screwdriver (or shorting device).
6. Replace the cover, reconnect the power cord(s), and power on the system.
Note: Clearing CMOS will also clear all passwords.
Do not use the PW_ON connector to clear CMOS.
JBT1 contact pads
Pin #1

Supermicro H11SSL-I Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory channels	Octa-channel
Memory slots type	-
Supported memory types	DDR4-SDRAM
Maximum internal memory	1024 GB
Supported memory clock speeds	2666 MHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	8
PCI Express x8 (Gen 3.x) slots	3
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
Wi-Fi	No
LAN controller	Intel I210, Realtek RTL8211E
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM w/ dedicated LAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Component for	Server
Motherboard form factor	ATX
Number of SATA III connectors	12
Trusted Platform Module (TPM) version	1.2
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
