Supermicro H11SSL-I User Manual

49
Chapter 2: Installation

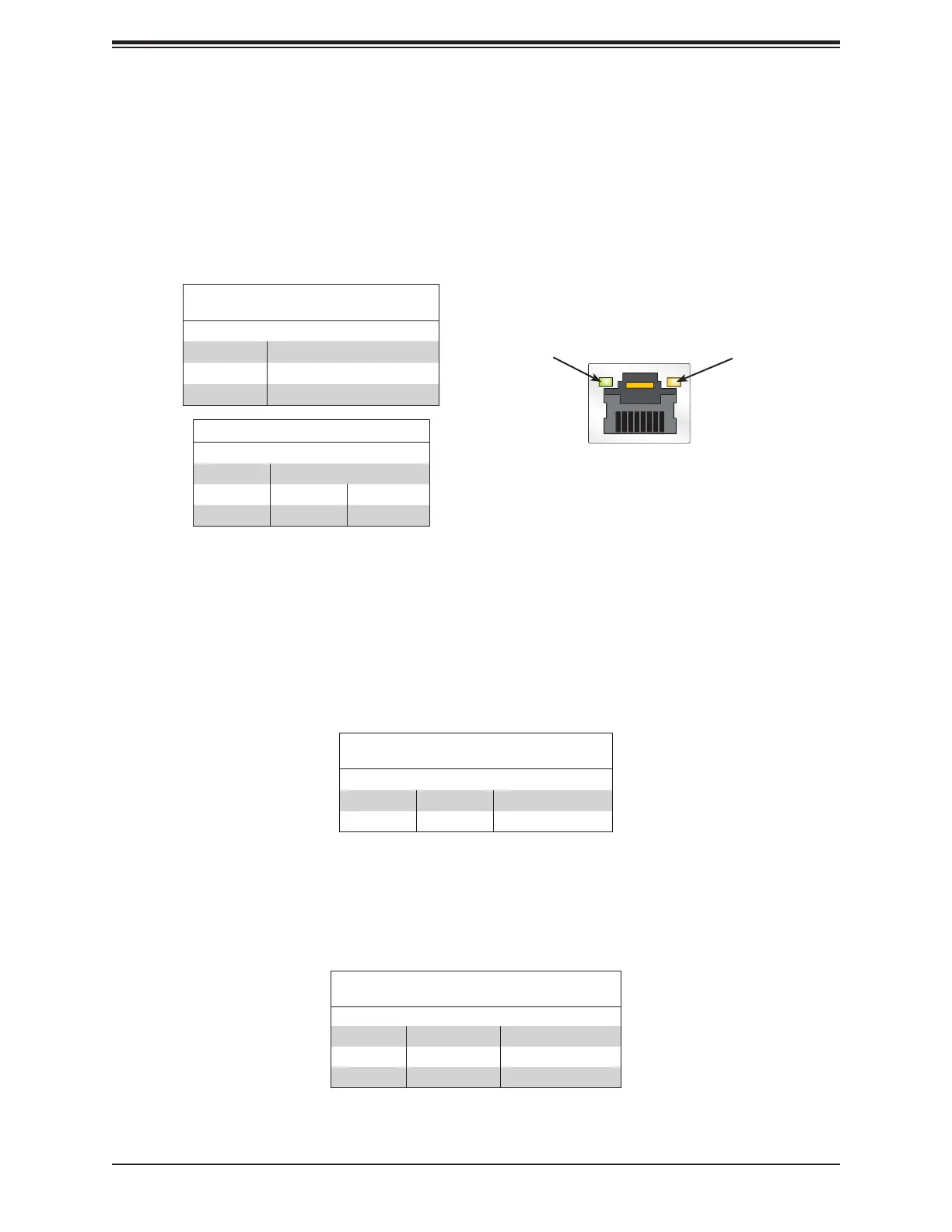

2.9 LED Indicators
LAN Port LEDs
The motherboard's Ethernet ports has two LED indicators. The Activity LED is yellow and
indicates connection and activity. The Link LED may be green, amber, or o󰀨 to indicate the
speed of the connection. Refer to the tables below for more information.
BMC Hearbeat LED (LEDM1)
A BMC Heartbeat LED is located at LEDM1 on the motherboard. When LEDM1 is blinking,
the BMC is functioning normally. See the table below for more information.
BMC Heartbeat
LED State
Color State Denition
Green Solid On BMC is not ready
Green Blinking BMC Normal
Green Fast Blinking BMC: Initializing
UID Switch and LED Indicator (UID LED & UID-SW)
The rear UID LED is located next to the UID switch. The front UID LED is located on the front
panel. When you press the UID switch, both rear and front UID LED indicators will turn on.
Press the UID switch again to turn o󰀨 the LED indicators. Use this UID Indicator to 'mark' the
system, so the system can be easily identied whether on the front or back (e.g., a system
rack with multiple units installed).
UID LED
LED Indicator
Color State Denition
Blue Solid On Unit Identied
None O󰀨 UID O󰀨
Link LED
Connection Link Speed Indicator
LED Color Denition
None 10 Mb/s
Green 100 Mb/s
Amber 1 Gb/s
Activity LED
Color State Denition
None No Connection
Yellow Solid On Link
Yellow Flashing Active
Activity LEDLink LED

Supermicro H11SSL-I Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory channels	Octa-channel
Memory slots type	-
Supported memory types	DDR4-SDRAM
Maximum internal memory	1024 GB
Supported memory clock speeds	2666 MHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	8
PCI Express x8 (Gen 3.x) slots	3
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
Wi-Fi	No
LAN controller	Intel I210, Realtek RTL8211E
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM w/ dedicated LAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Component for	Server
Motherboard form factor	ATX
Number of SATA III connectors	12
Trusted Platform Module (TPM) version	1.2
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
