Supermicro H11SSL-I User Manual

24
H11SSL Motherboard Series User's Manual
Installing the Motherboard

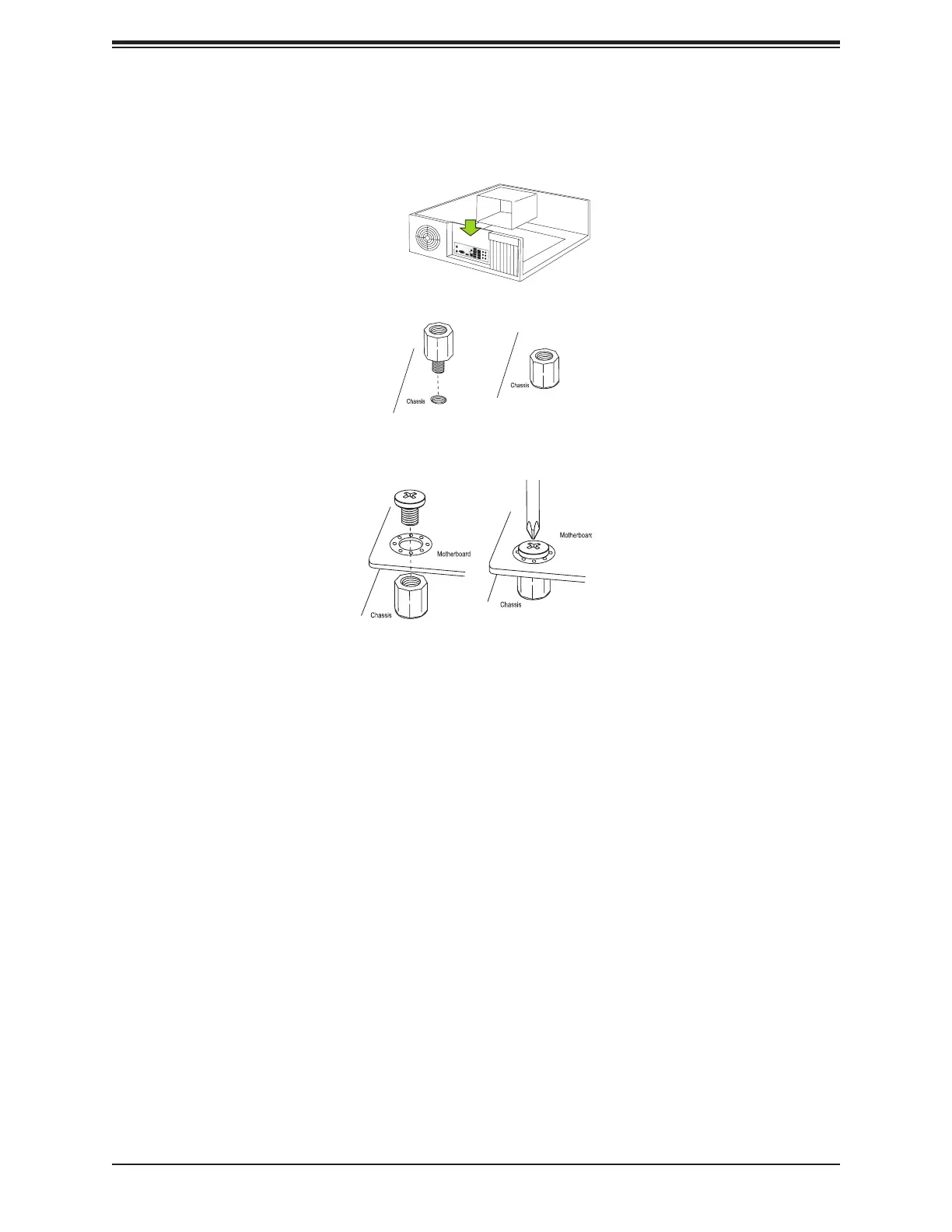

1. Install the I/O shield into the back of the chassis.
2. Locate the mounting holes on the motherboard. See the previous page for the locations.
3. Locate the matching mounting holes on the chassis. Align the mounting holes on the
motherboard with the mounting holes on the chassis.
4. Install stando󰀨s in the chassis as needed.
5. Install the motherboard into the chassis carefully to avoid damaging other motherboard
components.
6. Using the Phillips screwdriver, insert a Phillips head #6 screw into a mounting hole on
the motherboard and its matching mounting hole on the chassis.
7. Repeat Step 5 to insert #6 screws into all mounting holes.
8. Make sure that the motherboard is securely placed in the chassis.
Note: Images displayed are for illustration only. Your chassis or components might look
di󰀨erent from those shown in this manual.

Supermicro H11SSL-I Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory channels	Octa-channel
Memory slots type	-
Supported memory types	DDR4-SDRAM
Maximum internal memory	1024 GB
Supported memory clock speeds	2666 MHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	8
PCI Express x8 (Gen 3.x) slots	3
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
Wi-Fi	No
LAN controller	Intel I210, Realtek RTL8211E
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM w/ dedicated LAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Component for	Server
Motherboard form factor	ATX
Number of SATA III connectors	12
Trusted Platform Module (TPM) version	1.2
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
