Supermicro H11SSL-I User Manual

25
Chapter 2: Installation
2.3 Processor and Heatsink Installation
Warning: When handling the processor package, avoid placing direct pressure on the label
area of the fan.
Important:
• For the Processor/Heatsink installation you need to use a T20 screwdriver when opening/
closing the CPU socket.
• Always connect the power cord last, and always remove it before adding, removing or
changing any hardware components. Make sure that you install the processor into the
CPU socket before you install the CPU heatsink.
• If you buy a CPU separately, make sure that you use an AMD-certied heatsink only. Make
sure to install the motherboard into the chassis before you install the CPU heatsink.
• When receiving a motherboard without a processor pre-installed, make sure that the plastic
CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your
retailer immediately.
• Refer to the Supermicro website for updates on CPU support.
Installing the Processor and Heatsink

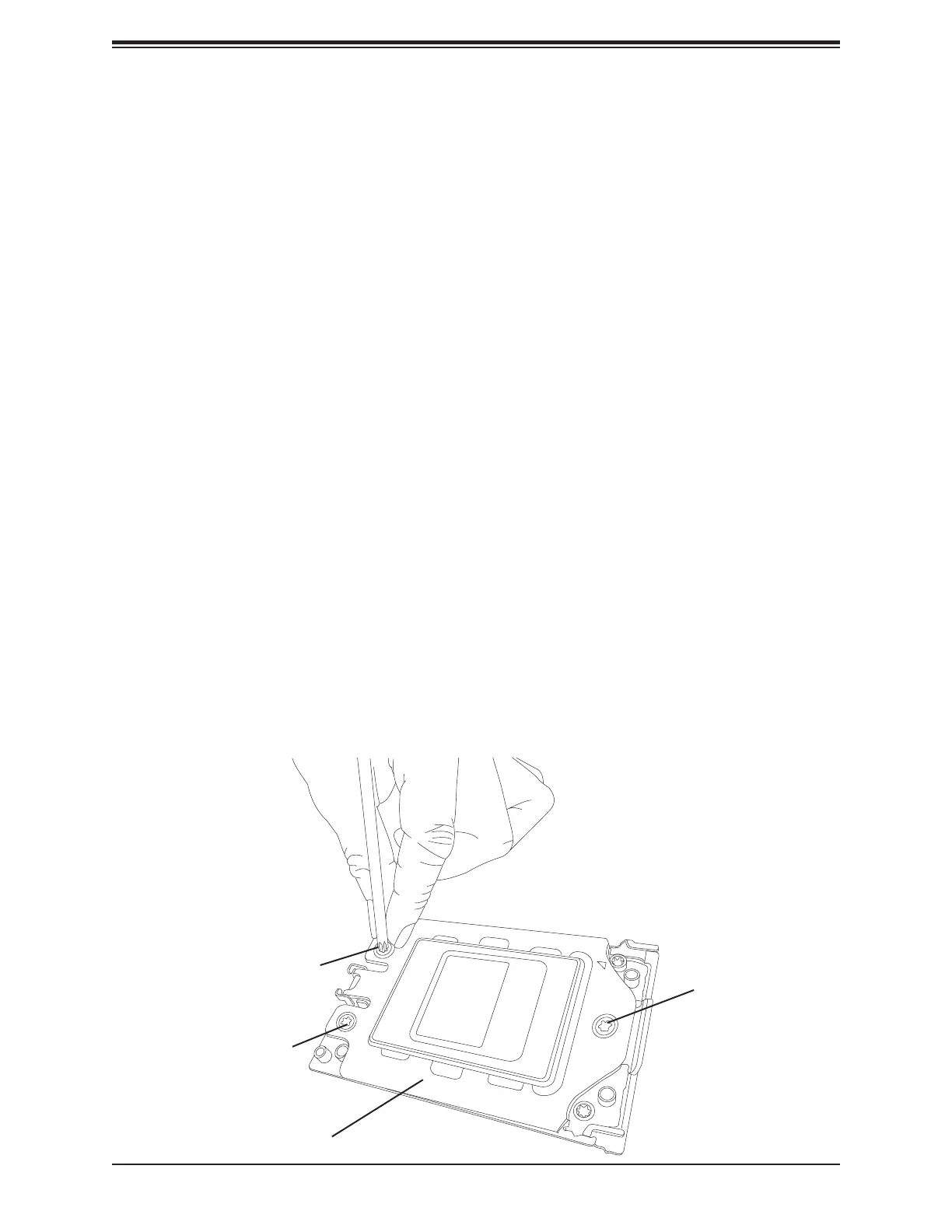

1. Unscrew the screws holding down Force Frame in the sequence of 3-2-1. The screws
are numbered on the force frame next to each screw hole.
Screw #1
Screw #2
Screw #3
Force Frame

Supermicro H11SSL-I Specifications

General

ECC	Yes
Memory voltage	1.2 V
Memory channels	Octa-channel
Memory slots type	-
Supported memory types	DDR4-SDRAM
Maximum internal memory	1024 GB
Supported memory clock speeds	2666 MHz
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
Number of DIMM slots	8
PCI Express x8 (Gen 3.x) slots	3
Supported DIMM module capacities	8GB, 16GB, 32GB, 64GB, 128MB
BIOS type	AMI
ACPI version	5.1
BIOS memory size	128 Mbit
Wi-Fi	No
LAN controller	Intel I210, Realtek RTL8211E
Ethernet interface type	Gigabit Ethernet
On-board graphics card model	Aspeed AST2500
Bundled software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM w/ dedicated LAN
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 35 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	8 - 90 %
Component for	Server
Motherboard form factor	ATX
Number of SATA III connectors	12
Trusted Platform Module (TPM) version	1.2
Processor socket	Socket SP3
Processor manufacturer	AMD
Compatible processor series	AMD EPYC
Supported storage drive interfaces	SATA III
Harmonized System (HS) code	84733020

Weight and Dimensions

Depth	244 mm
Width	305 mm
