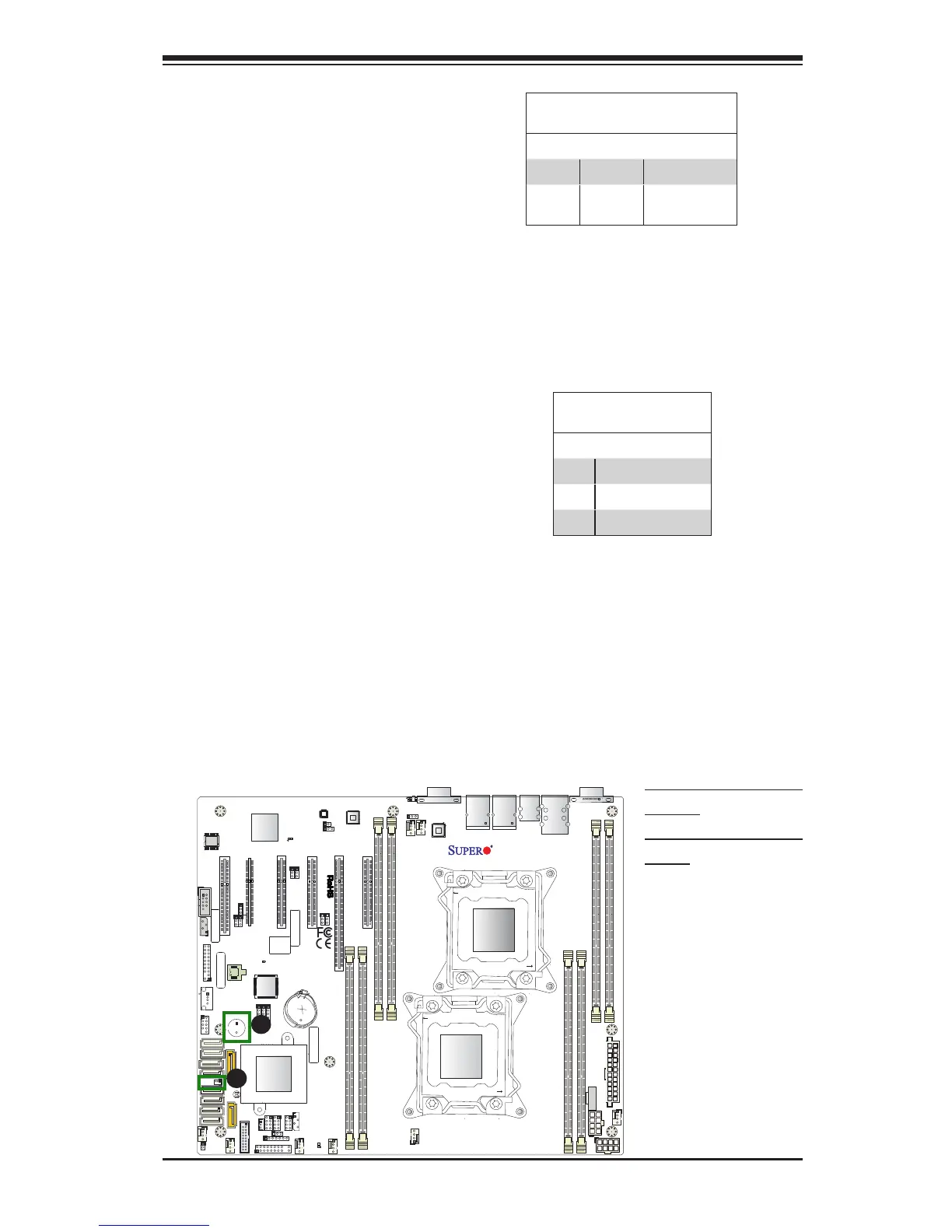

A. Internal Speaker
(Buzzer)
B. SATA DOM PWR
(JSD1)
Internal Speaker
The Internal Speaker (SP1) can be
used to provide audible indications
for various beep codes. See the table
on the right for pin denitions. Refer
to the layout below for the location of
the Internal Buzzer.
Internal Buzzer
Pin Denition
Pin# Denitions
Pin 1 Pos. (+) Beep In
Pin 2 Neg. (-) Alarm
Speaker
DOM Power Connector
A power connectors for SATA DOM
(Disk_On_Module) devices is located
at JSD1. Connect an appropriate
cable here to provide power support
for your Serial Link DOM devices.
DOM PWR
Pin Denitions
Pin# Denition
1 +5V
2 Ground
3 Ground
