Supermicro X10DRL-i SUPERO User Manual

2-30
X10DRL-i Motherboard User’s Manual
LE6
JBT1
BIOS
LICENSE
JPI2C1
J24
JPWR2
JF1
JD1
JL1
JSD1
BT1
JTPM1
JPL1
JPL2
JPG1
JPB1
JWD1
JI2C2
JPME2
JI2C1
JPF1
JPF2
J23
SP1
JUIDB1
LE2
LE1
LEDM1
FANB
FAN4
FAN3
FAN1
FAN5
FAN6
FANA
MAC CODE
BAR CODE
(3.0)
USB12/13
USB2/3
USB4
USB0/1
JSTBY1
JIPMB1
S-SATA2
S-SATA0
COM2
S-SATA1
S-SATA3
I-SATA5
PCH SLOT1 PCI-E 2.0 X4(IN X8)
I-SATA4
CPU1 SLOT2 PCI-E 3.0 X8
I-SATA3
I-SATA2
I-SATA1
CPU1 SLOT3 PCI-E 3.0 X8
I-SATA0
CPU2 SLOT4 PCI-E 3.0 X4 (IN X8)
CPU1 SLOT5 PCI-E 3.0 X16
CPU1 SLOT6 PCI-E 3.0 X8
UID
P2-DIMME1
P1-DIMMC1
P2-DIMMF1
P1-DIMMD1
P2-DIMMH1
P1-DIMMB1
VGA
P1-DIMMA1
CPU1
LAN2
P2-DIMMG1
CPU2
LAN1
IPMI_LAN
COM1
JPWR1
BMC
PCH
LAN CTRL
LAN CTRL
CLOSE 1st
OPEN 1st
CLOSE 1st
OPEN 1st
USB8/9(3.0)
BIOS
I-SGPIO1
S-SGPIO
1
J10
FAN2
X10DRL-i
Rev. 1.01
I-SGPIO2
IPMI CODE
A
B
A. I-SGPIO1
B. I-SGPIO2
C. S-SGPIO
D. Standby PWR

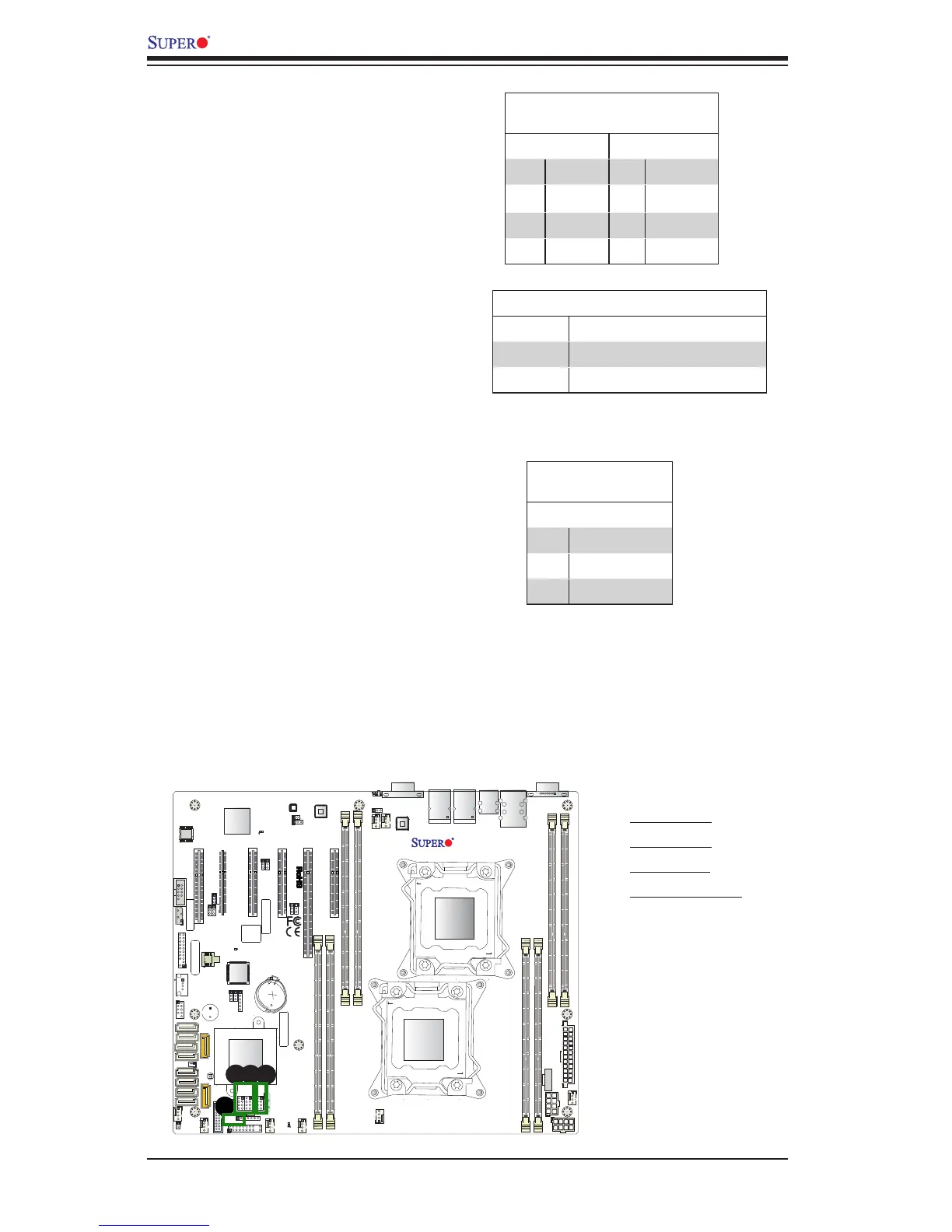

I-SGPIO1/2 & S-SGPIO Headers
Three SGPIO (Serial Link General
Purpose Input/Output) headers are lo-
cated on the motherboard. I-SGPIO1/2
support onboard I-SATA0-5, and S-
SGPIO supports S-SATA0-3 connec-
tions. See the table on the right for
pin denitions.
Note: NC= No Connection
I-SGPIO & S-SGPIO Headers
Pin Denitions
Pin# Denition Pin Denition
1 NC 2 NC
3 Ground 4 Data
5 Load 6 Ground
7 Clock 8 NC
C
D
Standby Power Header
The +5V Standby Power header is
located at JSTBY1 on the mother-
board. See the table on the right for
pin denitions. (You must also have a
card with a Standby Power connector
and a cable to use this feature.)
Standby PWR
Pin Denitions
Pin# Denition
1 +5V Standby
2 Ground
3 No Connection
I-SGPIO0/1 & S-SGPIO Support
I-SGPIO1 I-SATA Ports 0/1/2/3 Supported
I-SGPIO2 I-SATA Ports 4/5 Supported
S-SGPIO S-SATA Ports 0/1/2/3 Supported
