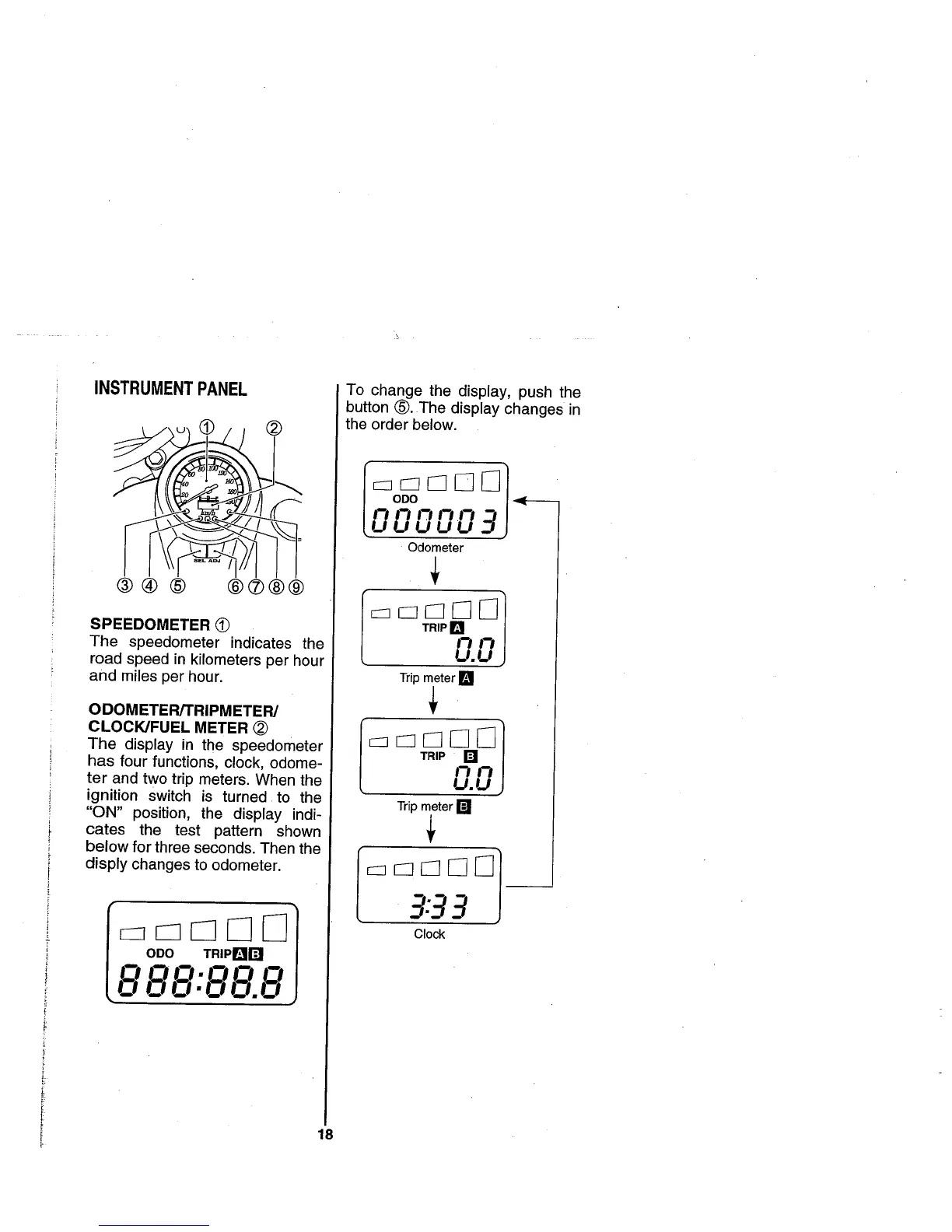

INSTRUMENT PANEL
:%)~I-.
Y1~r
~~.
Q) (4 CI CI CV CI (I
SPEEDOMETER CD
The speedometer indicates the
road speed in kilometers per hour
and miles per hour.
ODOMETERIRIPMETERI
CLOCK/FUEL METER ~
The display in the speedometer
has four functions, clock, odome-
ter and two trip meters. When the
ignition switch is turned to the
"ON" position, the display indi-
cates the test pattern shown
below for three seconds. Then the
disply changes to odometer.
00000
aDO TRlpSm
1-' I-' 0 0 l' ''
t, bC':Lib.b
To change the display, push the
button CI. The display changes in
the order below.
00000
ODO
000003
Odometer
.
00000
TRlpm
., n
U.U
Trip meter m
.
00000
TRIP ii
., n
U.U
Trip meter m
.
00000
3:33
Clock
18

Suzuki 2004 VL800 Specifications

General

Manufacturer	Suzuki
Model	VL800
Year	2004
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16
Rear Tire	170/80-15
Seat Height	700 mm (27.6 in)
Ground Clearance	140 mm (5.5 in)
Engine Type	4-stroke, liquid-cooled, 45° V-twin
Rear Suspension	oil damped
Overall Width	985 mm
Wheelbase	1, 655 mm
Curb Weight	246 kg
Category	Cruiser
