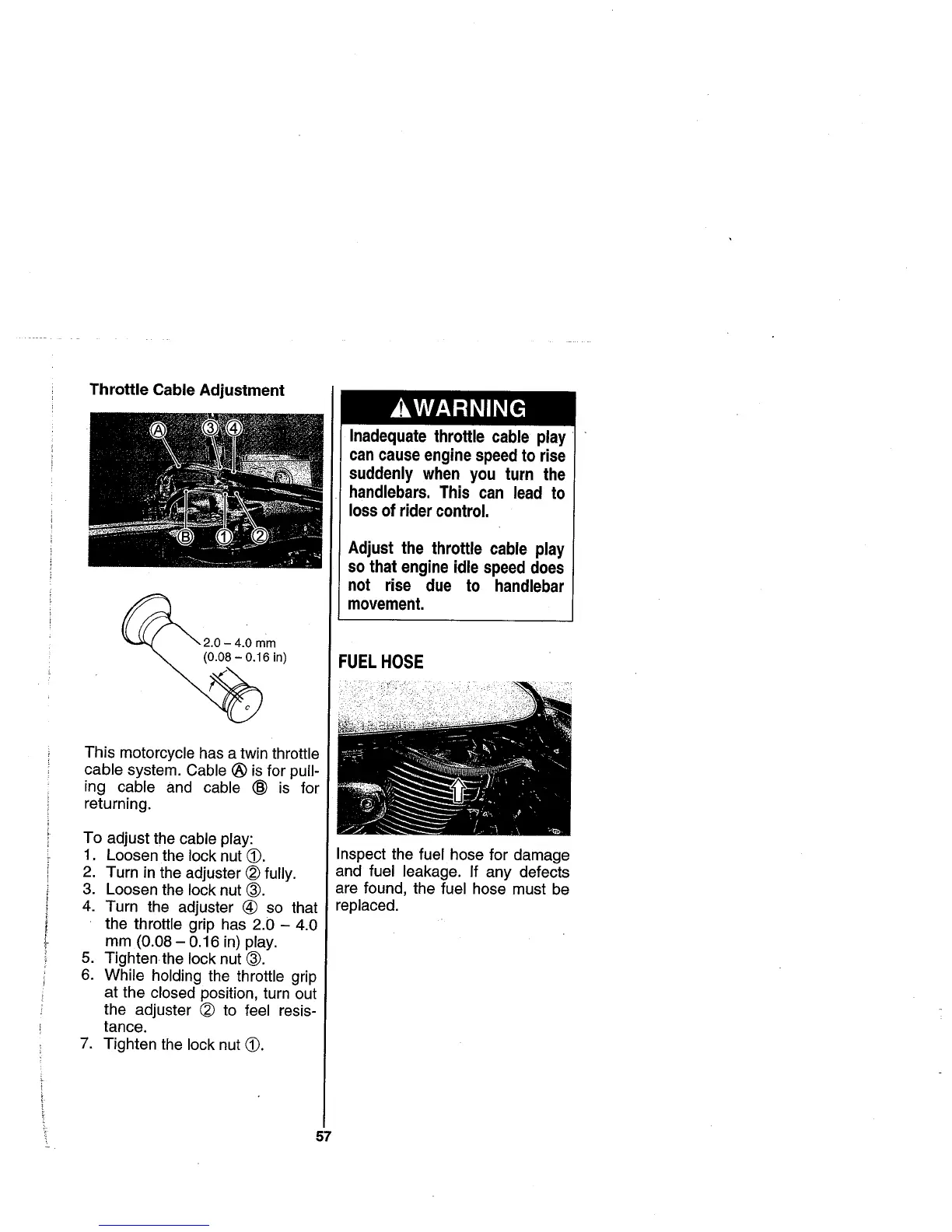

Throttle Cable Adjustment
This motorcycle has a twin throttle
cable system. Cable (l is for pull-
ing cable and cable (I is for
returning.
To adjust the cable play:
1. Loosen the lock nut CD.
2. Turn in the adjuster (2 fully.
3. Loosen the lock nut Q).
4. Turn the adjuster (4 so that
the throttle grip has 2.0 - 4.0
mm (0.08 - 0.16 in) play.
5. Tighten the lock nut Q).
6. While holding the throttle grip
at the closed position, turn out
the adjuster (2 to feel resis-
tance.
7. Tighten the lock nut CD.
Inadequate throttle cable play
can cause engine speed to rise
suddenly when you turn the
handlebars. This can lead to
loss of rider control.
Adjust the throttle cable play
so that engine idle speed does
not rise due to handlebar
movement.
FUEL HOSE
Inspect the fuel hose for damage
and fuel leakage. If any defects
are found, the fuel hose must be
replaced.
57

Suzuki 2004 VL800 Specifications

General

Manufacturer	Suzuki
Model	VL800
Year	2004
Displacement	805 cc
Bore x Stroke	83.0 mm x 74.4 mm
Compression Ratio	9.4:1
Ignition	Electronic ignition (transistorized)
Transmission	5-speed constant mesh
Final Drive	Shaft drive
Front Suspension	Telescopic, coil spring, oil damped
Front Brakes	Single disc brake
Rear Brakes	Drum brake
Front Tire	130/90-16
Rear Tire	170/80-15
Seat Height	700 mm (27.6 in)
Ground Clearance	140 mm (5.5 in)
Engine Type	4-stroke, liquid-cooled, 45° V-twin
Rear Suspension	oil damped
Overall Width	985 mm
Wheelbase	1, 655 mm
Curb Weight	246 kg
Category	Cruiser
