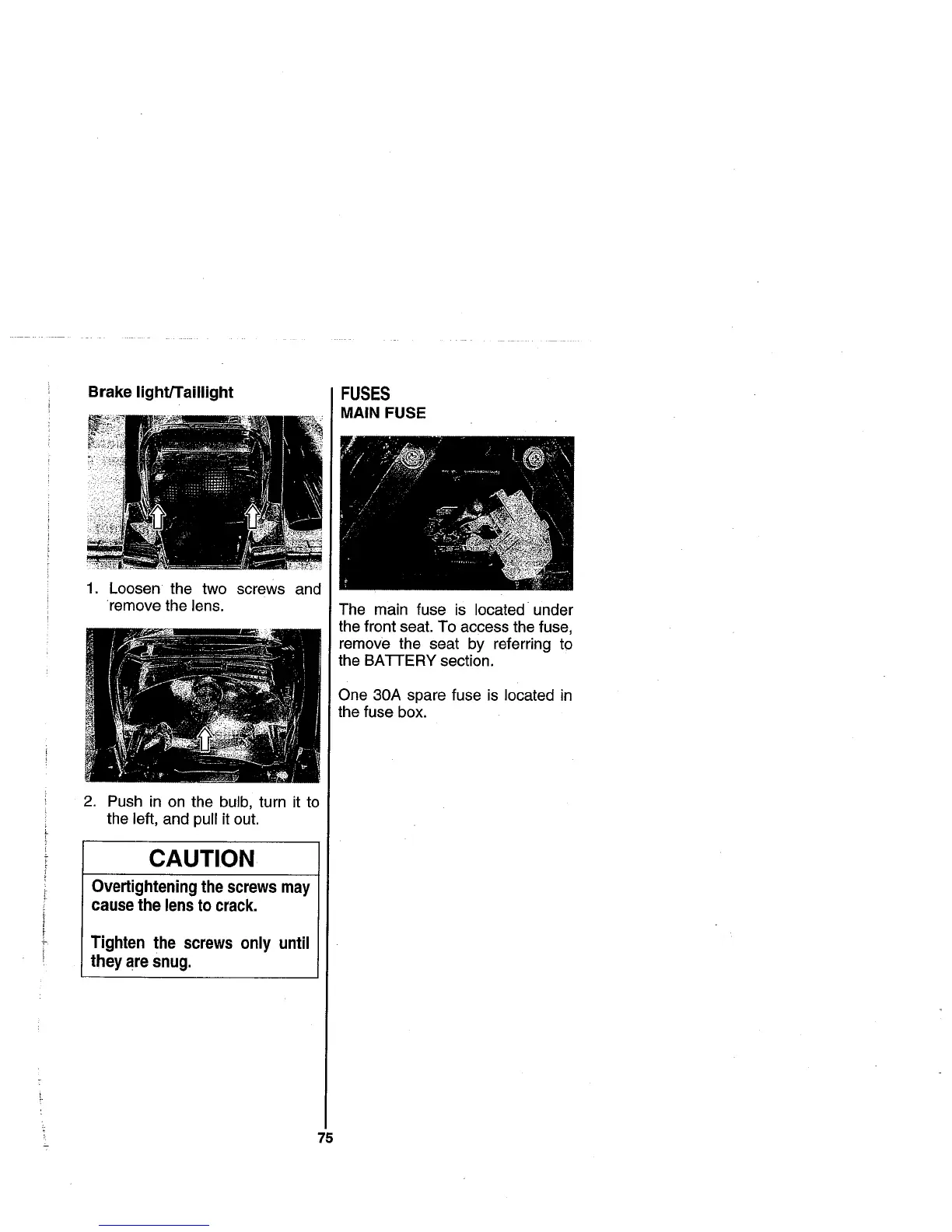

Brake Iightlailight
2. Push in on the bulb, turn it to
the left, and pull it out.
CAUTION
Overtightening the screws may
cause the lens to crack.
Tighten the screws only until
they are snug.
FUSES
MAIN FUSE
The main fuse is located. under
the front seat. To access the fuse,
remove the seat by referring to
the BATTERY section.
One 30A spare fuse is located in
the fuse box.
75

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Suzuki 2004 VL800 and is the answer not in the manual?

Suzuki 2004 VL800 Specifications

General IconGeneral
ManufacturerSuzuki
ModelVL800
Year2004
Displacement805 cc
Bore x Stroke83.0 mm x 74.4 mm
Compression Ratio9.4:1
IgnitionElectronic ignition (transistorized)
Transmission5-speed constant mesh
Final DriveShaft drive
Front SuspensionTelescopic, coil spring, oil damped
Front BrakesSingle disc brake
Rear BrakesDrum brake
Front Tire130/90-16
Rear Tire170/80-15
Seat Height700 mm (27.6 in)
Ground Clearance140 mm (5.5 in)
Engine Type4-stroke, liquid-cooled, 45° V-twin
Rear Suspensionoil damped
Overall Width985 mm
Wheelbase1, 655 mm
Curb Weight246 kg
